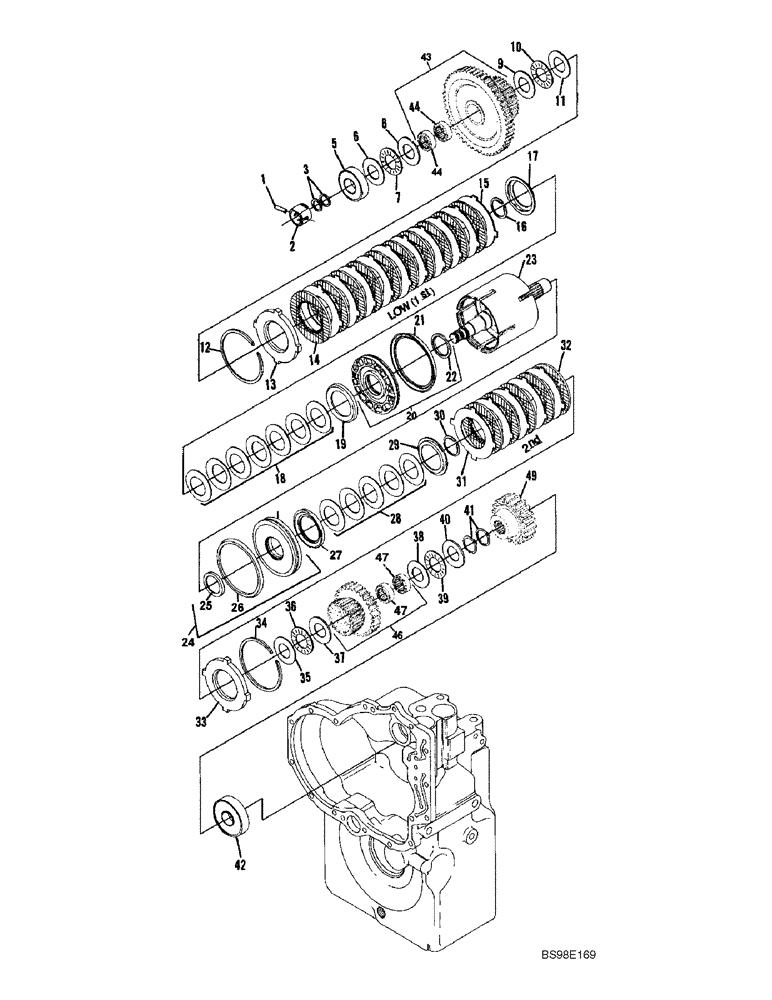

Запчасти Case 686G (6-42) - TRANSMISSION, FIRST AND SECOND CLUTCH (06) - POWER TRAIN

316219A1

TRANSMISSION

Complete

1шт.

For Models With Naturally Aspirated Engine

1шт.

Parts List On Figures 6-26 - 6-48

1шт.

317004A1

TRANSMISSION

Complete

1шт.

For Models With Turbocharged Engine

1шт.

Parts List On Figures 6-26 - 6-48

1шт.

686GXR P.I.N. JFE0001501 - JFE0001847

1шт.

688G P.I.N. JFE0003501 - JFE0003612

1шт.

449884A1

TRANSMISSION

Complete

1шт.

For Models With Turbocharged Engine

1шт.

Not Illustrated

1шт.

686GXR P.I.N. JFE0001848 And After

1шт.

688G P.I.N. JFE0003613 And After

1шт.

Component Parts Not Available At Time Of Printing

1шт.

1

317512A1

SCREW

1шт.

2

317532A1

SLEEVE

1шт.

3

317358A1

RING, PISTON

2шт.

5

317514A1

BEARING ASSY

1шт.

6

317340A1

THRUST WASHER

1шт.

7

317341A1

BALL BEARING

1шт.

8

317340A1

THRUST WASHER

1шт.

9

317340A1

THRUST WASHER

1шт.

10

317341A1

BALL BEARING

1шт.

11

317340A1

THRUST WASHER

1шт.

12

317342A1

RING, SNAP

RING SNAP

1шт.

13

317343A1

PLATE

1шт.

14

317344A1

DISC

10шт.

15

317345A1

DISC

10шт.

16

317346A1

RING, SNAP

RING SNAP

1шт.

17

317348A1

RETAINER

1шт.

18

317534A1

SPRING

Set of 7

1шт.

19

317351A1

WEAR PLATE

1шт.

20

317536A1

PISTON

PISTON - clutchclutch

1шт.

Incl. 21 - 22

1шт.

21

317353A1

SEAL

Outer

1шт.

22

317354A1

SEAL

Inner

1шт.

23

317537A1

PLUG

1шт.

24

317536A1

PISTON

1шт.

Incl. 25, 26

1шт.

25

317354A1

SEAL

Inner

1шт.

26

317353A1

SEAL

Outer

1шт.

27

317351A1

WEAR PLATE

1шт.

28

317349A1

SPRING WASHER

Set of 5

1шт.

29

317348A1

RETAINER

1шт.

30

317346A1

RING, SNAP

RING SNAP

1шт.

31

317345A1

DISC

5шт.

32

317344A1

DISC

5шт.

33

317343A1

PLATE

1шт.

34

317342A1

RING, SNAP

RING SNAP

1шт.

35

317340A1

THRUST WASHER

1шт.

36

317341A1

BALL BEARING

1шт.

37

317340A1

THRUST WASHER

1шт.

38

317340A1

THRUST WASHER

1шт.

39

317341A1

BALL BEARING

1шт.

40

317340A1

THRUST WASHER

1шт.

41

317515A1

RING, SNAP

RING SNAP

2шт.

42

317538A1

BALL BEARING

1шт.

43

317541A1

BEARING ASSY

Gear Assy, First Clutch

1шт.

Incl. 44

1шт.

44

REF

INSTRUCTION

Bearing, Gear

2шт.

46

317542A1

BEARING ASSY

Gear Assy, Second Clutch

1шт.

Incl. 47

1шт.

47

REF

INSTRUCTION

Bearing

2шт.

49

317633A1

GEAR

Third Driven, For Models With Turbocharged Engine

1шт.

49

317543A1

GEAR

Third Driven, For Models With Naturally Aspirated Engine

1шт.
