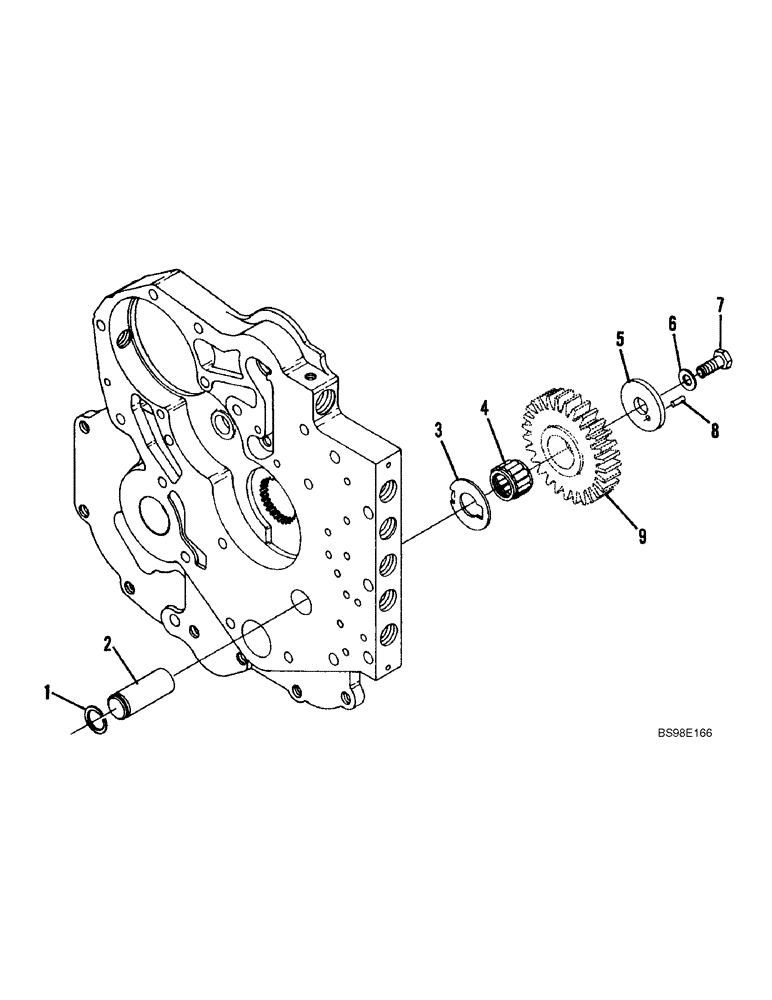

Запчасти Case 686G (6-36) - TRANSMISSION, REVERSE IDLER GEAR (06) - POWER TRAIN

316219A1

TRANSMISSION

Complete

1шт.

For Models With Naturally Aspirated Engine

1шт.

Parts List On Figures 6-26 - 6-48

1шт.

317004A1

TRANSMISSION

Complete

1шт.

For Models With Turbocharged Engine

1шт.

Parts List On Figures 6-26 - 6-48

1шт.

686GXR P.I.N. JFE0001501 - JFE0001847

1шт.

688G P.I.N. JFE0003501 - JFE0003612

1шт.

449884A1

TRANSMISSION

Complete

1шт.

For Models With Turbocharged Engine

1шт.

Not Illustrated

1шт.

686GXR P.I.N. JFE0001848 And After

1шт.

688G P.I.N. JFE0003613 And After

1шт.

Component Parts Not Available At Time Of Printing

1шт.

1

317335A1

RING, SNAP

RING SNAP

1шт.

2

317336A1

SHAFT

Idler and Pilot

1шт.

3

317337A1

THRUST WASHER

1шт.

4

317338A1

BALL BEARING

1шт.

5

317172A1

PLATE

1шт.

6

317193A1

WASHER

1шт.

7

317194A1

SCREW

1шт.

8

317195A1

PIN, ROLL

1шт.

9

317339A1

GEAR

Reverse Idler

1шт.
