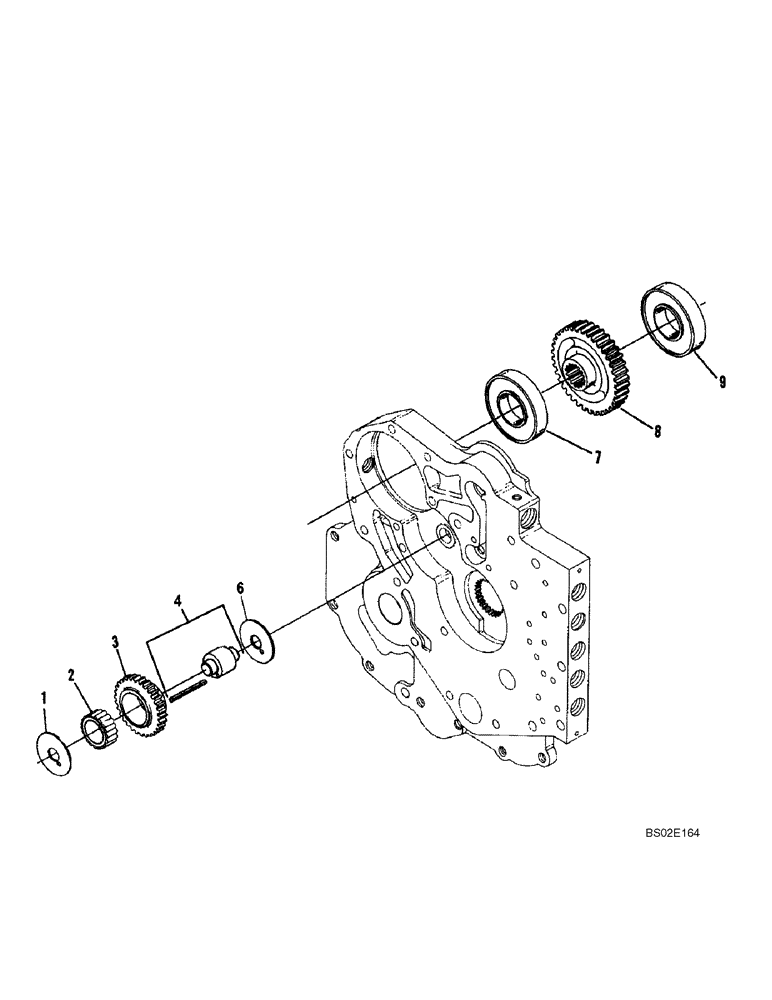

Запчасти Case 686G (6-32) - TRANSMISSION, PUMP DRIVE AND IDLER GEARS (06) - POWER TRAIN

316219A1

TRANSMISSION

Complete

1шт.

For Models With Naturally Aspirated Engine

1шт.

Parts List On Figures 6-26 - 6-48

1шт.

317004A1

TRANSMISSION

Complete

1шт.

For Models With Turbocharged Engine

1шт.

Parts List On Figures 6-26 - 6-48

1шт.

686GXR P.I.N. JFE0001501 - JFE0001847

1шт.

688G P.I.N. JFE0003501 - JFE0003612

1шт.

449884A1

TRANSMISSION

Complete

1шт.

For Models With Turbocharged Engine

1шт.

Not Illustrated

1шт.

686GXR P.I.N. JFE0001848 And After

1шт.

688G P.I.N. JFE0003613 And After

1шт.

Component Parts Not Available At Time Of Printing

1шт.

1

317209A1

THRUST WASHER

1шт.

2

317210A1

BALL BEARING

1шт.

3

317211A1

GEAR

Idler, 34 Teeth, Pump Drive

1шт.

4

317212A1

SHAFT

1шт.

Incl. 4A

1шт.

4a

317213A1

PIN, ROLL

1шт.

Not Illustrated

1шт.

6

317209A1

THRUST WASHER

1шт.

7

317214A1

BALL BEARING

1шт.

8

317215A1

GEAR

34 Teeth

1шт.

9

317216A1

BALL BEARING

1шт.
