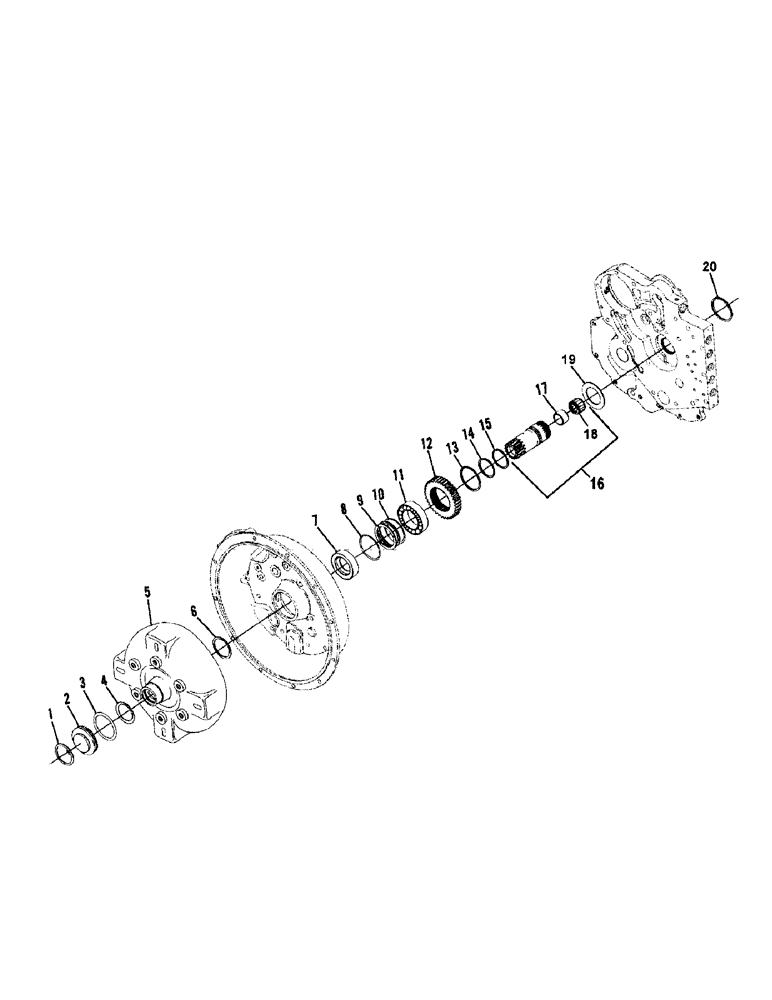

Запчасти Case 686G (6-30) - TRANSMISSION, CONVERTER AND RELATED PARTS (06) - POWER TRAIN

316219A1

TRANSMISSION

Complete

1шт.

For Models With Naturally Aspirated Engine

1шт.

Parts List On Figures 6-26 - 6-48

1шт.

317004A1

TRANSMISSION

omplete

1шт.

For Models With Turbocharged Engine

1шт.

Parts List On Figures 6-26 - 6-48

1шт.

686GXR P.I.N. JFE0001501 - JFE0001847

1шт.

688G P.I.N. JFE0003501 - JFE0003612

1шт.

449884A1

TRANSMISSION

Complete

1шт.

For Models With Turbocharged Engine

1шт.

Not Illustrated

1шт.

686GXR P.I.N. JFE0001848 And After

1шт.

688G P.I.N. JFE0003613 And After

1шт.

Component Parts Not Available At Time Of Printing

1шт.

1

309369A1

SNAP RING

1шт.

2

309189A1

PLUG

1шт.

3

314106A1

O-RING

1шт.

4

317196A1

RING, SNAP

RING SNAP

1шт.

5

317591A1

CONVERTER

1шт.

For Models With Turbocharged Engine

1шт.

5

317198A1

CONVERTER

1шт.

For Models With Naturally Aspirated Engine

1шт.

6

317196A1

RING, SNAP

RING SNAP

1шт.

7

317199A1

SEAL

1шт.

8

317200A1

O-RING

1шт.

9

317201A1

RING

1шт.

10

317200A1

O-RING

1шт.

11

317202A1

BALL BEARING

1шт.

12

317203A1

GEAR

Impeller Hub, 35 teeth

1шт.

13

317204A1

RING, SNAP

RING SNAP

1шт.

14

317205A1

RING, PISTON

1шт.

15

317206A1

RING

1шт.

16

317207A1

SUPPORT ASSY.

1шт.

19

317208A1

WASHER

1шт.

20

317204A1

RING, SNAP

RING SNAP

1шт.
