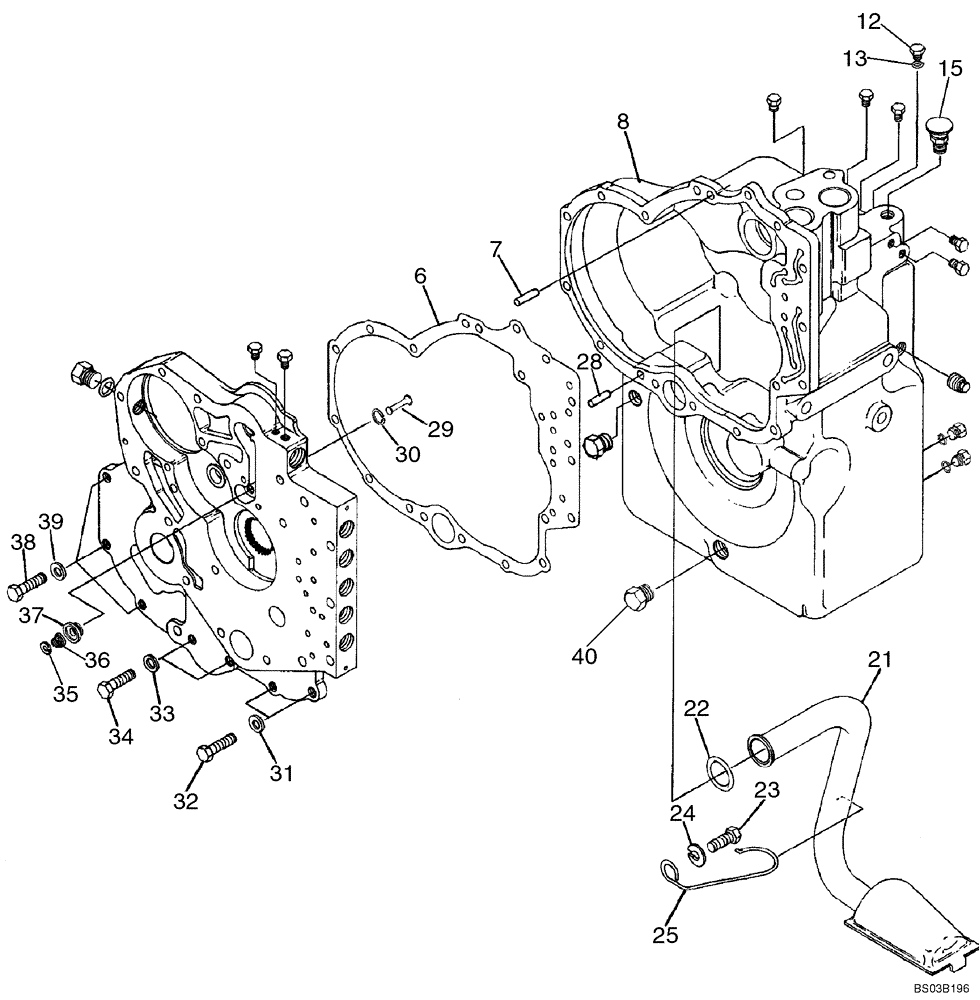

Запчасти Case 686G (6-28) - TRANSMISSION, HOUSING AND RELATED PARTS (06) - POWER TRAIN

316219A1

TRANSMISSION

Complete

1шт.

For Models With Naturally Aspirated Engine

1шт.

Parts List On Figures 6-26 - 6-48

1шт.

317004A1

TRANSMISSION

Complete

1шт.

For Models With Turbocharged Engine

1шт.

Parts List On Figures 6-26 - 6-48

1шт.

686GXR P.I.N. JFE0001501 - JFE0001847

1шт.

688G P.I.N. JFE0003501 - JFE0001612

1шт.

449884A1

TRANSMISSION

Complete

1шт.

For Models With Turbocharged Engine

1шт.

Not Illustrated

1шт.

686GXR P.I.N. JFE0001848 And After

1шт.

688G P.I.N. JFE0003613 And After

1шт.

Component Parts Not Available At Time Of Printing

1шт.

1

317164A1

SENSOR

1шт.

Not Illustrated

1шт.

3

317165A1

PLATE, SPACER

PLATE,SPACER

1шт.

Not Illustrated

1шт.

6

317166A1

GASKET

1шт.

7

317167A1

DOWEL

1шт.

8

317169A1

CASE

1шт.

15

309201A1

BREATHER

1шт.

18

317182A1

PLUG

1шт.

Not Illustrated

1шт.

21

317183A1

TUBE

1шт.

22

317184A1

SEAL

1шт.

23

317587A1

SCREW

1шт.

Incl. 23A

1шт.

23a

317588A1

SEALING WASHER

SEAL WASHER

1шт.

Not Illustrated

1шт.

24

317589A1

WASHER

1шт.

Incl. 24A

1шт.

24a

317327A1

NUT

1шт.

Not Illustrated

1шт.

25

317590A1

RETAINER

1шт.

28

317167A1

DOWEL

1шт.

29

317185A1

VALVE

1шт.

30

317187A1

RING, SNAP

RING SNAP

1шт.

31

317160A1

LOCK WASHER

2шт.

32

317188A1

SCREW

2шт.

33

317160A1

LOCK WASHER

2шт.

34

317189A1

SCREW

2шт.

35

317190A1

WASHER

1шт.

36

317191A1

VALVE SPRING

1шт.

37

317192A1

SEAT, VALVE

1шт.

38

317188A1

SCREW

5шт.

39

317160A1

LOCK WASHER

5шт.

40

447197A1

MAGNETIC PLUG

Drain

1шт.
