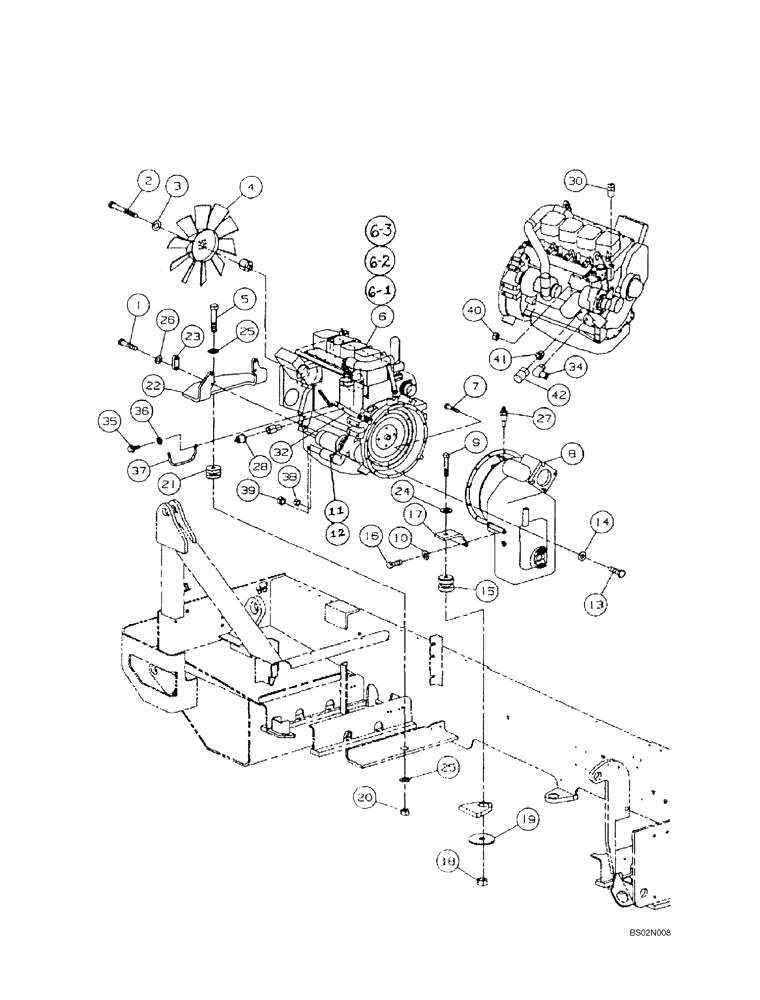

Запчасти Case 686G (2-04) - ENGINE MOUNTING - TURBO (ASN 686G JFE0000662; BTW 686GXR JFE0001701 - 1848; 688G JFE0003500 - 3613) (02) - ENGINE

1

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

2

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

4шт.

3

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

4шт.

4

318332A1

FAN

Turbocharged Engine

1шт.

5

426-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8

3/4 x 3-3/4

1шт.

6

REF

INSTRUCTION

Engine Assy, Complete

1шт.

4T-390 Emissions Certified

1шт.

See 2-56 For Complete Engine Assy Part Number

1шт.

Incl. 6A - 6C

1шт.

6a

J934429

ENGINE OIL FILTER

Engine Oil

1шт.

6b

J286503

FUEL FILTER

Fuel

1шт.

6c

316974A1

FILTER, FUEL

Fuel, In-line

1шт.

7

428-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 8

3/8 x 1-3/4

8шт.

8

317004A1

TRANSMISSION

Turbo Engine

1шт.

See Figure 6-24

1шт.

9

426-1476

BOLT,Hex, 7/8" - 9 x 4-3/4", Gr 8

7/8 x 4-3/4

2шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

11

314282A1

STARTING MOTOR

Turbo

1шт.

See Figure 2-78

1шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

13

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

11шт.

14

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

11 x 21 x 2.5

11шт.

15

316230A1

BUSHING

2шт.

16

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

17

316252A1

BRACKET

Transmission Mounting

2шт.

18

359564A1

NUT

2шт.

19

316247A1

WASHER

Transmission Snubbing

2шт.

20

359565A1

NUT

1шт.

21

316315A1

MOUNTING PARTS

Shock

1шт.

22

316304A1

PLATE

Engine Mounting

1шт.

23

359563A1

SPACER

2шт.

24

495-11094

WASHER,7/8", SAE

15/16 x 1-3/4 x 1/8

2шт.

25

359561A1

WASHER

1шт.

26

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

27

316313A1

SENDER UNIT

SENDER Temperature

1шт.

28

316209A1

SENDER UNIT

SENDER Oil Pressure

1шт.

30

309998A1

TEMPERATURE SENDER

1шт.

32

REF

INSTRUCTION

Throttle Assy

1шт.

34

316211A1

ELBOW

1шт.

35

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

36

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

13.5 x 24 x 3

1шт.

37

316242A1

STRAP

1шт.

38

825-1405

NUT,M5, Cl 8

1шт.

39

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

40

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

41

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

1шт.

42

359673A1

SWITCH

Engine Oil Pressure

1шт.

43

356720A1

STRAP

Tie

1шт.
