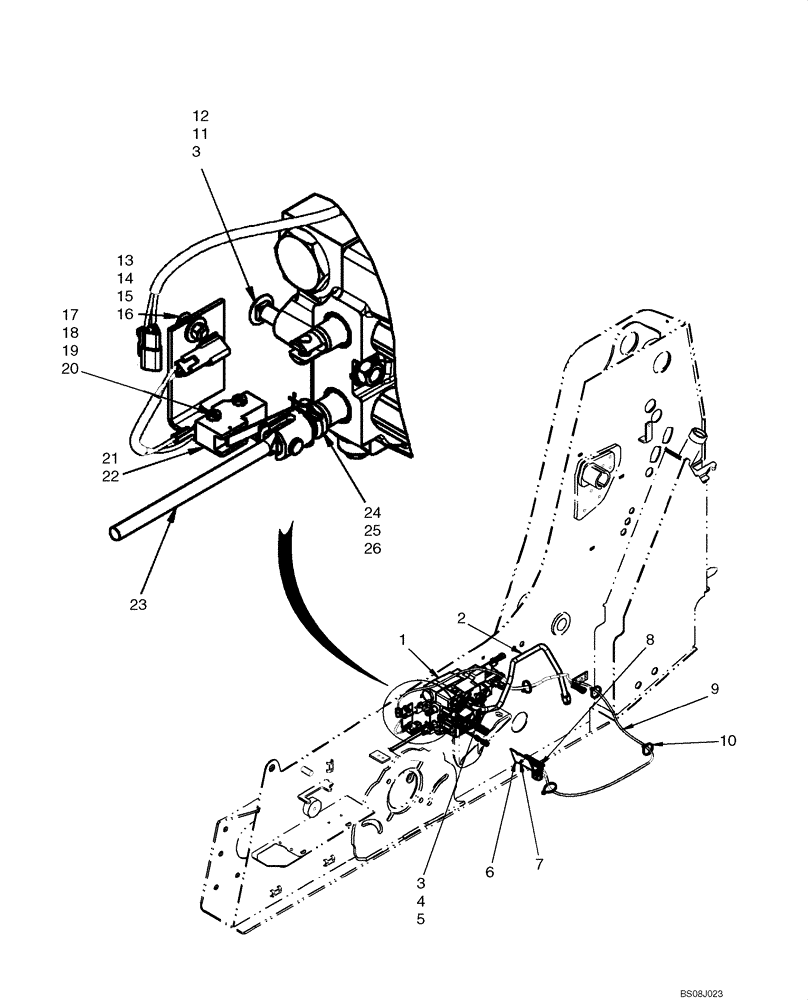

Запчасти Case 95XT (08-02B) - HYDRAULICS - SELF-LEVELING; IF USED (08) - HYDRAULICS

1

413372A3

VALVE

Self Leveling; Replaces 413372A2; See Figure 08-01, 08-02

1шт.

1

87431794

VALVE

Self Leveling; Replaces 413372A3; See Figure 08-01, 08-02

1шт.

2

426974A1

TUBE

Valve Lift (Lower)

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

4

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

5

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

M10 x 1.5

1шт.

6

429082A1

ANGLE

Mounting

1шт.

7

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

1шт.

8

411173A1

SWITCH

Rocker; Self Level

1шт.

9

419759A1

HARNESS

1шт.

10

529070

CABLE TIE,368.3mm L

CABLE STRAP

4шт.

11

832-41410

NUT,M10 x 1.5, Cl 10

1шт.

12

811-10110

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 110mm, Cl 8.8

1шт.

13

444935A2

ANGLE

Switch Mounting; Replaces 419096A1

1шт.

14

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

15

832-41406

NUT,M6 x 1, Cl 8

M6

2шт.

16

811-6020

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8

2шт.

17

448853A1

CAPSCREW,Elevator, 1/4" - 20 x 38.1 mm, Gr 2, Full Thd

1/4 - 20

1шт.

18

425-104

NUT,1/4"-20, Cl 5

1шт.

19

193-1003

NUT,Keps, w/LW,#6-32

2шт.

20

H435814

U-BOLT

1шт.

21

447951A1

HARNESS

Bi-Directional Self Level Switch

1шт.

22

D137363

SWITCH

Limit, W/Roller; Bi- Directional Self Level

1шт.

23

417364A1

LINK

Rod, Valve Link

1шт.

24

430108A2

COLLAR

Replaces 430108A1

1шт.

25

427-5125

CLEVIS PIN,5/16" x 1 1/4"

2шт.

26

417860A1

COTTER PIN

1шт.
