Запчасти Case 95XT (07-02) - HYDRAULIC CIRCUIT, BRAKE (Dec 2 2009 4:08PM) (07) - BRAKES

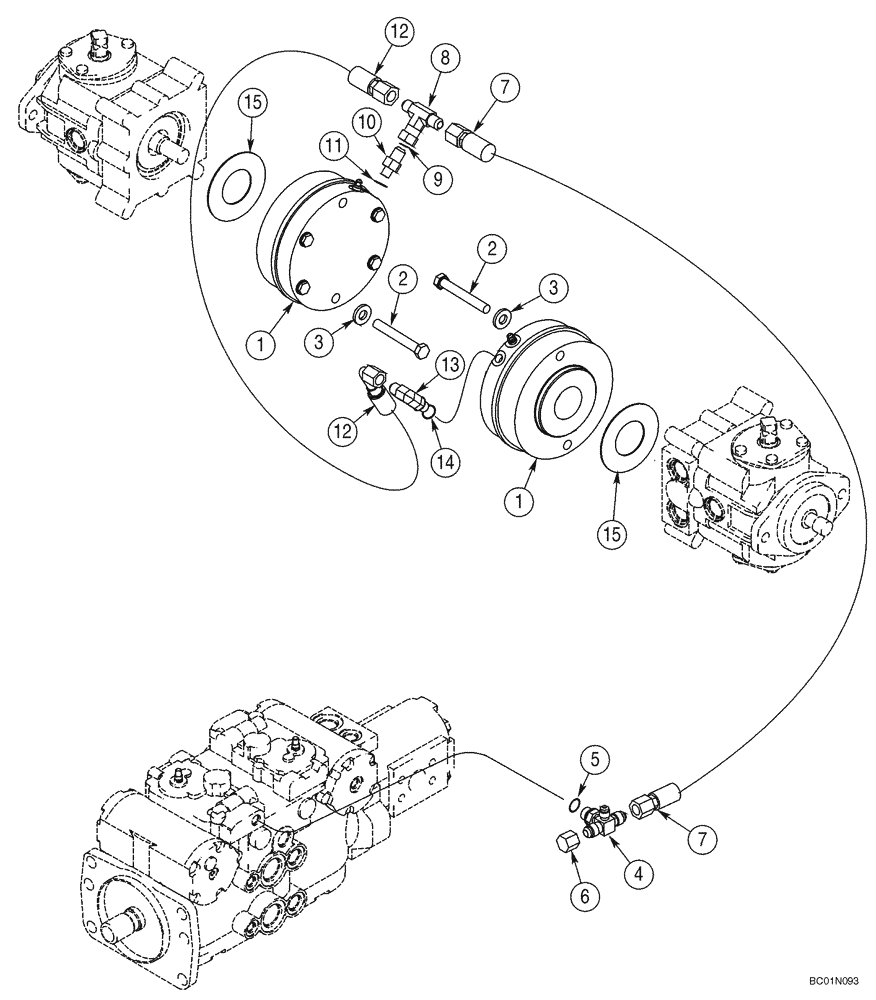

Схема запчастей Case 95XT - (07-02) - HYDRAULIC CIRCUIT, BRAKE (Dec 2 2009 4:08PM) (07) - BRAKES
12
14
12
11
2
8
13
15
7
15
3
7
5
4
10
1
2
3
6
9
1

Артикул

Название

Примечание

Количество

1

320892A1

BRAKE

6 Mounting Holes, See Figure 07-01; If Used

2шт.

1

446809A1

BRAKE

4 Mounting Holes, See Figure 07-01; If Used

2шт.

2

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

4

253266A1

TEE

Incl. 5

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

218-754

CAP,37 Degree, 9/16"-18

1шт.

7

430751A1

HOSE ASSY.

1115 mm (43-29/32 in); Pump To Brake; Left Hand

1шт.

8

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

9/16 x 18

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

1шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

12

430750A1

HOSE ASSY.

730 mm (28-3/4 in); Pump To Brake; Right Hand

1шт.

13

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. 14

1шт.

14

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

15

320891A1

GASKET,2.4mm Thk

1шт.

16

87431339

REPAIR KIT

Used With P/N 446809a1, Not Shown

1шт.

Выбрано товаров: 17
