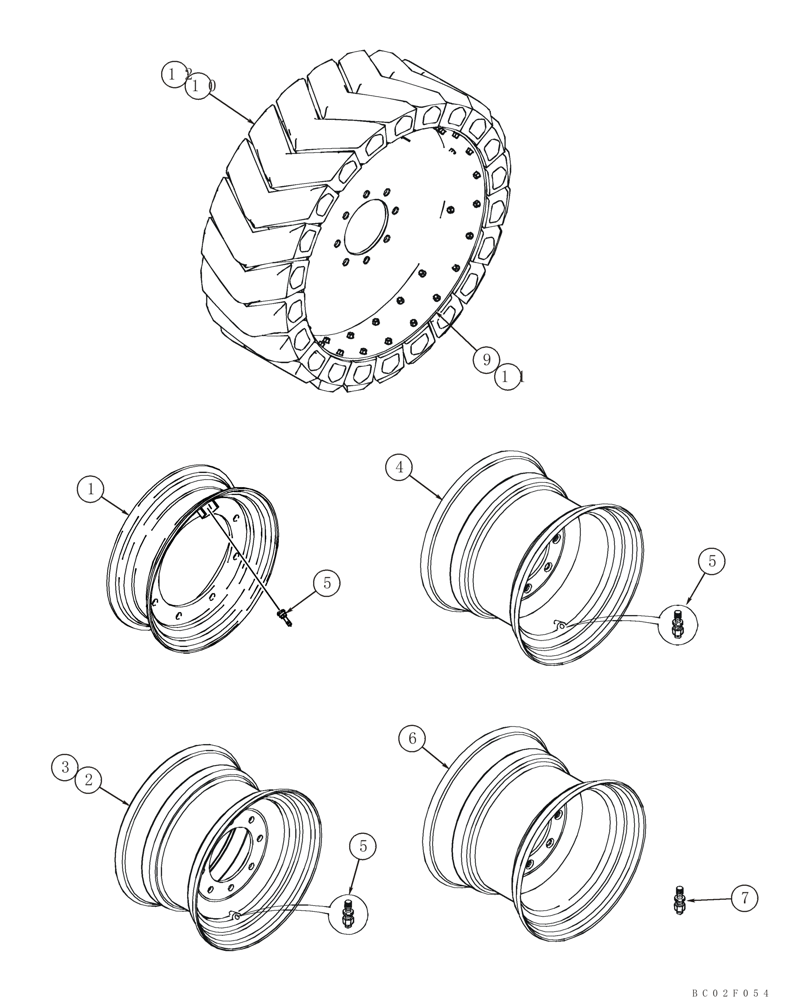

Запчасти Case 95XT (06-15) - WHEELS (Mar 14 2011 8:59AM) (06) - POWER TRAIN

1

255342A2

RIM

WHEEL 16 x 4.5; Used With 6 x 16 Inch Tire

4шт.

2

448569A1

WHEEL ASSY

16.5 x 9.75; Stamped Center; Used With 12 x 16.5 Inch Tire

4шт.

3

183300A3

RIM

WHEEL 16.5 x 9.75, Full Center; Used With 12 x 16.5 tire

4шт.

4

248048A2

RIM

WHEEL 16,5 x 12; Used With 33/15.50 x 16.5 Inch Tire

4шт.

5

294579A1

VALVE STEM

Used With 1, 2, 3, 4

4шт.

6

238584A1

RIM

WHEEL 12 x 16,5

4шт.

7

T57461

VALVE STEM

Use With 6

4шт.

8

372445A1

VALVE STEM

Use With 3

2шт.

9

294904A1

RIM

WHEEL 8.25 x 15; Left Hand; Contact Airboss Direct

2шт.

10

346266A1

SEGMENT

1шт.

11

294903A1

RIM

WHEEL 8.25 x 15; Right Hand; Contact Airboss Direct

1шт.

12

346266A1

SEGMENT

1шт.

408127A1

WHEEL NUT,Conical End Hex, M16 x 2.0, 14.80mm High, Cl 10

See Figure 06-15, Ref 2

32-64шт.
