Запчасти Case 95XT (02-11) - OIL PUMP, PAN - HEATER (Aug 26 2010 3:10PM) (02) - ENGINE

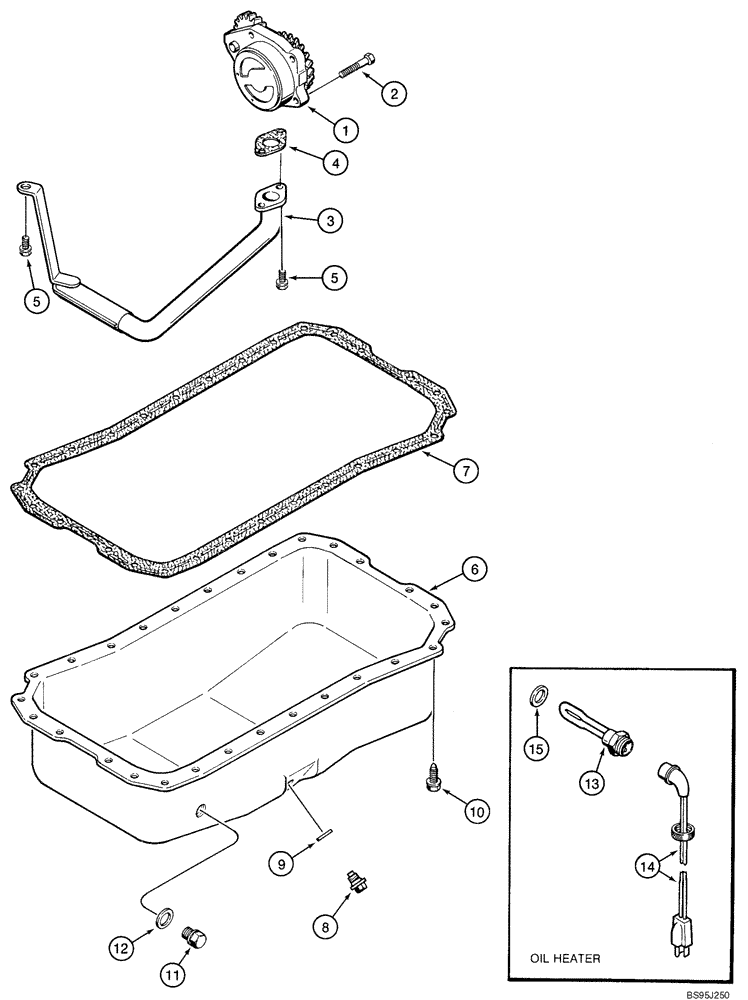

Схема запчастей Case 95XT - (02-11) - OIL PUMP, PAN - HEATER (Aug 26 2010 3:10PM) (02) - ENGINE
3
4
6
11
1
12
8
9
5
13
10
5
14
15
7
2

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

4T-390 EMISSIONS CERTIFIED ENGINES

1шт.

1

J937027

PUMP, ENGINE OIL

1шт.

JR937027

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. Only

1шт.

JC937027

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J905223

TUBE

1шт.

4

J938157

GASKET,1.2mm Thk

Mounting

1шт.

5

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

6

J907570

PAN

Oil

1шт.

7

NSS

NOT SOLD SEPARAT

Seal

1шт.

8

J924147

PLUG,M18 x 1.5

M18

1шт.

9

J920773

SEALING WASHER

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

28шт.

11

J924148

PLUG,M22 x 1.5

M22

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

A77673

GASKET KIT

Incl. 4, 7, 9

1шт.

REF

INSTRUCTION

120 VOLT; ENGINE OIL HEATER

1шт.

A77490

KIT

Incl. 13, 14; Order J902425

1шт.

13

NSS

NOT SOLD SEPARAT

Element

1шт.

14

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

REF

INSTRUCTION

240 VOLT; EUROPE ONLY

1шт.

13

J285916

HEATER

1шт.

14

J905114

ELECTRIC CABLE

1829 mm (72 in)

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

Выбрано товаров: 27
