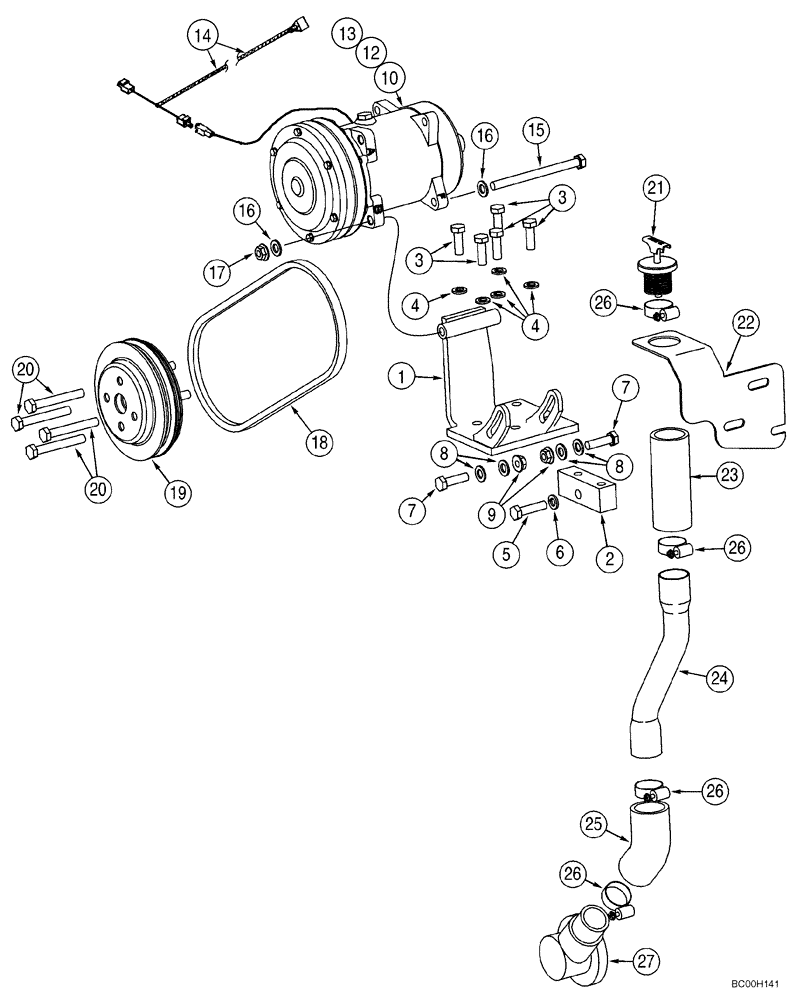

Запчасти Case 95XT (09-37B) - AIR CONDITIONING SYSTEM (MAR 18 2011 11:56AM) (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
356319A1
SUPPORT
Compressor Mounting
1шт.
2
356694A1
SUPPORT
1шт.
4
892-11010
LOCK WASHER,M10
5шт.
6
892-11010
LOCK WASHER,M10
1шт.
7
627-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd
2шт.
8
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
4шт.
9
829-2310
FLANGE NUT,M10 x 1.5, Flg, Cl 10
2шт.
10
1999755C3
COMPRESSOR
Replaces 1999755C2; Incl. 11 - 13
1шт.
10
86993462R
REMAN-COMPRESSOR
85XT ASN JAF0352234 (NA) JAF0352715 (EU), 90XT ASN JAF0320050 (NA) JAF0274262 (EU), 95XT ASN JAF0311357 (NA) JAF0274360 (EU); Reman For New P/N 1999755C3
1шт.
10
86993462C
CORE-COMPRESSOR
Return Part Number
1шт.
10
48017123R
REMAN-A/C COMP KIT
Reman A/C Compressor, Receiver-Dryer, Valve Kit
1шт.
10
48017123C
REMAN-A/C COMP KIT
Return Part Number
1шт.
10
1999755C3R
REMAN-A/C COMPRESSOR
Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant
1шт.
10
1999755C3C
CORE-COMPRESSOR
Return Part Number
1шт.
11
135324A2
CLUTCH
Not Illustrated
1шт.
12
A49667
PLUG
1шт.
14
299078A1
HARNESS
See Figure 09-37A
1шт.
15
827-10130
BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9
1шт.
16
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
2шт.
17
829-2310
FLANGE NUT,M10 x 1.5, Flg, Cl 10
1шт.
18
359688A1
BELT,12.70 mm W
Compressor Drive
1шт.
19
196050A1
PULLEY
Compressor Drive
1шт.
20
827-10075
BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9
4шт.
21
195964A1
PLUG
Oil Fill
1шт.
22
249375A1
SUPPORT
Oil Fill
1шт.
23
359643A1
HOSE,38.00 mm ID x 120.00 mm, SAE J30 30R6
Oil Fill; Upper
1шт.
24
359641A1
PIPE
Oil Fill; Middle
1шт.
25
359644A1
HOSE,38.00 mm ID x 90.00 mm, SAE J30 30 R6
Oil Fill; Lower
1шт.
26
214-1428
HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm
4шт.
27
J924595
CONNECTOR, ELEC
CONNECTOR Oil Fill
1шт.
3
627-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd
5шт.
Выбрано товаров: 33
