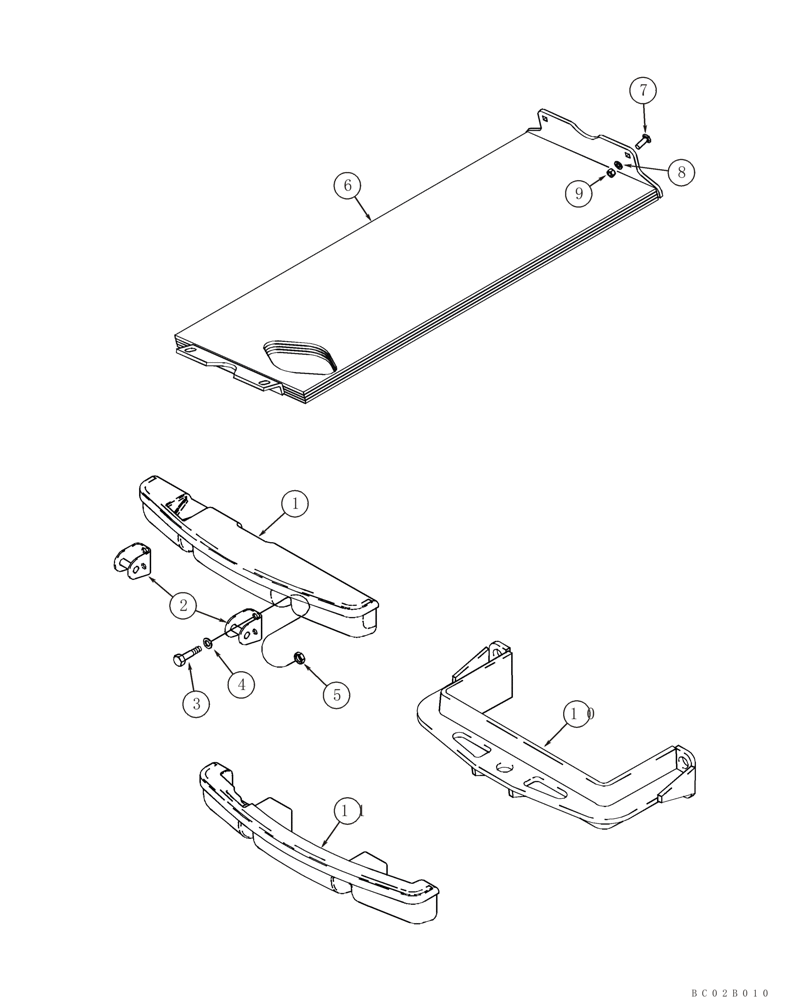

Запчасти Case 95XT (09-20) - COUNTERWEIGHTS - DRAWBAR (09) - CHASSIS

1

248143A1

BALANCER

Heavy; Bumper, Rear; Models Without Piston High Flow Hydraulics

1шт.

2

248938A1

SUPPORT

Models Without Drawbar; If Used

2шт.

3

827-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

4шт.

4

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

5

832-41320

NUT,M20 x 2.5, Cl 10

M20; 10.9

4шт.

6

192719A2

WEIGHT

Front; Replaces 192719A1

1шт.

7

811-16050

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 50mm, Cl 8.8

2шт.

8

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

9

832-41316

NUT,M16 x 2, Cl 10

2шт.

10

258483A1

DRAWBAR

If Equipped

1шт.

11

254617A1

BUMPER

Counterweight; Models With Piston High Flow Hydraulics; See Figures 08-14A - 08-14E

1шт.
