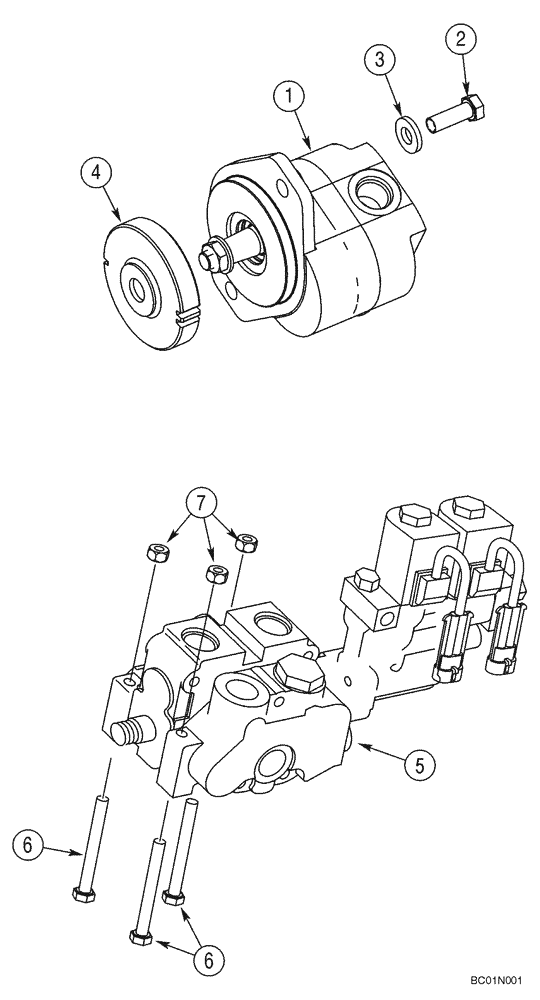

Запчасти Case 95XT (08-15) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS

REF

INSTRUCTION

GEAR PUMP AND CONTROL VALVE MOUNTING

1шт.

1

411822A1

PUMP, HYDRAULIC

Component Parts Not Serviced Separately

1шт.

2

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

3

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

4

J924187

PINION

1шт.

5

372194A2

VALVE

Control; See Figure 08-20

1шт.

6

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

3шт.

7

832-41408

NUT,M8 x 1.25, Cl 10

M8

3шт.
