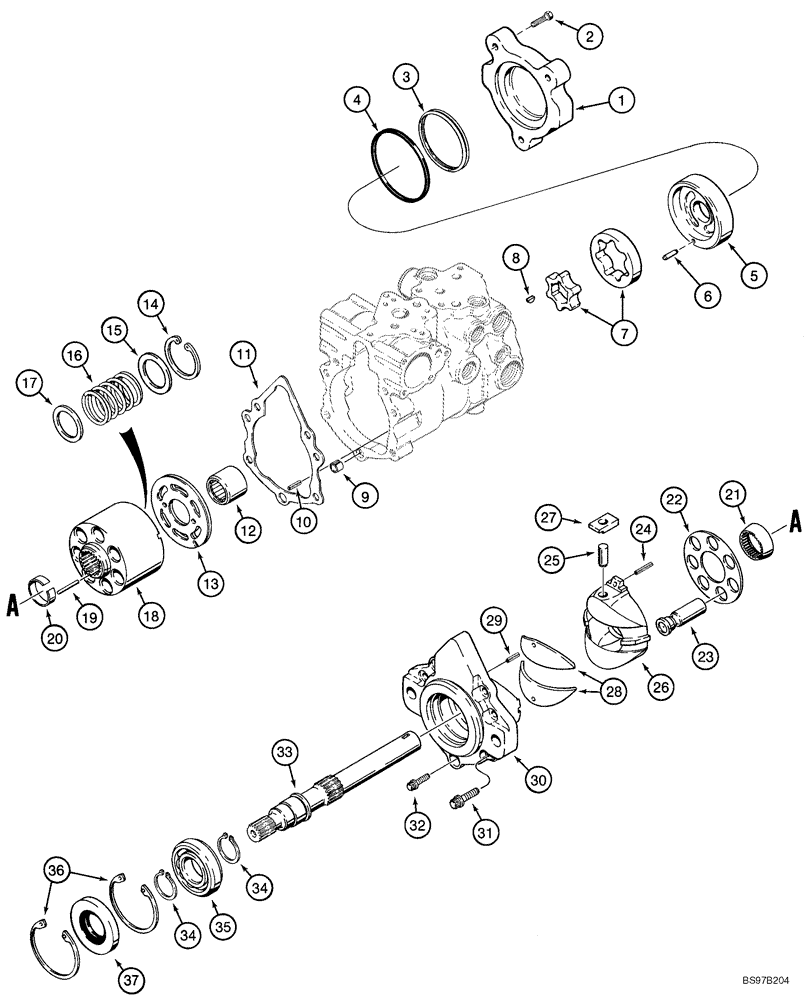

Запчасти Case 95XT (08-14H) - PUMP, PISTON (Aug 13 2010 12:45PM) (08) - HYDRAULICS

REF

INSTRUCTION

CYLINDER BLOCK AND SHAFT

1шт.

237637A3

PUMP, HYDRAULIC,46 CC

Incl. 1 - 27; Incl. 08-14F - 08-14G

1шт.

87298018

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

87298019

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

1

105721A1

COVER

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

3

NSS

NOT SOLD SEPARAT

Order 244908A1

1шт.

4

NSS

NOT SOLD SEPARAT

Order 244908A1

1шт.

5

105717A1

COVER

1шт.

6

181680A1

PIN,3/16" OD x 13/16" L

1шт.

7

105719A1

ROTOR ASSY.

1шт.

8

126-169

WOODRUFF KEY,#212, 3/32" x3/8"

1шт.

9

N13994

SPACER

1шт.

10

138-217

LOCK PIN,3/16" OD x 7/16" L, Slotted

1шт.

11

NSS

NOT SOLD SEPARAT

Order 244908A1

1шт.

12

1277297C1

NEEDLE BEARING

1шт.

13

128929A1

LARGE PLATE

PLATE, LARGE Inner

1шт.

115952A2

CYLINDER BLOCK

Incl. 14 - 23

1шт.

14

NSS

NOT SOLD SEPARAT

1шт.

15

115950A1

WASHER

1шт.

16

115948A1

SPRING

1шт.

17

115946A1

WASHER

1шт.

18

115944A2

CYLINDER BLOCK

1шт.

19

110873A1

PIN,2.38mm OD x 33.53mm L

3шт.

20

115943A1

SNAP RING

1шт.

21

115942A1

GUIDE

1шт.

22

NSS

NOT SOLD SEPARAT

1шт.

23

NSS

NOT SOLD SEPARAT

7шт.

178632A1

COVER

Incl. 24 - 26

1шт.

24

38-11612

LOCK PIN,1/4" x 3/4", Slotted

1/4" x 3/4", Slotted

1шт.

25

N13254

PIN

1шт.

26

NSS

NOT SOLD SEPARAT

1шт.

27

N13224

SLEEVE

1шт.

28

193488A1

BEARING LINER

2шт.

29

193494A1

PIN, ROLL

2шт.

30

H436703

COVER

1шт.

31

223677A1

SCREW,Torx, 7/16"

7/16 in

6шт.

32

223680A1

SPECIAL BOLT,Torx, 3/8"

3/8 in

1шт.

33

105718A1

SHAFT

1шт.

34

100-11137

SNAP RING,#137, Ext

2шт.

35

244900A1

ROLLER BEARING

1шт.

36

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

37

NSS

NOT SOLD SEPARAT

Order 244908A1

1шт.

244908A1

GASKET KIT

Incl. Figure 08-14F, Ref 3, 4, 10, 17; Incl. Figure 08-14G, Ref 7, 17 - 19, 28, 29, 31, 32; Incl. Figure 08-14H, Ref 3, 4, 11, 37

1шт.
