Запчасти Case 95XT (08-14F) - PUMP, PISTON (Aug 13 2010 12:43PM) (08) - HYDRAULICS

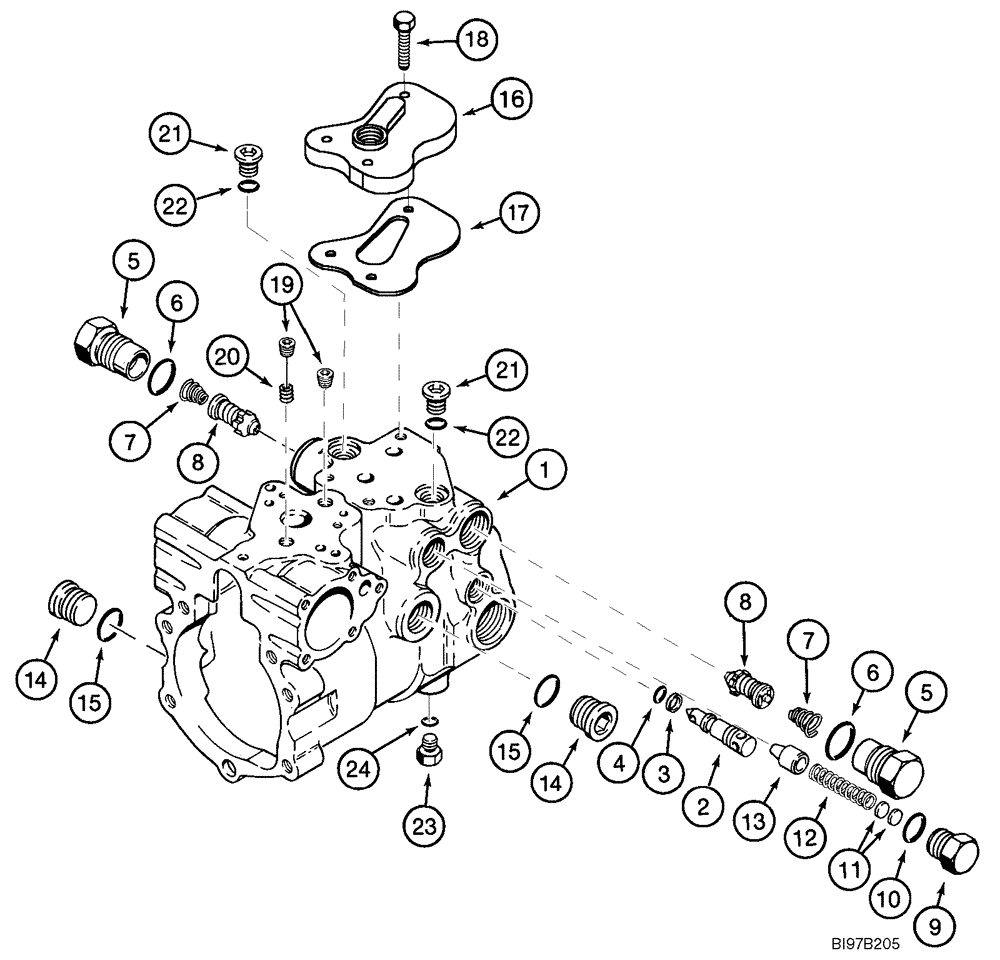

Схема запчастей Case 95XT - (08-14F) - PUMP, PISTON (Aug 13 2010 12:43PM) (08) - HYDRAULICS
23
3
2
21
22
4
10
20
7
12
15
13
15
17
1
14
5
18
8
22
14
21
19
7
6
11
9
5
16
24
8
6

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

HOUSING AND VALVES

1шт.

237637A3

PUMP, HYDRAULIC,46 CC

Incl. 1 - 24; Incl. 08 -14G - 08 -14H

1шт.

87298018

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

87298019

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

1

NSS

NOT SOLD SEPARAT

1шт.

2

H436099

VALVE

1шт.

3

NSS

NOT SOLD SEPARAT

Order 244908A1

1шт.

4

NSS

NOT SOLD SEPARAT

Order 244908A1

1шт.

H436101

VALVE POPPET

Incl. 5 - 8

2шт.

5

NSS

NOT SOLD SEPARAT

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

N14435

SPRING

1шт.

8

NSS

NOT SOLD SEPARAT

1шт.

9

N13266

PLUG

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Order 244908A1

1шт.

11

H407767

KIT

Shim

1шт.

12

244898A1

SPRING

1шт.

13

V38371

VALVE

1шт.

14

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

1-1/16 0r; Incl. 15

2шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

101462A1

ADAPTER

1шт.

17

NSS

NOT SOLD SEPARAT

Order 244908A1

1шт.

18

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

3шт.

19

F23137

PLUG

2шт.

20

281252A1

PORT

1шт.

21

76349

PLUG,9/16" - 18 ORB

Incl. 24

2шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

9672438

PLUG,7/16" - 20 ORB

Incl. 22

1шт.

24

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

244908A1

GASKET KIT

Incl. Figure 08-14F, Ref 3, 4, 10, 17; Incl. Figure 08-14G, Ref 7, 17 - 19, 28, 29, 31, 32; Incl. Figure 08-14H, Ref 3, 4, 11, 37

1шт.

Выбрано товаров: 30
