Запчасти Case 95XT (08-11) - CYLINDER - LOADER LIFT (45 MM DIA ROD) (08) - HYDRAULICS

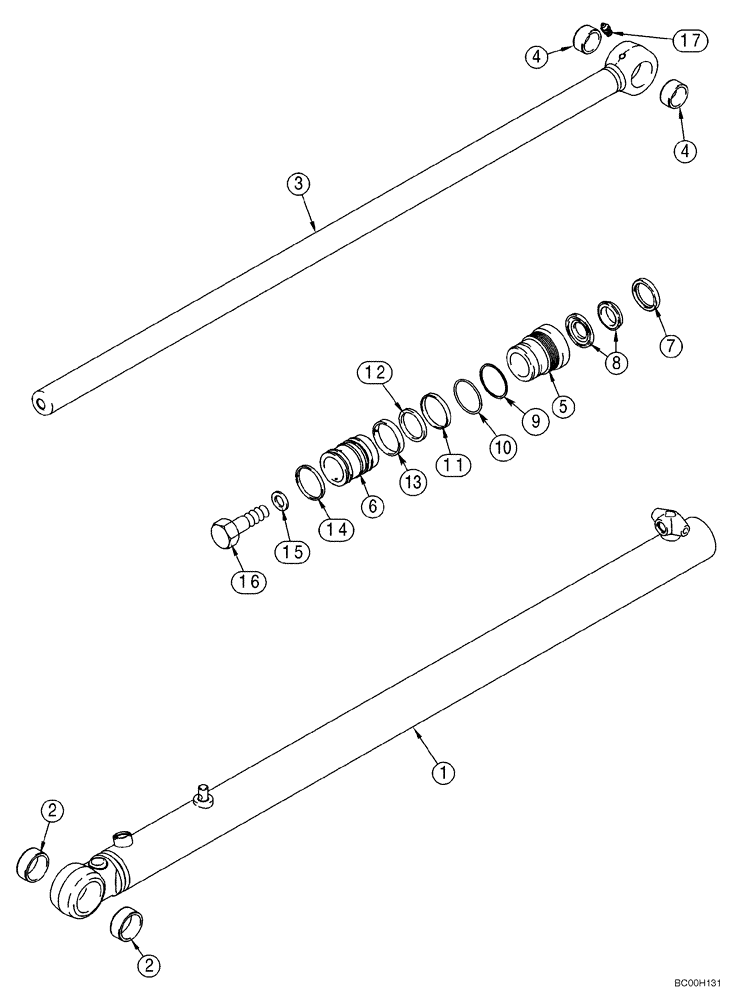

Схема запчастей Case 95XT - (08-11) - CYLINDER - LOADER LIFT (45 MM DIA ROD) (08) - HYDRAULICS
11
9
7
12
4
17
1
15
16
4
2
13
3
6
10
5
8
14
2

Артикул

Название

Примечание

Количество

139091A3

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1245mm Stroke

64 ID x 1245 mm strk, 45 mm dia rod; Loader Lift; Incl. 1 - 17; If Servicing This Cylinder Assembly With 300873A2 Service Option Cylinder, Ref Figure 08-11A, Replace As A Pair From The Original Cylinder (139091A3)

2шт.

139091A3R

REMAN-HYD CYLINDER

95XT ASN JAF0311357

2шт.

139091A3C

CORE-HYD CYLINDER

Return Number

2шт.

1

192265A2

HYD CYL SLEEVE

Incl. 2

1шт.

2

193552A1

BUSHING,45.19mm ID x 55mm OD x 22mm L

2шт.

3

192267A1

PISTON ROD

Incl. 4

1шт.

4

141005A1

BUSHING,35.19mm ID x 45mm OD x 22mm L

2шт.

5

279415A2

GLAND

Packing

1шт.

6

193977A1

JACK PISTON

1шт.

198376A2

SEAL KIT

Incl. 7 - 14

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

8

1542875C1

SEAL KIT,44.4mm Rod

Not Serviced Separately; Rod and Buffer Seal; Order 198376A2

1шт.

9

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

1шт.

10

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

11

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

Piston

1шт.

12

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

Loader

1шт.

13

G100714

RING

1шт.

14

191319A1

RING

Cast Iron

1шт.

15

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

16

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

Replaces 28-1240

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

Выбрано товаров: 21
