(04-20) - SEAT BAR HARNESS (NORTH AMERICA JAF0311357- / EUROPE JAF0274360-)

Запчасти Case 95XT (04-20) - SEAT BAR HARNESS (NORTH AMERICA JAF0311357- / EUROPE JAF0274360-) (04) - ELECTRICAL SYSTEMS

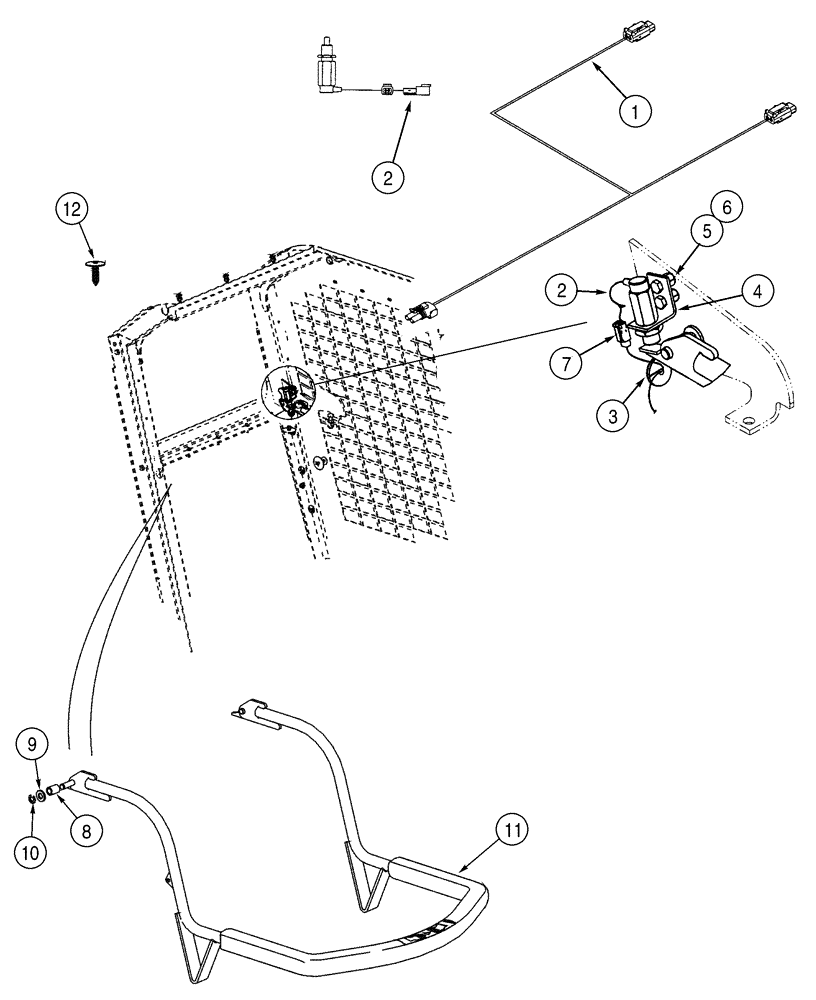

Схема запчастей Case 95XT - (04-20) - SEAT BAR HARNESS (NORTH AMERICA JAF0311357- / EUROPE JAF0274360-) (04) - ELECTRICAL SYSTEMS
2
1
12
2
3
6
5
8
9
10
4
11
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

321390A1

HARNESS

Seat Bar, Interlock

1шт.

2

313329A1

SWITCH

Seat Bar, Interlock

2шт.

333743A2

CONNECTION,ELECTRIC

Kit, Installation, Seat Bar, Consists Of 2- 13

1шт.

2

313329A1

SWITCH

Seat Bar, Interlock

1шт.

3

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

Interlock; No Longer Used, Order 87530614

1шт.

3

87530614

GROMMET

1шт.

4

334243A1

SUPPORT

1шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

7

337646A1

HARNESS

1шт.

8

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

See Page(s) 9-101, 9-105

2шт.

9

496-21053

WASHER,17/32" x 1 1/16" x .134"

See Page(s) 9-101, 9-105

2шт.

10

D143415

SNAP RING,0.50” ID, Klipring

1/2, See Page(s) 9-101, 9-105

2шт.

11

419844A1

BAR

See Page(s) 9-101, 9-105

1шт.

12

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

See Page(s) 9-115

8шт.
