Запчасти Case 95XT (04-02) - ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

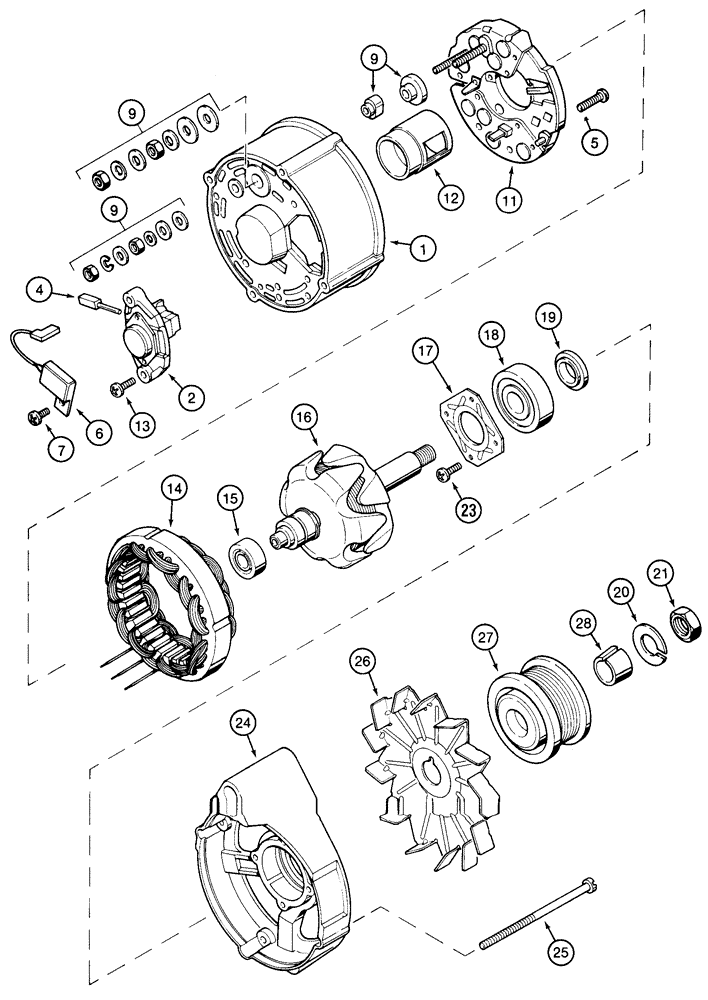

Схема запчастей Case 95XT - (04-02) - ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS
17
7
23
9
26
9
21
28
11
25
16
5
14
15
9
20
24
6
4
1
12
19
13
2
27
18

Артикул

Название

Примечание

Количество

A187873

ALTERNATOR,12V, 65A

12V, 65 amp, Consists Of 1 - 25

1шт.

AR187873

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

AC187873

CORE-ALTERNATOR

Return number

1шт.

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

1

A187903

COVER

1шт.

2

A187906

VOLTAGE REGULATOR

1шт.

4

1964968C1

COMMUTATOR BRUSH

Set of 2

1шт.

5

1530431C1

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8, W/ Wshr

With Washer

2шт.

6

3079134R1

CAPACITOR

1шт.

7

1964969C1

SCREW

1шт.

9

A187904

MULTIPOLE CONNECTOR

Terminal Connecting Parts

1шт.

11

A187917

RECTIFIER

1шт.

12

A187899

INNER SHIELD

1шт.

13

A187504

SCREW

2шт.

14

A187995

STATOR

1шт.

15

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

Small, Inner

1шт.

16

1964964C1

ROTOR

1шт.

17

A187901

FIXING PLATE

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

Large, Outer

1шт.

3078897R1

SET OF PARTS

Consists Of 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

Ring

1шт.

20

NSS

NOT SOLD SEPARAT

Washer

1шт.

21

NSS

NOT SOLD SEPARAT

Nut

1шт.

22

NSS

NOT SOLD SEPARAT

Key, Not Illustrated, Not Used

1шт.

23

NSS

NOT SOLD SEPARAT

Screw

4шт.

24

A187994

HOUSING

Drive End, If Used

1шт.

24

A186182

HOUSING

Drive End, If Used

1шт.

26

221425R1

FAN

Order Separately

1шт.

27

J908560

PULLEY

Order Separately

1шт.

28

J908563

RETAINER

Order Separately

1шт.

Выбрано товаров: 30
