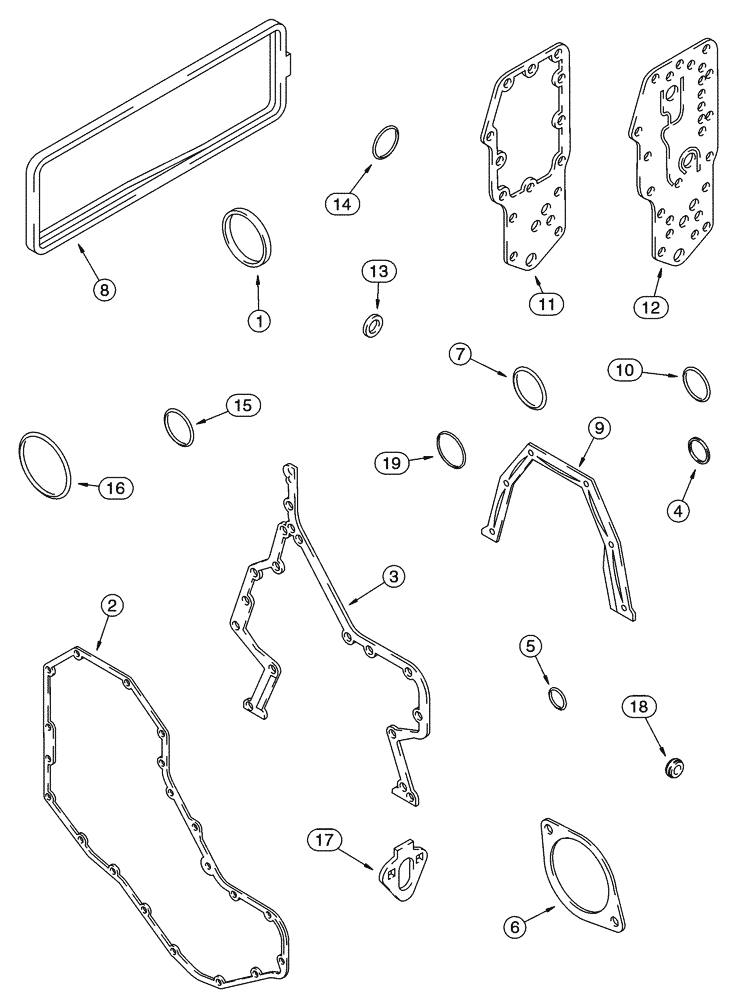

Запчасти Case 95XT (02-38) - GASKET KIT, CYLINDER BLOCK, 4T-390 EMISSIONS CERTIFIED ENGINE (NORTH AMERICA JAF0237964-) (02) - ENGINE

A77864

SEAL PACKAGE

Consists Of 1 - 19

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Page(s) 2-27

1шт.

2

J918673

GASKET,1.02mm Thk

See Page(s) 2-27

1шт.

3

J931351

GASKET

See Page(s) 2-27

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING See Page(s) 2-27

1шт.

5

J913994

O-RING

See Page(s) 2-27

1шт.

6

J929751

GASKET

See Page(s) 2-27

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

See Page(s) 2-23

1шт.

8

J283767

GASKET,7.4mm Thk

See Page(s) 2-101, 2-113H

1шт.

9

J928493

GASKET

See Page(s) 2-121

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID, See Page(s) 2-101

1шт.

11

J942914

GASKET

See Page(s) 2-47

1шт.

12

J929792

GASKET,1.2mm Thk

See Page(s) 2-47

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Page(s) 2-51

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID, If Equipped

1шт.

15

J929457

O-RING

23/32 ID x 7/64, See Page(s) 2-47

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Page(s) 2-127

1шт.

17

J931348

GASKET

See Page(s) 3-23

1шт.

18

J928759

SEALING WASHER

See Page(s) 2-101, 2-113F

4шт.

19

J930993

O-RING

See Page(s) 3-33

1шт.
