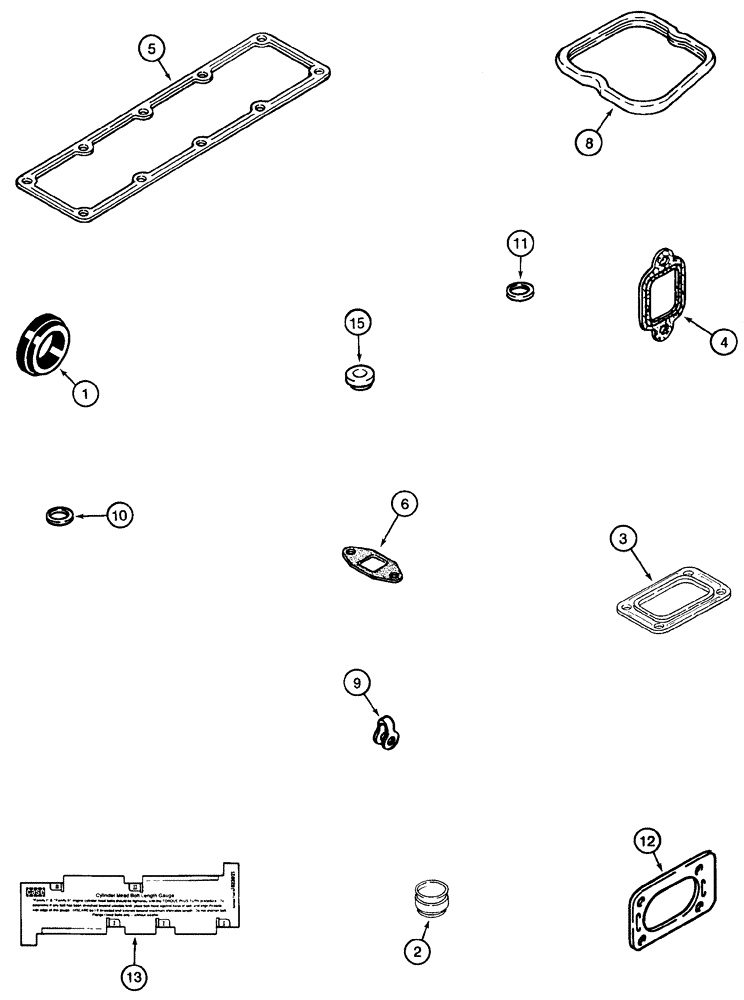

Запчасти Case 95XT (02-35) - GASKET KIT, VALVE GRIND, 4T-390 EMISSIONS CERTIFIED ENGINE (NORTH AMERICA JAF0237964-) (02) - ENGINE

A77870

SEAL PACKAGE

Consists Of 1 - 15, No Longer Available, Order A77975, See Page(s) 2-145, 2-147

1шт.

1

J923331

GASKET

See Page(s) 2-55

1шт.

2

J901097

SEAL

See Page(s) 2-61

4шт.

2

J921640

SEAL

See Page(s) 2-61

4шт.

3

J919369

GASKET,0.5mm Thk

See Page(s) 2-35

1шт.

4

J905443

MANIFOLD GASKET

No Longer Available, Order J927154, See Page(s) 2-31

4шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

See Page(s) 2-31

1шт.

6

J931350

GASKET

No Longer Available, Order J942725, See Page(s) 2-35

1шт.

8

J930906

GASKET

See Page(s) 2-55

4шт.

9

J903380

SEAL

See Page(s) 3-21

4шт.

10

J906659

SEAL

7 mm, See Page(s) 3-41

4шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Page(s) 3-41

4шт.

12

J914856

GASKET,1.02mm Thk

If Equipped

1шт.

13

J823921

GAUGE

1шт.

15

J928406

ISOLATOR

See Page(s) 2-55

4шт.
