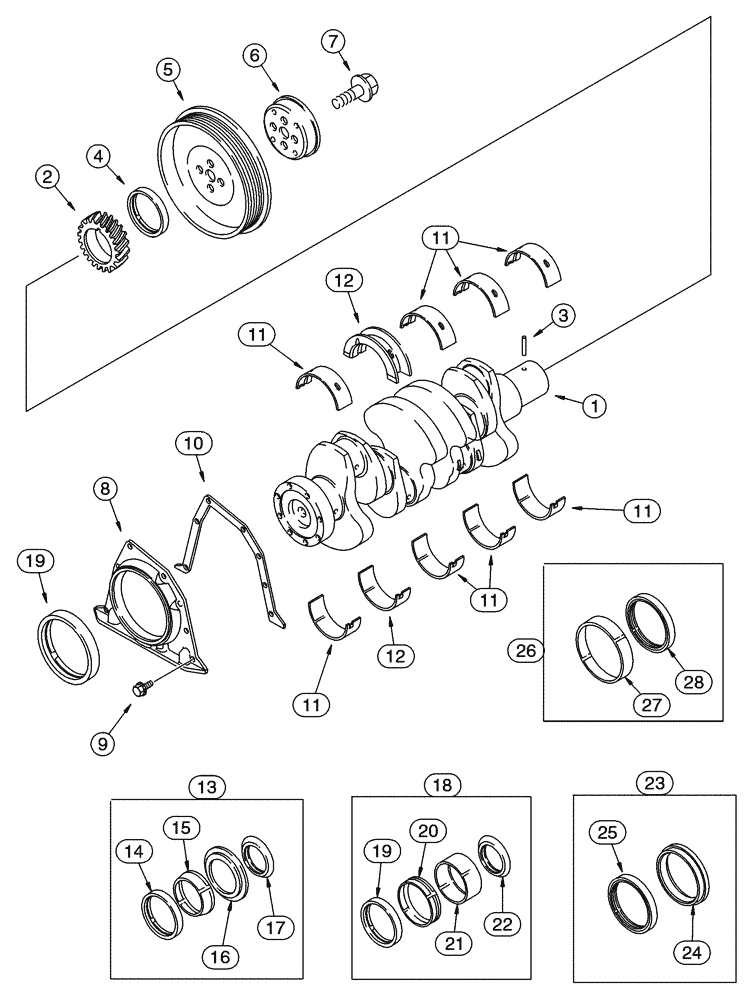

Запчасти Case 95XT (02-29) - CRANKSHAFT, 4T-390 ENGINE (NORTH AMERICA -JAF0237963 / EUROPE) (02) - ENGINE

JR908031

CRANKCASE

Remanufactured, N.A. Only, Replaces JR918323

1шт.

J929036R

REMAN-CRANKSHAFT

95XT EMISSIONS, 95XT,Both Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

N.A. Only

1шт.

1

J908031

CRANKSHAFT

Consists Of 2, 3, Replaces J918323

1шт.

J929036R

REMAN-CRANKSHAFT

95XT, Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Order A77889, See Page(s) 2-117

1шт.

5

J914494

PULLEY,181.25mm OD

1шт.

6

J903829

ADAPTER

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36

4шт.

8

J921043

REAR COVER

No Longer Available, Order J936904

1шт.

8

J936904

REAR COVER

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J928493

GASKET

1шт.

11

A77405

CRANKSHAFT BEARING

Standard

4шт.

11

A77472

BEARING SET

0,25 mm, Undersize

4шт.

11

A77474

BEARING SET

0,50 mm, Undersize

4шт.

11

A77476

BEARING SET

0,75 mm, Undersize

4шт.

11

A77478

BEARING SET

1,0 mm, Undersize

4шт.

12

A77406

CRANKSHAFT BEARING

Standard

1шт.

12

A77473

THRUST BEARING

0,25 mm, Undersize

1шт.

12

A77475

THRUST BEARING

0,50 mm, Undersize

1шт.

12

A77477

THRUST BEARING

0,75 mm, Undersize

1шт.

12

A77479

THRUST BEARING

1,0 mm, Undersize

1шт.

12

A77841

THRUST BEARING

0,50 mm, Undersize, Oversize

1шт.

12

A77840

THRUST BEARING

1,0 mm, Undersize, Oversize

1шт.

13

A77889

SEAL PACKAGE

Front, Consists Of 14 - 17, Replaces J904353

1шт.

14

NSS

NOT SOLD SEPARAT

Seal, Front

1шт.

15

NSS

NOT SOLD SEPARAT

Tool

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Shield

1шт.

18

A77890

SEAL PACKAGE

Crankshaft, Front, Consists Of 19 - 22, Replaces J802820

1шт.

19

NSS

NOT SOLD SEPARAT

Seal

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve, Not Illustrated

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Shield

1шт.

23

A77809

GASKET KIT

Crankshaft, Rear, Consists Of 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

25

NSS

NOT SOLD SEPARAT

Seal

1шт.

26

J929106

SEAL

Crankshaft, Rear, Consists Of 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

28

NSS

NOT SOLD SEPARAT

Seal

1шт.
