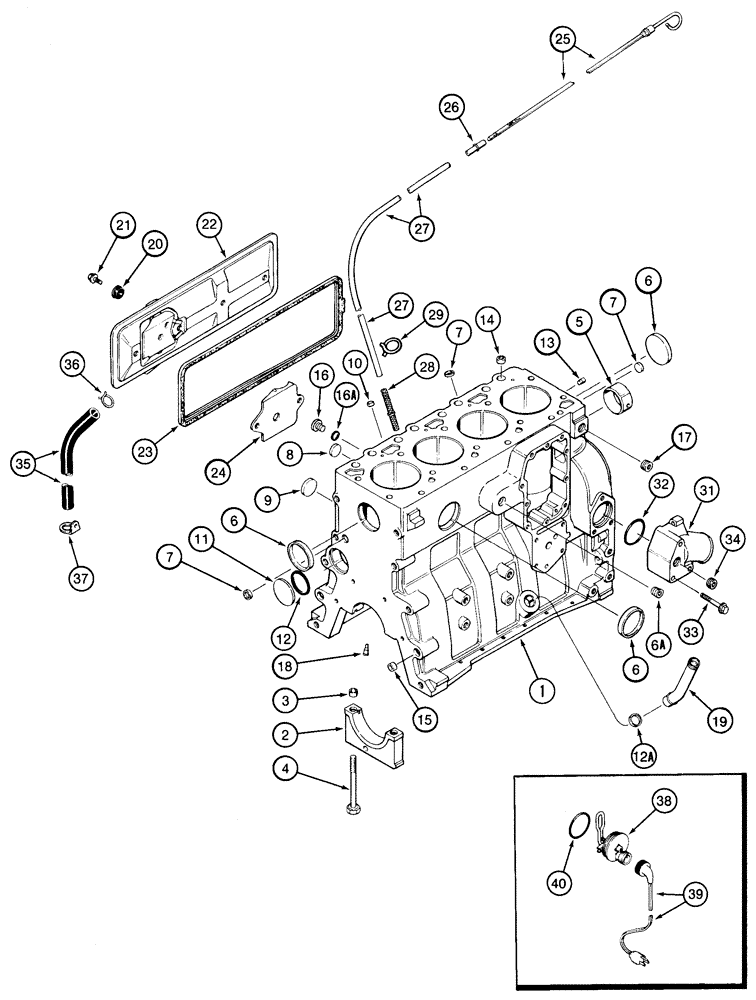

Запчасти Case 95XT (02-27) - CYLINDER BLOCK, 4T-390 ENGINE, NON-EMISSIONED, ENGINE S/N 45537238 & AFTER (NORTH AMERICA JAF0237964-) (02) - ENGINE

*

182213A2

ENGINE ASSEMBLY

ENGINE ASSY Complete, Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Order 1989092C3

1шт.

*

87605126

ENGINE

ENGINE ASSY Complete, Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe

1шт.

*

234277A2R

REMAN-BASIC ENGINE

ENGINE ASSY Complete, Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe

1шт.

*

234277A2C

CORE-BASIC ENGINE

Return Number

1шт.

*

AC77758

CORE-ENGINE

1шт.

*

J933648

SHORT ENGINE

Includes Stripped Block, Pistons, Connecting Rods And Bearings, Crankshaft And Bearings, Consists Of 1 - 8, Replaces J933236

1шт.

*

JR933648

REMAN-SHORT ENGINE

Remanufactured, N.A. Only, Replaces JR933236

1шт.

*

JC933648

CORE-SHORT ENGINE

Return Number, For N.A. Only

1шт.

1

87444172

BLOCK ASSY.

Stripped, Consists Of 2 - 8, Order J933220, 250838A2

1шт.

2

J900967

BEARING CAP

5шт.

3

J900068

BEARING WASHER

18 mm OD

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

10шт.

5

REF

INSTRUCTION

Bushing, See Page(s) 2-65

1шт.

6

A77782

PLUG

58 mm

3шт.

6a

A77505

PLUG

3/4 PT, If Used

1шт.

7

J900956

PLUG

18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

2шт.

J933220

PACKAGE,SERVICE

Includes 9 - 18

1шт.

9

J900958

PLUG

32 mm OD

2шт.

10

J900955

PLUG

10 mm OD

1шт.

11

172599

PLUG,Exp, 2 3/8"

60 mm OD, Includes 12

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

12a

J920706

PLUG

22 mm

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J902343

DOWEL

16 mm OD

2шт.

15

J900068

BEARING WASHER

18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

10 mm, Includes 16A

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

17

A77429

PLUG

1/2 PT

1шт.

17a

J678921

PLUG

14 mm, Not Used In This Application, Includes 17B

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

Not used in this application

1шт.

17c

J932296

PLUG

Not Used In This Application, Includes 17D

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

Not Used In This Application

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

Not Used In This Application

1шт.

18

J930139

NOZZLE CAP

4шт.

19

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

1шт.

20

J900267

SEAL

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

22

J925680

COVER

1шт.

23

J283767

GASKET,7.4mm Thk

1шт.

24

J907586

BAFFLE

1шт.

25

J933333

DIPSTICK

1шт.

26

J905802

FITTING,9.53 mm OD x 39 mm L

1шт.

27

J905801

TUBE

1шт.

28

A77645

TUBE

1шт.

29

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

31

J903102

CONNECTION

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

34

A77429

PLUG

1/2 PT

2шт.

35

J918612

TUBE,360.00 mm

1шт.

36

J904230

CLAMP,25.4mm

1шт.

37

J928989

CLIP

1шт.

196803A1

KIT

Engine Block Heater, 120V, Consists Of 38 - 40

1шт.

38

NSS

NOT SOLD SEPARAT

Element

1шт.

39

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

40

J910517

O-RING

240 Volt

1шт.

41

J916662

UNIT HEATER

240V, Not Illustrated

1шт.

42

112837A1

PLUG

Not Illustrated

1шт.

43

331-83

1/2 oz, Not Illustrated

1шт.

44

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, Not Illustrated

1шт.
