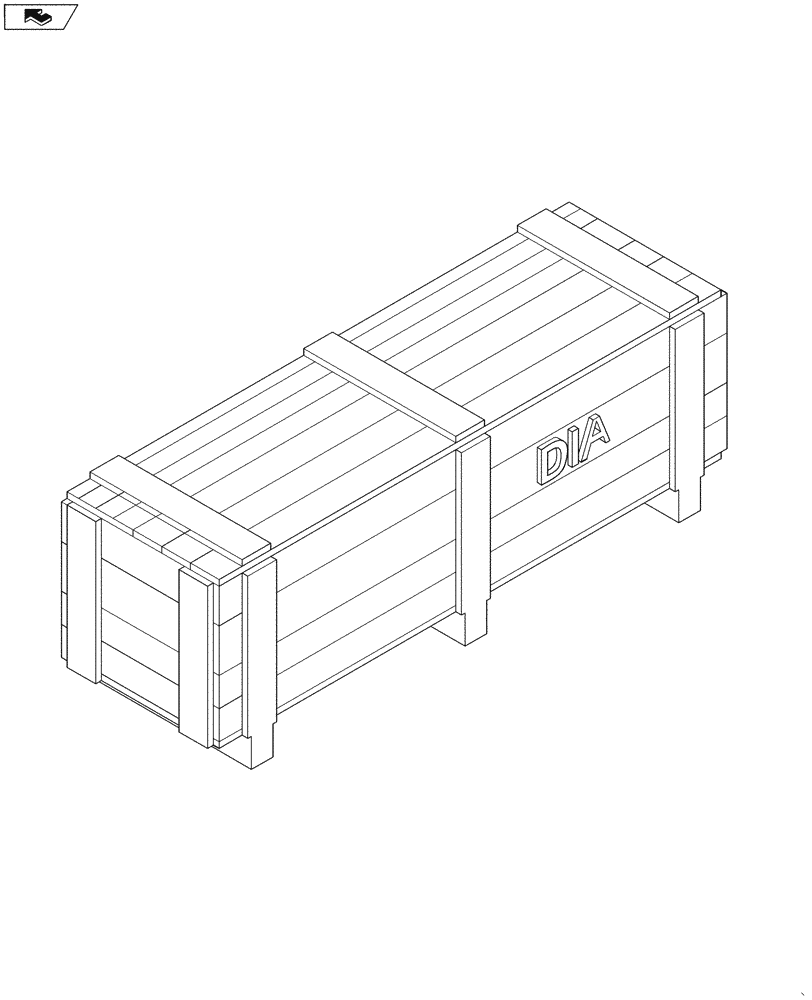

Запчасти Case 95XT (88.035.02) - DIA KIT, INSTALLATION, RIDE CONTROL FIELD (88) - ACCESSORIES

1

432946A1

SERVICE KIT

Installation, Ride Control Field, Incl 2 - 36

1шт.

2

6-43132

Instruction, Installation

1шт.

3

214-1444

HOSE CLAMP,58.6mm - 82.5mm

2шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Short Tube

1шт.

5

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

Tube

1шт.

6

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

2шт.

7

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

3шт.

8

255927A1

WARNING DECAL

Ride Cont Warning

1шт.

9

304083A1

DECAL

Ride Control Option, Transfer

2шт.

10

87428444

VALVE

Solenoid Ride Control

1шт.

11

308235A1

HOSE ASSY.

Valve To Returnride Control 95xt

1шт.

12

310838A1

HARNESS

Ride Control All Xt

1шт.

13

335932A1

SUPPORT

Ride Control Solenoid Mounting

1шт.

14

384260A1

WARNING DECAL,168mm x 88mm H

Accumulator In System

1шт.

15

395831A1

ACCUMULATOR

Hydraulic

1шт.

16

417340A1

HOSE ASSY.

Ride Control Curl

1шт.

17

417341A1

HOSE ASSY.

Ride Control Tilt

1шт.

18

417414A1

HOSE ASSY.

Valve To Accumulator Ride Control

1шт.

19

428903A1

HOSE ASSY.

Valve To Accumulator Ride Control 0.95xt

1шт.

20

428904A1

HOSE ASSY.

Valve To Bucket Ride Control 95xt

1шт.

21

428905A1

HOSE ASSY.

Valve To Bucket Ride Control 95xt

1шт.

22

430950A1

BRACKET

Ride Control Solenoid Mounting

1шт.

23

433048A1

BRACKET

Solenoid Mounting Hiflow/Ride Control

1шт.

24

433330A1

HOSE ASSY.

Valve To Accumulator Ride Control 90xt

1шт.

25

433331A3

HOSE ASSY.

Valve To Rod End Ride Control 90xt

1шт.

26

433332A2

HOSE ASSY.

Valve To Base End Ride Control 90xt

1шт.

27

433333A1

HOSE ASSY.

Valve To Tank Ride Control 90xt

1шт.

28

811-6025

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 25mm, Cl 8.8

2шт.

29

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

30

832-41406

NUT,M6 x 1, Cl 8

2шт.

31

832-41408

NUT,M8 x 1.25, Cl 10

2шт.

32

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

33

INF11414

Schematic, Hydraulic Plumbing

1шт.

34

380017A1

LEVER ASSY.

With Controls Deluxe Right Hand

1шт.

35

379501A1

HANDLE

Right Hand Horn, Ride Controller, Turn Signal

1шт.

36

372075A2

BOOT

Adapter, Mounting Ux02 For Xt Handles

1шт.
