(05.100.03[01]) - FILTERS, 95XT

Запчасти Case 95XT (05.100.03[01]) - FILTERS, 95XT (18) - MISCELLANEOUS

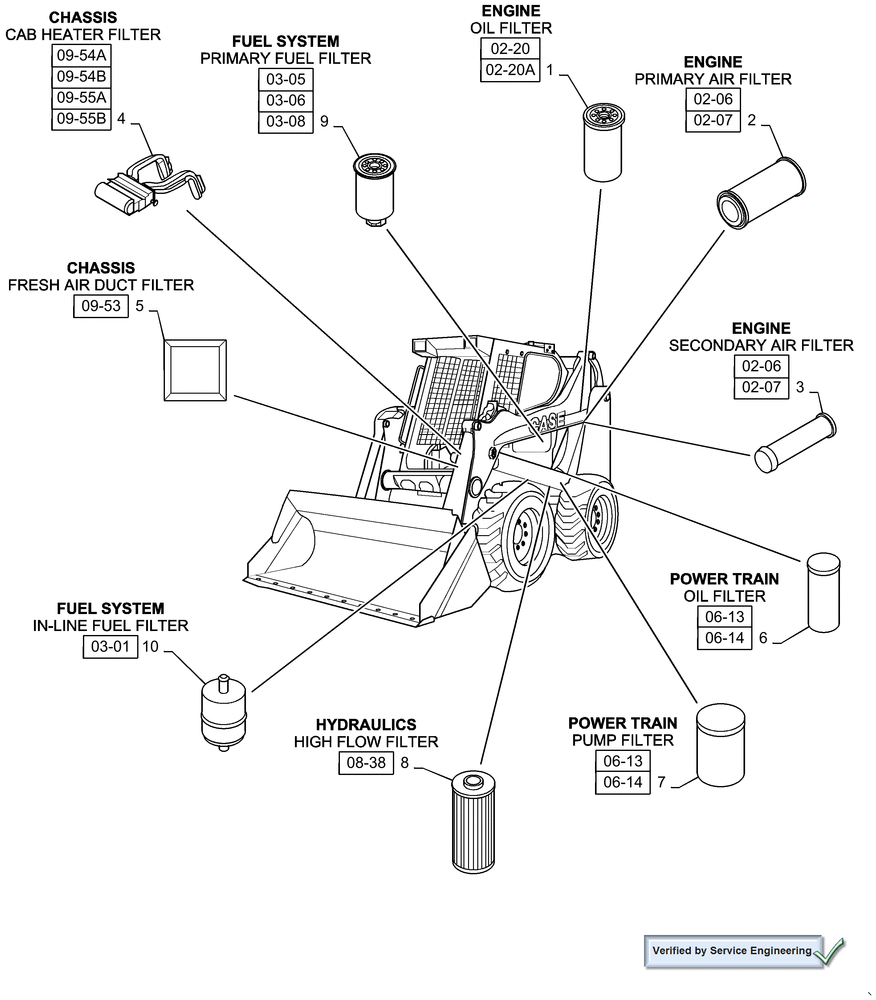

Схема запчастей Case 95XT - (05.100.03[01]) - FILTERS, 95XT (18) - MISCELLANEOUS
5
03-01
1
9
4
09-54b
02-20
06-14
09-55b
3
08-38
02-06
09-54a
02-07
10
02-20a
03-05
03-08
6
02-07
03-06
06-13
7
2
06-14
06-13
09-53
8
09-55a
02-06
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J934429

ENGINE OIL FILTER

Spin-On

1шт.

1

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

Single Pack

1шт.

1

J908616MP

ENGINE OIL FILTER

Multipack

1шт.

2

222421A1

AIR FILTER

Primary

1шт.

3

222422A1

AIR FILTER

Secondary

1шт.

4

317726A1

FILTER

Heater

1шт.

5

303224A1

FILTER

Fresh Air Duct

1шт.

6

N9025

HYDRAULIC OIL FILTER

Spin-On (BSN JAF0311356)

1шт.

6

N9025

HYDRAULIC OIL FILTER

Spin-On (ASN JAF0311356)

1шт.

6

D126922

FILTER, ELEMENT

Optional (JAF0311356)

1шт.

6

D126922

FILTER, ELEMENT

Optional (ASN JAF0311356)

1шт.

7

222759A1

HYDRAULIC OIL FILTER

Pump

1шт.

8

244913A1

FILTER, ELEMENT

High Flow/High Pressure

1шт.

9

J843760

FILTER

Primary (BSN JAF0237963)

1шт.

9

J931062

FILTER

Primary (ASN JAF0237963)

1шт.

10

D139225

FILTER, FUEL

In-Line

1шт.
