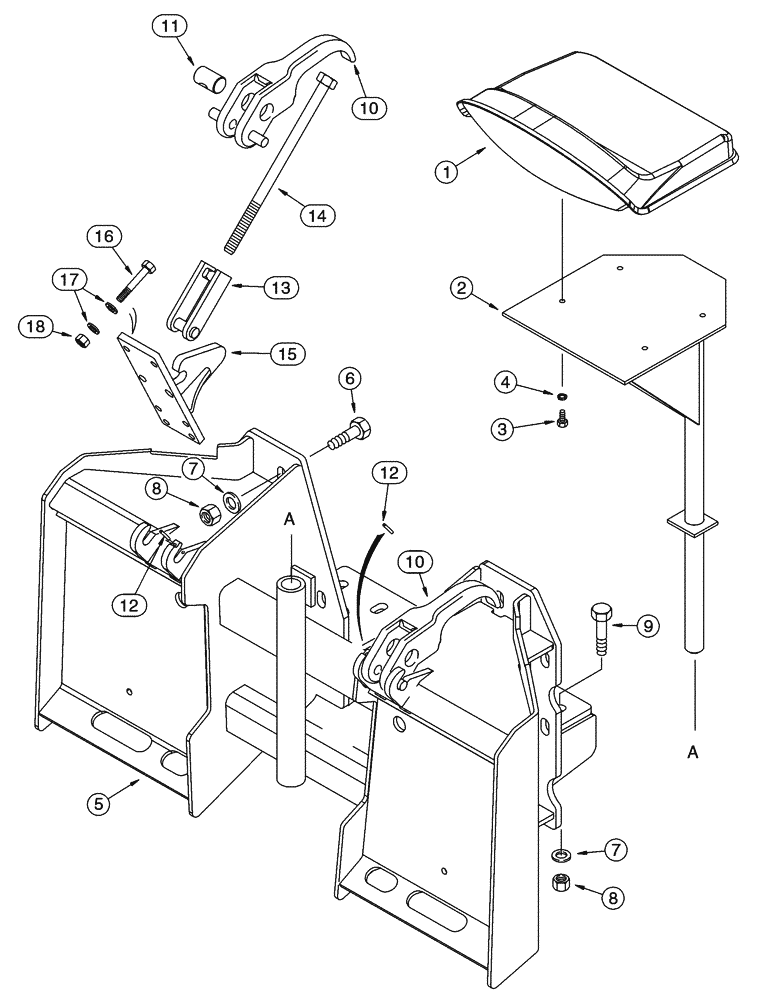

Запчасти Case 95XT (09-61) - BACKHOE - SEAT & FRAME (NORTH AMERICA), D125 BACKHOE (09) - CHASSIS/ATTACHMENTS

1

179332A1

SEAT

1шт.

2

D134779

SUPPORT

For Seat Plate without Post, See Page, 9-159, Ref. 2

1шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

4

492-11031

LOCK WASHER,5/16"

4шт.

5

223426A1

CHASSIS

For Two Piece Frame, See Page, 9-169, Ref. 1, 2

1шт.

6

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

10шт.

7

H426817

WASHER

14шт.

8

232-41112

NUT,3/4"-10, GC

14шт.

9

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

3/4 x 3

4шт.

10

298185A1

HANDLE

Replaces 226648A1

2шт.

11

224024A1

PIN,38.1mm OD x 60mm L

2шт.

12

38-31224

PIN,3/16" x 1 1/2", Coiled

3/16" x 1 1/2", Coiled

2шт.

13

224029A1

CLEVIS

2шт.

14

828-20260

BOLT,Hex, M20 x 2.5 x 260mm, Cl 10.9

M20 x 260; 10.9

2шт.

15

226812A2

HOOK

Replaces 226812A1

2шт.

16

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

8шт.

17

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

16шт.

18

832-41312

NUT,M12 x 1.75, Cl 10

8шт.
