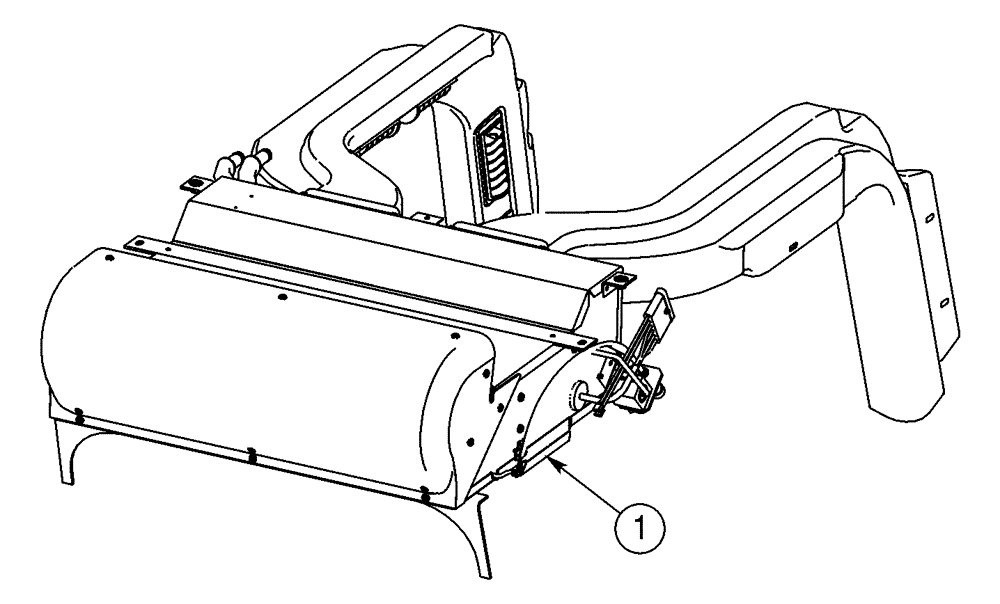

Запчасти Case 95XT (09-55[B]) - AIR CONDITIONING SYSTEM (NORTH AMERICA JAF0311156- / EUROPE JAF0274351-) (09) - CHASSIS/ATTACHMENTS

1

373010A1

Kit, Includes 2 - 28, 36 - 46, 48 - 55, Not Serviced As An Assembly, Order Components, Component Parts Not Illustrated

1шт.

2

178454A2

BLOWER ASSY.

12V, Blower

1шт.

178454A2R

REMAN-BLOWER

95XT

1шт.

178454A2C

CORE-BLOWER

Return Number

1шт.

3

301803R1

SHUT-OFF VALVE

1шт.

4

401360A1

RESISTOR

Blower

1шт.

5

307155A1

WASHER

Resistor Mounting

1шт.

6

168822C2

SWITCH

Blower

1шт.

7

315068A1

BALL KNOB

Blower

1шт.

8

317721A1

BALL KNOB

Control

1шт.

9

284621A1

HOUSING

Air Intake

1шт.

10

363890A1

VENT

Rectangular

8шт.

11

309569A1

DIFFUSER

Round

2шт.

12

317687A1

PAN ASSY.

Drain

1шт.

13

317726A1

FILTER

1шт.

14

298690A1

COIL

Condenser

1шт.

15

317718A1

HARNESS

Wire

1шт.

16

317720A1

CONTROL

Thermostat

1шт.

17

317723A1

KNOB

Thermostat

1шт.

18

317724A1

EVAPORATOR

Evaporator And Heater

1шт.

19

87033212

VALVE

Replaces 317725A1

1шт.

20

109239C2

CHECK VALVE

Drain Hose

1шт.

21

122579A1

SWITCH, A/C LOW PRES

Low

1шт.

22

1964672C1

LIGHT

14V, Assembly, Includes 223-155, 225091C1

1шт.

223-155

ELEC CONNECTOR,Female, 1 Pin

1 Contact

2шт.

225091C1

TERMINAL CONNECTOR,Female, 0.8 mm2

1шт.

23

1990758C2

RECEIVER-DRYER

Reservoir

1шт.

24

284273A2

SWITCH, A/C HIGH PRE

High Pressure

1шт.

25

298855A1

A/C HOSE

#10 - 12, Serial Range: Evaporator-Bulkhead

1шт.

26

298856A1

A/C HOSE

#6, Serial Range: Bulkhead-Evaporator

1шт.

27

298857A1

A/C HOSE

#6, Serial Range: Receiver-Drier-Bulkhead

1шт.

28

298858A1

A/C HOSE

#8, Compressor To Condenser

1шт.

296296A1

Hose, Includes 298867A1, Ref 29, 298868A1, Ref 30, Used In Production, For Service Order 298867A1, Ref 29, 298868A1, Ref 30

1шт.

29

298860A1

A/C HOSE

Condenser To Receiver-Drier

1шт.

30

298863A1

A/C HOSE

, Serial Range: Bulkhead-Compressor

1шт.

31

NSS

NOT SOLD SEPARAT

1676 mm (66 in), Hose, Supply, Shutoff Valve to Water Valve, Cut From R54970

1шт.

32

NSS

NOT SOLD SEPARAT

610 mm (24 in), Hose, Supply, Water Valve to Bulkhead, Cut From R54970

1шт.

33

NSS

NOT SOLD SEPARAT

2311 mm (91 in), Hose, Supply, Bulkhead to Evaporator, Cut From R54970

1шт.

34

NSS

NOT SOLD SEPARAT

2311 mm (91 in), Hose, Return, Shutoff Valve to Bulkhead, Cut From 97252C1

1шт.

35

NSS

NOT SOLD SEPARAT

2311 mm (91 in), Hose, Return, Bulkhead to Evaporator, Cut From 97252C1

1шт.

36

299022A1

CLAMP

Receiver-Drier

1шт.

37

299028A1

FITTING

#6, Bulkhead

1шт.

38

299030A1

FITTING

#10, Bulkhead

1шт.

39

398757A1

THUMB SCREW,#12 x 1.11", W/ Nylon Wshr

#12, Filter Mounting

1шт.

40

398758A1

SPECIAL WASHER

Filter Mounting

1шт.

41

284910A1

DUCT

Right Hand

1шт.

42

284911A1

DUCT

Left Hand

1шт.

43

299020A1

VALVE

Water Heater

1шт.

44

299039A1

ELEC SUPPORT PLATE

Right Hand, Wire Harness

1шт.

45

299045A1

CABLE

Water Control Valve

1шт.

46

299049A1

CONNECTION

Heater Hose

1шт.

47

324986A1

SEAL

1200 mm (47-1/4 in), Evaporator, Serial Range: Box-ROPS

1шт.

48

299078A1

HARNESS

Wire

1шт.

49

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

2шт.

50

393618A1

DECAL

Air Conditioning, See Page(s) 9-203, Ref 2

1шт.

51

393619A1

DECAL

Water Control Valve, See Page(s) 9-203, Ref 3

1шт.

52

393622A1

DECAL

Air Conditioning and Fan, See Page(s) 9-203, Ref 4

1шт.

53

299031A1

DECAL

See Page(s) 9-203, Ref 5

1шт.

54

373318A1

BRACKET

Top Rear Window

1шт.

55

373380A1

BRACKET

Inner, Top Rear Window

1шт.
