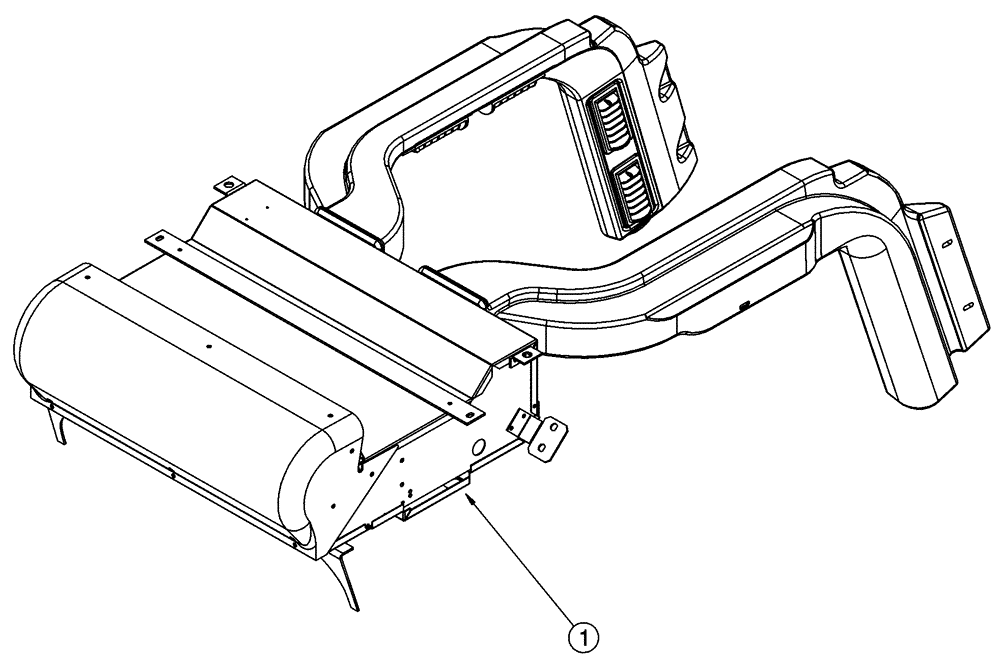

Запчасти Case 95XT (09-54[A]) - HEATING SYSTEM - HEATER, DELUXE (NORTH AMERICA -JAF0311155 / EUROPE -JAF0274350) (09) - CHASSIS/ATTACHMENTS

1

304412A1

SET OF PARTS

Deluxe, Includes 2 - 28, Component Parts Not Illustrated

1шт.

2

178454A2

BLOWER ASSY.

12V, Blower

1шт.

178454A2R

REMAN-BLOWER

95XT

1шт.

178454A2C

CORE-BLOWER

Return Number

1шт.

3

301803R1

SHUT-OFF VALVE

1шт.

4

359504A1

RESISTOR

Replaces 307153A1

1шт.

5

307155A1

WASHER

Resistor Mounting

1шт.

6

168822C2

SWITCH

Blower

1шт.

7

315068A1

BALL KNOB

Blower

1шт.

8

317721A1

BALL KNOB

Control

1шт.

9

284621A1

HOUSING

Air Intake

1шт.

10

309568A1

DIFFUSER

Rectangular

8шт.

11

309569A1

DIFFUSER

Round

2шт.

12

317687A1

PAN ASSY.

Drain

1шт.

13

317726A1

FILTER

1шт.

14

317857A1

CONDENSER

Heater

1шт.

15

317859A1

HARNESS

Heater

1шт.

14

NSS

NOT SOLD SEPARAT

1676 mm (66 in), Hose, Supply, Shutoff Valve to Water Valve, Cut From R54970

1шт.

15

NSS

NOT SOLD SEPARAT

610 mm (24 in), Hose, Supply, Water Valve to Bulkhead, Cut From R54970

1шт.

16

NSS

NOT SOLD SEPARAT

2311 mm (91 in), Hose, Supply, Bulkhead to Heater Core, Cut From R54970

1шт.

17

NSS

NOT SOLD SEPARAT

2311 mm (91 in), Hose, Return, Shutoff Valve to Bulkhead, Cut From 97252C1

1шт.

18

NSS

NOT SOLD SEPARAT

2311 mm (91 in), Hose, Return, Bulkhead to Heater Core, Cut From 97252C1

1шт.

19

398757A1

THUMB SCREW,#12 x 1.11", W/ Nylon Wshr

#12, Filter Mounting

1шт.

20

398758A1

SPECIAL WASHER

Filter Mounting

1шт.

21

284910A1

DUCT

Right Hand

1шт.

22

284911A1

DUCT

Left Hand

1шт.

23

299020A1

VALVE

Water Heater

1шт.

24

299039A1

ELEC SUPPORT PLATE

Right Hand, Wire Harness

1шт.

25

299045A1

CABLE

Water Control Valve

1шт.

26

299049A1

CONNECTION

Heater Hose

1шт.

27

324986A1

SEAL

1200 mm (47-1/4 in), Evaporator, Serial Range: Box-ROPS

1шт.

28

403512A1

HARNESS

Cab

1шт.

29

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

1/2 x 3/8

2шт.

30

393618A1

DECAL

Air Conditioning, See Page(s) 9-203, Ref 2

1шт.

31

393619A1

DECAL

Water Control Valve, See Page(s) 9-203, Ref 3

1шт.
