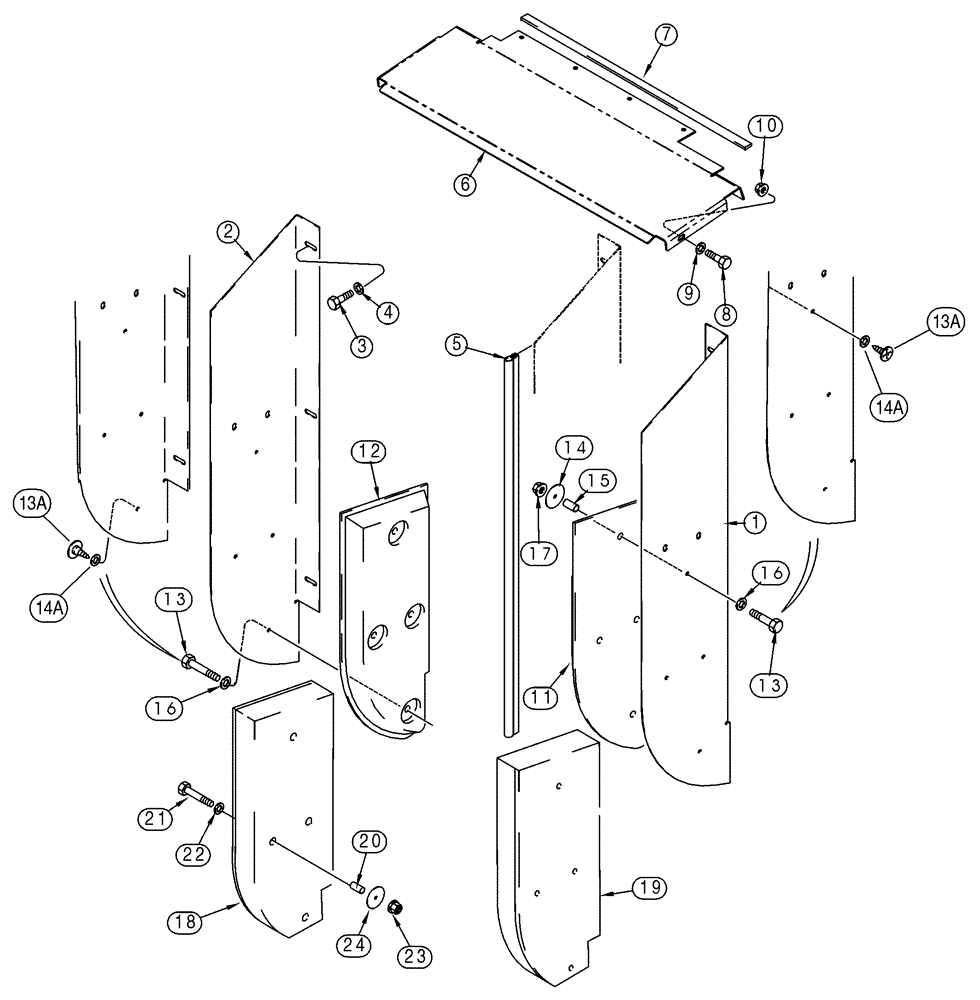

Запчасти Case 95XT (09-45) - CANOPY, ROPS - EXTENSION PANELS (09) - CHASSIS/ATTACHMENTS

1

186314A3

PANEL

Right Hand, Replaces 186314A2

1шт.

2

186315A3

PANEL

Left Hand, Replaces 186315A2

1шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

5

188980A1

SEAL

Side Extension, 875 mm

2шт.

6

284968A2

COWL

Hood

1шт.

7

275066A1

SEAL

Hood Extension, 628 mm

1шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

10

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

11

259990A1

INSULATOR

Side Extension, Right Hand

1шт.

12

259991A1

INSULATOR

Side Extension, Left Hand

1шт.

13

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

If Used

8шт.

13a

348452A1

FASTENER,Push-In, 37mm L, Nylon

Push-In, 7,14 hole dia

8шт.

14

D136108

WASHER

If Used

8шт.

14a

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

7,14 ID x 44,5 OD

8шт.

15

275166A1

SPACER

1/2 x 1, If Used

8шт.

17

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

If Used

8шт.

18

315048A1

INSULATOR

Extension, Left Hand

1шт.

Europe Only

1шт.

19

315049A1

INSULATOR

Extension, Right Hand

1шт.

Europe Only

1шт.

20

293892A1

SPACER

8шт.

Europe Only

1шт.

21

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

8шт.

Europe Only

1шт.

23

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

Europe Only

1шт.

24

D136108

WASHER

8шт.

Europe Only

1шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

If Used

8шт.

22

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

Europe Only

1шт.
