Запчасти Case 95XT (09-41) - CANOPY, ROPS - REAR LATCH & PIVOT (09) - CHASSIS/ATTACHMENTS

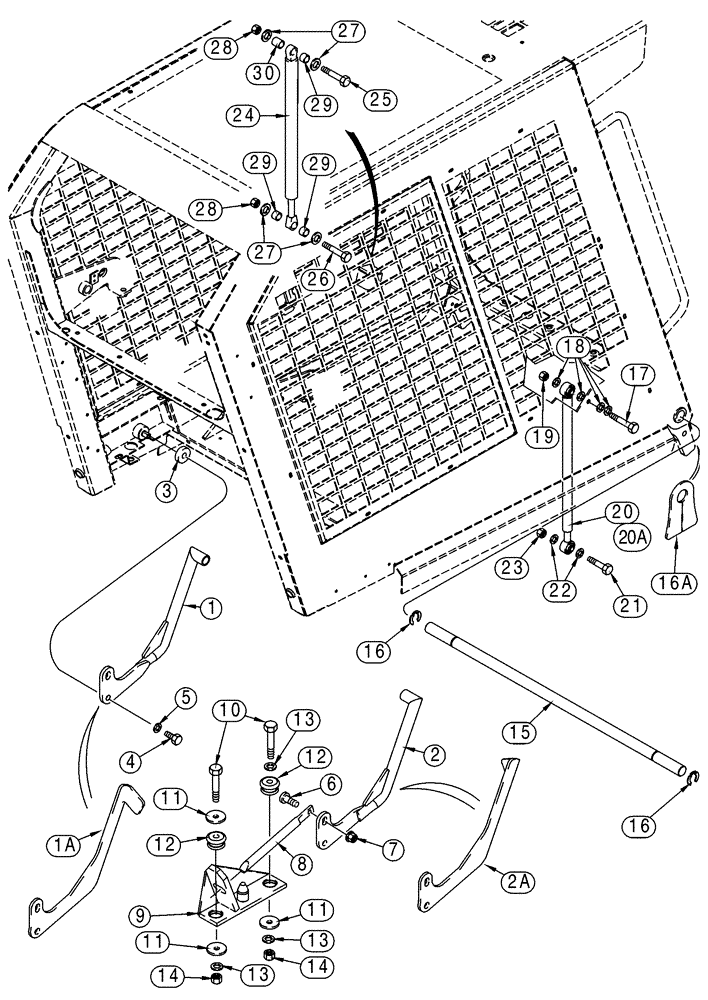

Схема запчастей Case 95XT - (09-41) - CANOPY, ROPS - REAR LATCH & PIVOT (09) - CHASSIS/ATTACHMENTS
13
2
23
12
5
27
20a
16a
10
22
15
29
14
30
9
6
28
7
11
8
18
19
28
16
26
1
25
13
24
14
12
17
21
27
29
3
11
2a
29
20
13
11
1a
4
16

Артикул

Название

Примечание

Количество

1

251058A2

HANDLE

Left Hand, No Longer Available, Order 1A

1шт.

1a

328601A1

HANDLE

Left Hand

1шт.

1a

87597590

LEVER

Left Hand; Replaces 328601A1

1шт.

2

251060A2

HANDLE

Right Hand, No Longer Available, Order 2A

1шт.

2a

328603A1

HANDLE

Right Hand

1шт.

2a

87597591

LEVER

Right Hand; Replaces 328603A1

1шт.

3

257384A1

SPACER

2шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

Use Loctite No. 242

2шт.

B17577

LOCTITE

No. 242, 6 ml, Blue

1шт.

5

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

6

121-227

STEP BOLT,Hex Skt, 3/8" - 16 - 1/2" x 1/2"

2шт.

7

231-5146

FLANGE NUT,3/8"-16

2шт.

8

195366A2

PIN

2шт.

9

282300A3

SUPPORT

Right Hand, Replaces 282300A1, 282300A2

1шт.

9a

282301A3

SUPPORT

Left Hand, Not Illustrated, Replaces 282301A1, 282301A2

1шт.

10

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

4шт.

11

240669A1

WASHER

6шт.

12

H426395

MOUNTING PARTS

4шт.

13

195-81030

WASHER

17/32 x 1-1/2 x 3/16

6шт.

14

832-41312

NUT,M12 x 1.75, Cl 10

4шт.

15

144345A3

PIVOT PIN,25.4mm OD x 825mm L

1шт.

16

827695C1

CIRCLIP

1 in

2шт.

16a

295076A1

SEAL

Models With Deluxe Heater and Air Conditioning

2шт.

17

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

1шт.

19

832-41310

NUT,M10 x 1.5, Cl 10

1шт.

20

282002A1

GAS STRUT

Replaces 222490A1, No Longer Available, Order 282002A2, REF 20A

1шт.

20a

282002A2

GAS STRUT

1шт.

21

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

23

832-41310

NUT,M10 x 1.5, Cl 10

1шт.

24

247992A2

GAS STRUT,610mm Extended, 380mm Compressed

Used on Models With Side and Top Windows, N.A. Only

1шт.

24

282098A1

GAS STRUT,612.1mm Extended, 377.9mm Compressed

Heavy Duty, Models With Deluxe Heater and Air Conditioning

1шт.

24

247992A2

GAS STRUT,610mm Extended, 380mm Compressed

Standard, Europe Only

1шт.

24

282098A1

GAS STRUT,612.1mm Extended, 377.9mm Compressed

Heavy Duty, Used on Models With Side and Top Windows, Europe Only

1шт.

25

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

1шт.

26

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

28

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

29

254697A1

SPACER

3шт.

30

254698A1

SPACER

1шт.

18

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4-7шт.

22

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

27

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

Выбрано товаров: 41
