(02-17) - TURBOCHARGER ASSEMBLY, 4T-390 ENGINE (NORTH AMERICA -JAF0237963 / EUROPE)

Запчасти Case 95XT (02-17) - TURBOCHARGER ASSEMBLY, 4T-390 ENGINE (NORTH AMERICA -JAF0237963 / EUROPE) (02) - ENGINE

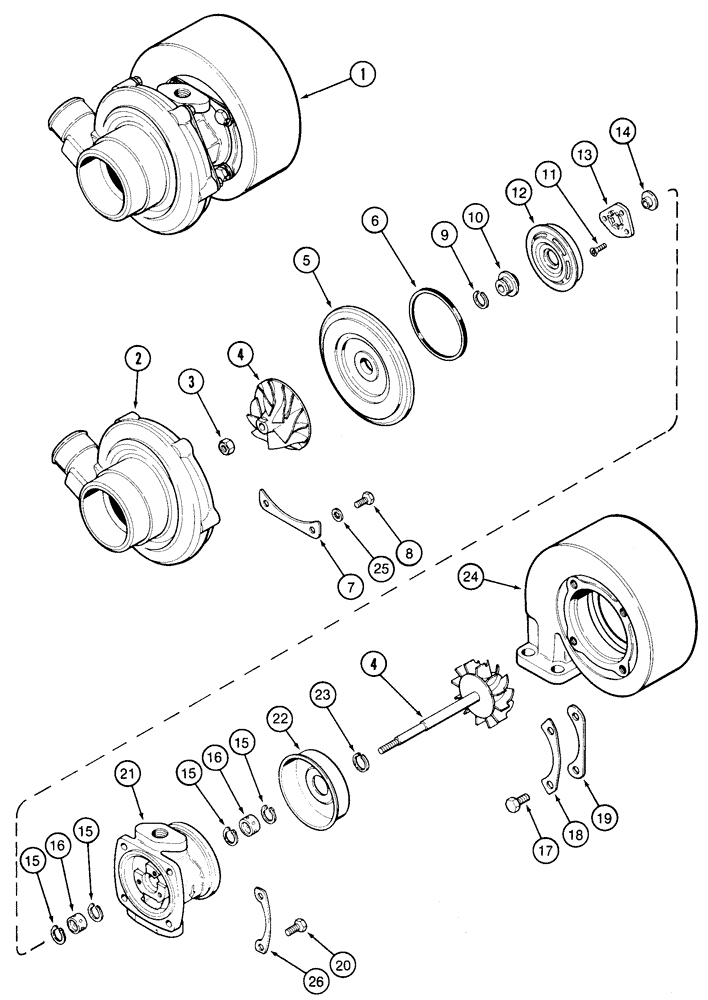

Схема запчастей Case 95XT - (02-17) - TURBOCHARGER ASSEMBLY, 4T-390 ENGINE (NORTH AMERICA -JAF0237963 / EUROPE) (02) - ENGINE
25
16
21
18
5
7
9
1
15
3
8
2
22
16
17
15
14
15
15
19
12
11
4
13
24
4
26
23
10
20
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Turbocharger Assy, Consists Of 2 - 26, Order J802290

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

NSS

NOT SOLD SEPARAT

Nut

1шт.

4

NSS

NOT SOLD SEPARAT

Rotor

1шт.

5

NSS

NOT SOLD SEPARAT

Diffuser

1шт.

6

NSS

NOT SOLD SEPARAT

Seal

1шт.

7

NSS

NOT SOLD SEPARAT

Plate

6шт.

8

NSS

NOT SOLD SEPARAT

Screw

4шт.

9

NSS

NOT SOLD SEPARAT

Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Slinger

1шт.

11

NSS

NOT SOLD SEPARAT

Screw

3шт.

12

NSS

NOT SOLD SEPARAT

Baffle

1шт.

13

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

14

NSS

NOT SOLD SEPARAT

Collar

1шт.

15

NSS

NOT SOLD SEPARAT

Ring

4шт.

16

NSS

NOT SOLD SEPARAT

Bearing, Needle

2шт.

17

NSS

NOT SOLD SEPARAT

Bolt

4шт.

18

NSS

NOT SOLD SEPARAT

Plate

2шт.

19

NSS

NOT SOLD SEPARAT

Plate

2шт.

20

NSS

NOT SOLD SEPARAT

Bolt

4шт.

21

NSS

NOT SOLD SEPARAT

Housing

1шт.

22

NSS

NOT SOLD SEPARAT

Shield

1шт.

23

NSS

NOT SOLD SEPARAT

Seal

1шт.

24

NSS

NOT SOLD SEPARAT

Housing

1шт.

25

NSS

NOT SOLD SEPARAT

Washer

6шт.

J802290

TURBOCHARGER

Consists Of J535381, J519807, J919687, J709861

1шт.

JR802290

REMAN-TURBOCHARGER

95XT Prior To P.I.N. JAF0237963

1шт.

JC535381

CORE-TURBOCHARGER

Return Part Number

1шт.

26

NSS

NOT SOLD SEPARAT

Plate

2шт.

J545652

PACKAGE, REPAIR

Overhaul, Consists Of 6, 8, 9, 11, 13, 15 - 18, 20, 23, 25

1шт.
