Запчасти Case 95XT (09-38) - CANOPY, ROPS - FRAME & SEAT BAR, DELUXE HEAT & AIR CONDITION (N.A. -JAF0311155 / EUROPE -JAF0274350) (09) - CHASSIS/ATTACHMENTS

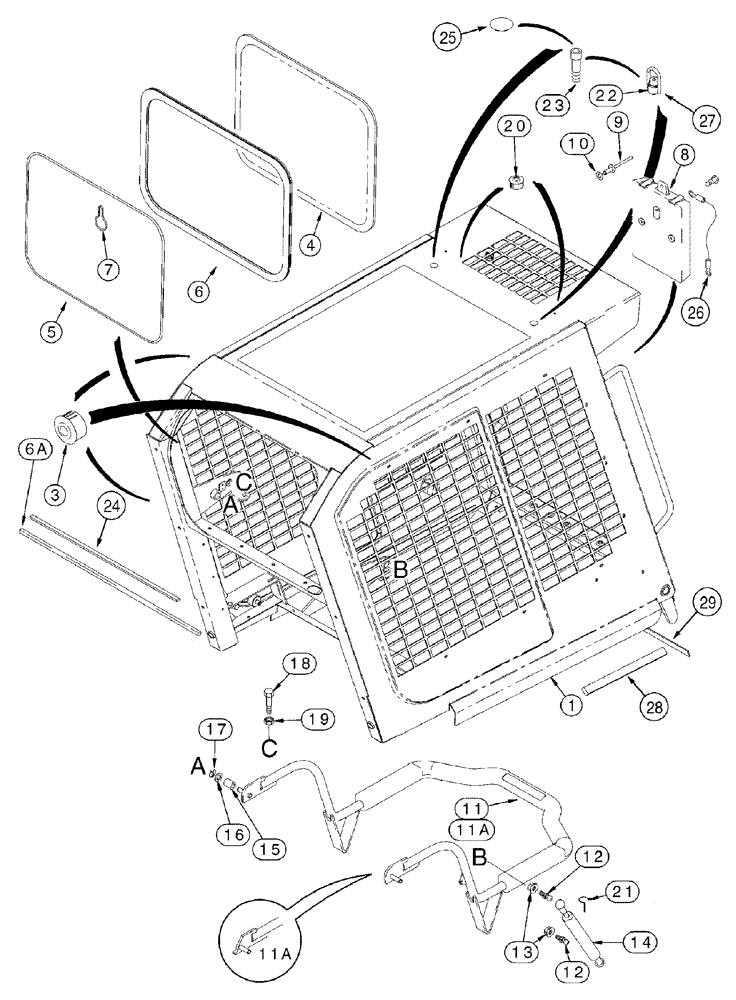

Схема запчастей Case 95XT - (09-38) - CANOPY, ROPS - FRAME & SEAT BAR, DELUXE HEAT & AIR CONDITION (N.A. -JAF0311155 / EUROPE -JAF0274350) (09) - CHASSIS/ATTACHMENTS
12
14
4
17
27
11a
23
5
15
11
8
18
21
7
29
20
19
26
12
25
16
6
22
9
1
11a
28
10
13
3
6a
24

Артикул

Название

Примечание

Количество

1

341839A1

ROPS

ASSEMBLY ROPS, Machinery Item, Includes Ref. 11 (9-195), Ref. 1 & 2 (9-199), Ref. 1 & 6 (9-205)

1шт.

3

353-411

PLUG,Dome, 1.000" hole, Nylon

3шт.

4

279350A1

GLASS

Rear

1шт.

5

299368A1

BAND

1825 mm (71-7/8 in)

1шт.

6

299367A1

BAND

1825 mm (71-7/8 in)

1шт.

6a

315083A1

SEALING STRIP

610 mm (40 inch), Window Frame, Europe Only

1шт.

7

107996A1

RING

1шт.

8

R46464

CASE

Manual, Operators

1шт.

9

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32

3шт.

10

495-31020

WASHER,#10

(13/64" x 15/32" x 3/64")

3шт.

11

250842A3

BAR ASSY.

-JAF0257312, North America Only, -JAF0274307, Europe Only

1шт.

11a

318038A1

BAR ASSY.

JAF0257313-, North America Only, JAF0274308-, Europe Only

1шт.

12

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

13

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

14

189787A2

SHOCK ABSORBER

1шт.

15

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

2шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

17

D143415

SNAP RING,0.50” ID, Klipring

1/2

2шт.

18

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

20

353-400

PLUG,Dome, .250" hole, Nylon

If used

2шт.

21

254307A1

CLIP

2шт.

22

277932A2

LOAD HOOK

Replaces 277932A1

2шт.

23

326-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

Models without lift hooks, Replaced by Ref. 25, 293887A1

2шт.

24

275066A1

SEAL

628 mm

1шт.

25

293887A1

COVER

70 mm (2-3/4 in), Models Without Lift Hooks

2шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, Manual, Operators, Replaces L11541, L18331

1шт.

27

R46463

SCREW,0.18" x 0.75"

Manual Retention

1шт.

28

313149A1

SEAL

ROPS Screen to Chassis, 355 mm (14 in)

2шт.

29

313150A1

SEAL

ROPS Side Front Toe Guard, 774 mm (30-1/2 in)

1шт.

19

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

Выбрано товаров: 30
