Запчасти Case 95XT (09-37) - CANOPY, ROPS - FRAME & SEAT BAR, MODELS W/FLOOR HEATER & MODELS W/O HEATER (09) - CHASSIS/ATTACHMENTS

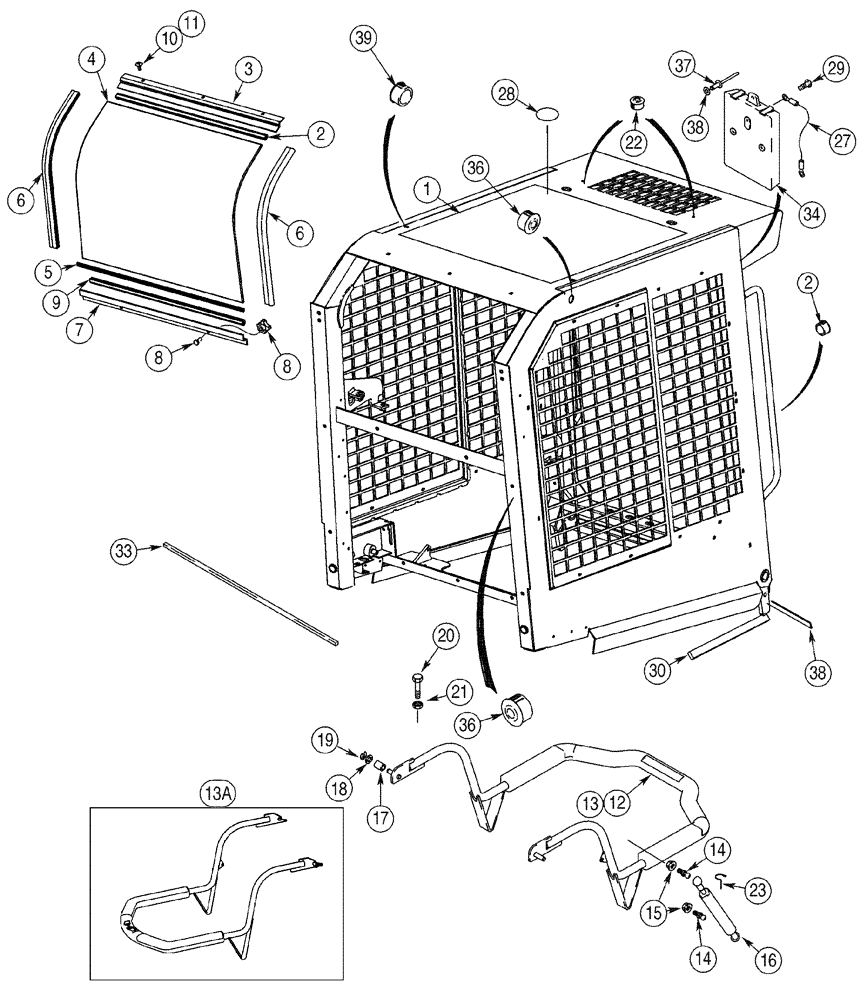

Схема запчастей Case 95XT - (09-37) - CANOPY, ROPS - FRAME & SEAT BAR, MODELS W/FLOOR HEATER & MODELS W/O HEATER (09) - CHASSIS/ATTACHMENTS
13a
20
11
2
33
14
18
22
17
6
36
38
15
19
10
16
27
39
5
29
28
38
8
21
4
2
14
34
8
36
6
12
37
1
3
23
30
9
7
13

Артикул

Название

Примечание

Количество

1

399704A1

ROPS, Two Piece Side Screen, North American Models JAF0311156 - JAF0311356, European Models JAF0274351 - JAF0274359, Includes Decals Ref 11 (9-195), Ref 1, 2 (9-199), Ref 1, 6A (9-205), Also Includes 2 - 11, Machinery Item

1шт.

1

432309A1

SERVICE KIT

ROPS, One Piece Side Screen, Not Illustrated, North American Models JAF0311357-, European Models JAF0274360-, Includes Decals Ref 11 (9-195), Ref 1, 2 (9-199), Ref 1, 6A (9-205), Also Includes 2 - 11, Machinery Item

1шт.

2

321274A1

SEAL

1шт.

3

321268A1

CHANNEL

1шт.

4

321269A1

GLASS

Rear

1шт.

5

333988A1

SEAL

639 mm (25-5/32 in), Lower Rear Window

1шт.

6

321276A1

SEAL

Rear Window Edge

2шт.

7

414792A2

BRACKET

300 mm (11-13/16 in) Between Bolt Holes

1шт.

8

362337A1

KNOB

2шт.

9

321275A1

SEAL

587 mm (23-1/8 in), Bottom Glass Seal

1шт.

10

611-8020

CARRIAGE BOLT,M8 x 20mm, Class 4.6

3шт.

11

832-41308

NUT,M8 x 1.25, Cl 10

3шт.

12

250842A3

BAR ASSY.

North American Models -JAF0257312, European Models -JAF0274307

1шт.

13

318038A1

BAR ASSY.

North American Models JAF0257313-JAF0311356, European Models JAF0274308-JAF0274359

1шт.

13a

419844A1

BAR

North American Models JAF0311357-, European Models JAF0274360-

1шт.

14

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

15

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

16

189787A2

SHOCK ABSORBER

1шт.

17

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

2шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

19

D143415

SNAP RING,0.50” ID, Klipring

1/2

2шт.

20

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

22

353-400

PLUG,Dome, .250" hole, Nylon

If used

2шт.

23

254307A1

CLIP

2шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, Manual, Operators, Replaces L11541, L18331

1шт.

28

293887A1

COVER

Models Without Lift Hooks, 70 mm (2-3/4 in)

2шт.

29

R46463

SCREW,0.18" x 0.75"

Manual Retention

1-2шт.

30

313149A1

SEAL

Screen Frame, 355 mm (14 in)

2шт.

31

313150A1

SEAL

Toe Guard, 774 mm (30-1/2 in)

2шт.

33

315083A1

SEALING STRIP

Window Frame, 610 mm (40 inch), Europe Only

1шт.

34

R46464

CASE

1шт.

35

353-402

PLUG,Dome, .375" hole, Nylon

2шт.

36

353-411

PLUG,Dome, 1.000" hole, Nylon

3шт.

37

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32

3шт.

38

495-31020

WASHER,#10

(13/64" x 15/32" x 3/64")

3шт.

39

414635A1

COVER,25.4mm OD x 0.51mm Thk

Gray, 25.4 mm (1 in), If Used

2шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

Выбрано товаров: 37
