Запчасти Case 95XT (09-33) - SEAT SUSPENSION (09) - CHASSIS/ATTACHMENTS

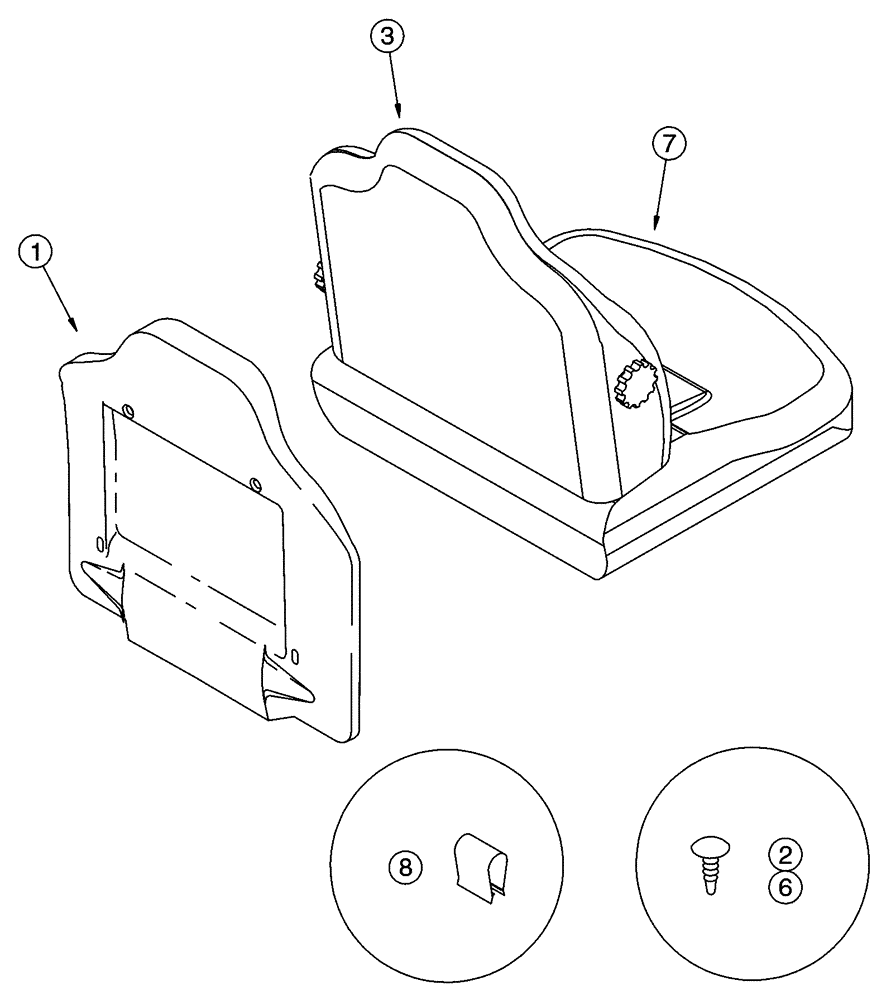

Схема запчастей Case 95XT - (09-33) - SEAT SUSPENSION (09) - CHASSIS/ATTACHMENTS
3
2
1
7
6
8

Артикул

Название

Примечание

Количество

308307A1

SEAT

Consists Of 1 - 8, Includes Pages 9-93 - 9-99, Replaces 222023A2 & 302138A1

1шт.

1

291770A1

PANEL

Backrest

1шт.

291764A1

ASSEMBLY

Backrest Pad, Consists Of 2 - 5

1шт.

291760A1

ASSEMBLY

Consists Of 2

1шт.

2

NSS

NOT SOLD SEPARAT

Clip

7шт.

3

NSS

NOT SOLD SEPARAT

Cushion, Backrest

1шт.

4

NSS

NOT SOLD SEPARAT

Emblem, Lumbar, Not Illustrated

1шт.

5

NSS

NOT SOLD SEPARAT

Emblem, Recliner, Not Illustrated

1шт.

291763A1

ASSEMBLY

Cushion, Seat, Consists Of 6 - 8

1шт.

291760A1

ASSEMBLY

Consists Of 6

1шт.

6

NSS

NOT SOLD SEPARAT

Clip

7шт.

7

NSS

NOT SOLD SEPARAT

Cushion, Seat

1шт.

291762A1

ASSEMBLY

Consists Of 8

1шт.

8

NSS

NOT SOLD SEPARAT

Clip

2шт.

Выбрано товаров: 14
