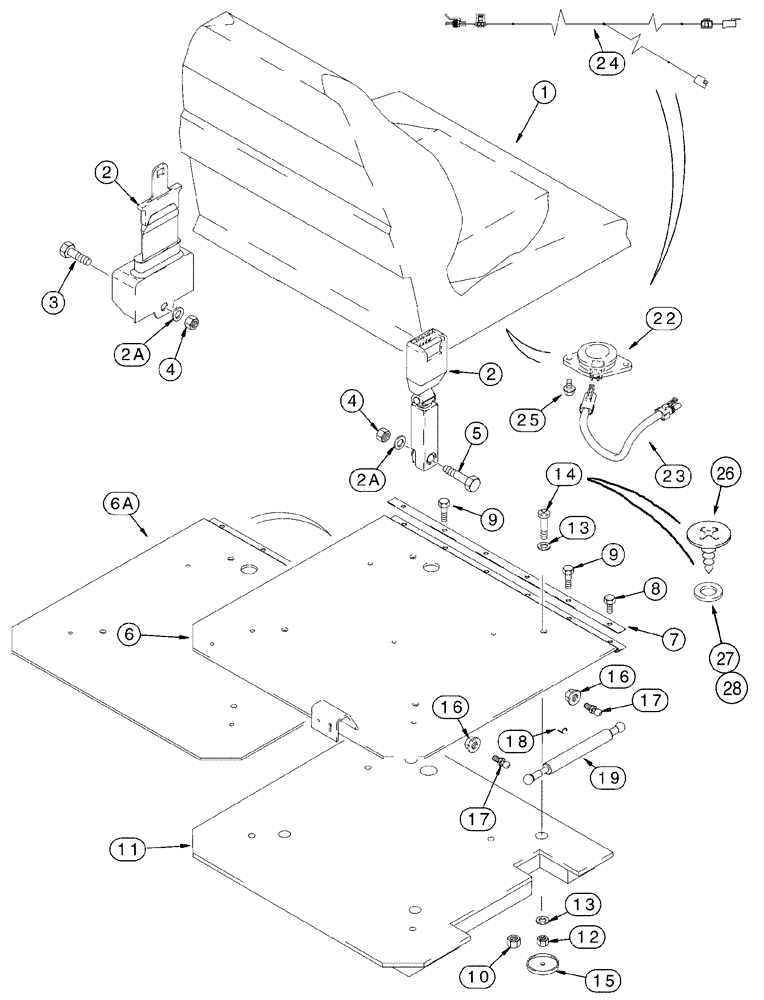

Запчасти Case 95XT (09-31) - SEAT MOUNTING, NON-SUSPENSION (09) - CHASSIS/ATTACHMENTS

1

308306A2

SEAT

Includes 22, Replaces 232017A1 & 302139A1, 308306A1

1шт.

2

249116A1

SAFETY BELT ,50.80 mm W

Includes 2A

1шт.

2a

NSS

NOT SOLD SEPARAT

Washer

2шт.

3

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

4

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

5

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

6

199308A5

LARGE PLATE

PLATE, LARGE -JAF0238055

1шт.

6a

302136A1

LARGE PLATE

PLATE, LARGE JAF0238056-

1шт.

7

259875A1

CROSSMEMBER

1шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

9

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

2шт.

10

832-41308

NUT,M8 x 1.25, Cl 10

4шт.

11

245174A1

INSULATOR

1шт.

12

824-1405

NUT,M5, Cl 5

If Equipped

5шт.

13

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16"), If Equipped

10шт.

14

840-1535

SCREW,Pan, M5 x 35mm, Cl 4.8

If Equipped

5шт.

15

E99641

CAP

If Equipped

5шт.

16

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

17

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

18

254307A1

CLIP

2шт.

19

189787A2

SHOCK ABSORBER

1шт.

291768A1

ASSEMBLY

Slide, Consists Of 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

Slide, Left Hand, Order 291768A1, Not Illustrated, See Page(s) 9-99, Ref. 17

1шт.

21

NSS

NOT SOLD SEPARAT

Slide, Right Hand, Order 291768A1, Not Illustrated, See Page(s) 9-99, Ref. 18

1шт.

22

242306A2

SWITCH

Operator Presence, Replaces 291773A1, 242306A1

1шт.

23

302137A1

HARNESS

Seat, Two Connector, JAF0238056-, Replaces 291774A1

1шт.

24

242132A2

HARNESS

Seat, Three Connector, Used on Models with Interlock Sensor Switch, -JAF0238055, See Page(s) 4-19, 4-27

1шт.

25

NSS

NOT SOLD SEPARAT

Bolt

4шт.

26

348452A1

FASTENER,Push-In, 37mm L, Nylon

7,14 hole dia, If Equipped

5шт.

27

D136108

WASHER

If Equipped

5шт.

28

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

7,14 ID x 44,5 OD, If Equipped

5шт.
