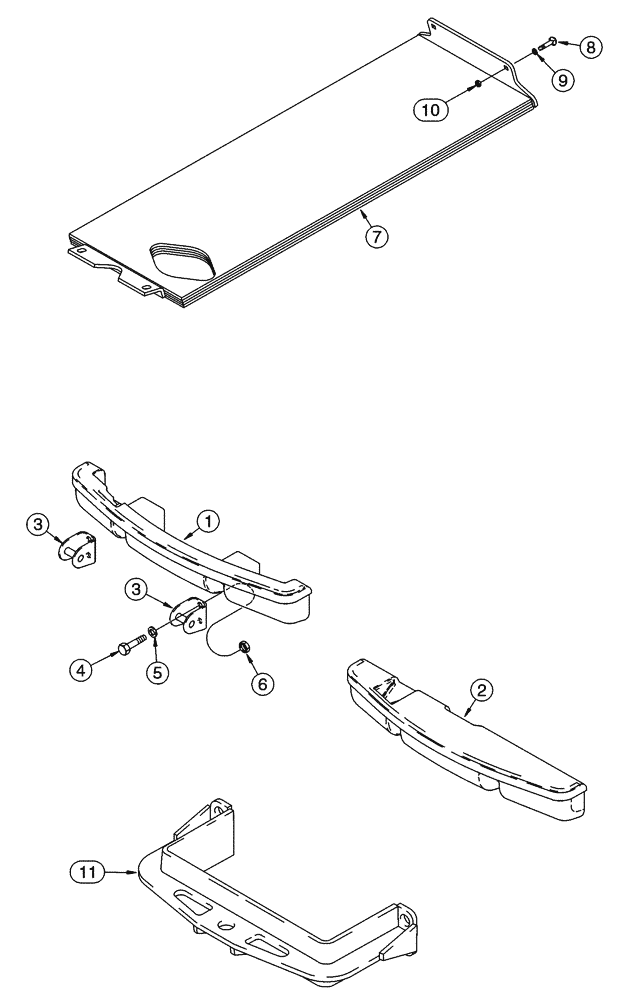

Запчасти Case 95XT (09-30) - DRAWBAR COUNTERWEIGHTS (09) - CHASSIS/ATTACHMENTS

1

254617A1

BUMPER

Bumper, Rear, If Used

1шт.

2

248143A1

BALANCER

Heavy, Bumper, Rear, If Used

1шт.

3

248938A1

SUPPORT

If Equipped

2шт.

4

827-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

4шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

6

832-41320

NUT,M20 x 2.5, Cl 10

4шт.

7

192719A1

WEIGHT

Front

1шт.

8

811-16050

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 50mm, Cl 8.8

2шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

10

832-41316

NUT,M16 x 2, Cl 10

2шт.

11

258483A1

DRAWBAR

If Equipped

1шт.

12

227998A1

BALANCER

1шт.
