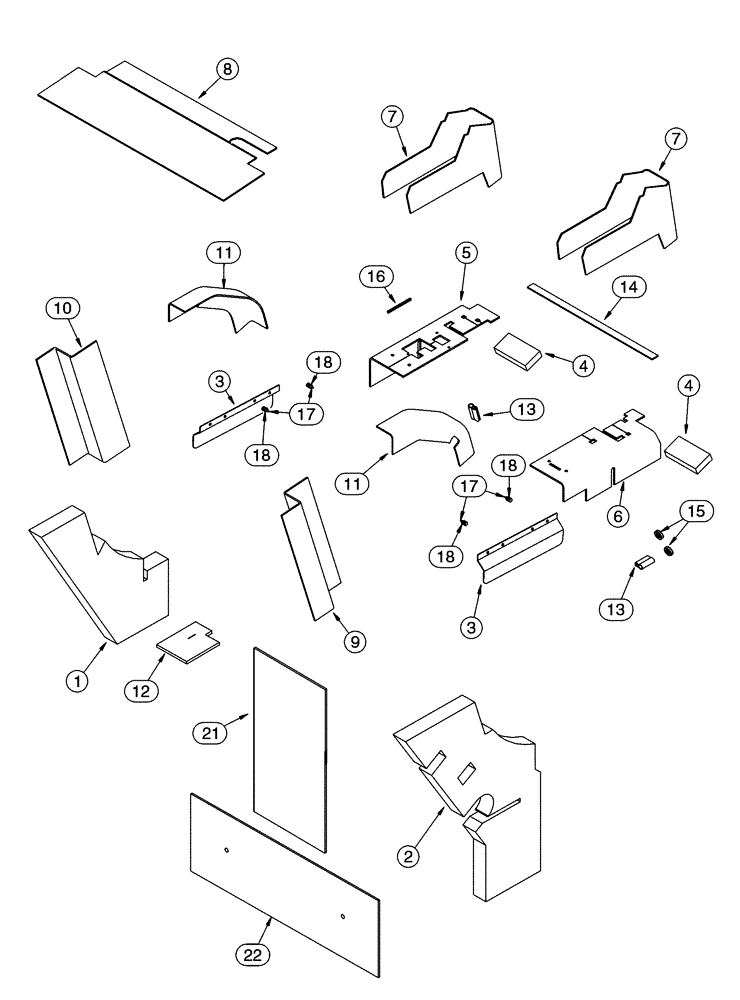

Запчасти Case 95XT (09-29) - SOUNDPROOFING PANELS (EUROPE) (09) - CHASSIS/ATTACHMENTS

1

292789A1

INSULATOR

Left Hand Rear

1шт.

2

292790A1

INSULATOR

Right Hand Rear

1шт.

3

294894A1

SHEET

Overlap Extension

2шт.

4

295007A1

SEAL

135 mm (5-3/8 inch), Console

2шт.

5

308877A1

PAD

Console Barrier, Left Hand

1шт.

6

308879A1

PAD

Console Barrier, Right Hand

1шт.

7

308917A1

PAD

Console

2шт.

8

309007A1

INSULATOR

Hood Extension

1шт.

9

309009A1

INSULATOR

Extension, Right Hand

1шт.

10

309010A1

INSULATOR

Extension, Left Hand

1шт.

11

309011A1

SHEET

Upper Corner

2шт.

12

311222A1

LARGE PLATE

PLATE, LARGE Loader Lock Barrier

1шт.

13

311258A1

SEAL

Floor Plate, 50 mm (2 inch)

2шт.

14

311869A1

BAND

Floor Plate, 520 mm (20-1/2 inch)

1шт.

15

313231A1

BAND

Cable Seal, 30 mm (1-1/4 inch)

2шт.

16

313278A1

BAND

Lock Slot Cover, 50 mm (2 inch)

1шт.

17

779-14619

SELF-TAP SCREW,Hex Hd, M6.3 x 19

M6,3 st x 19

4шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

21

318165A1

INSULATOR

Upper

1шт.

22

318166A1

INSULATOR

Lower

1шт.
