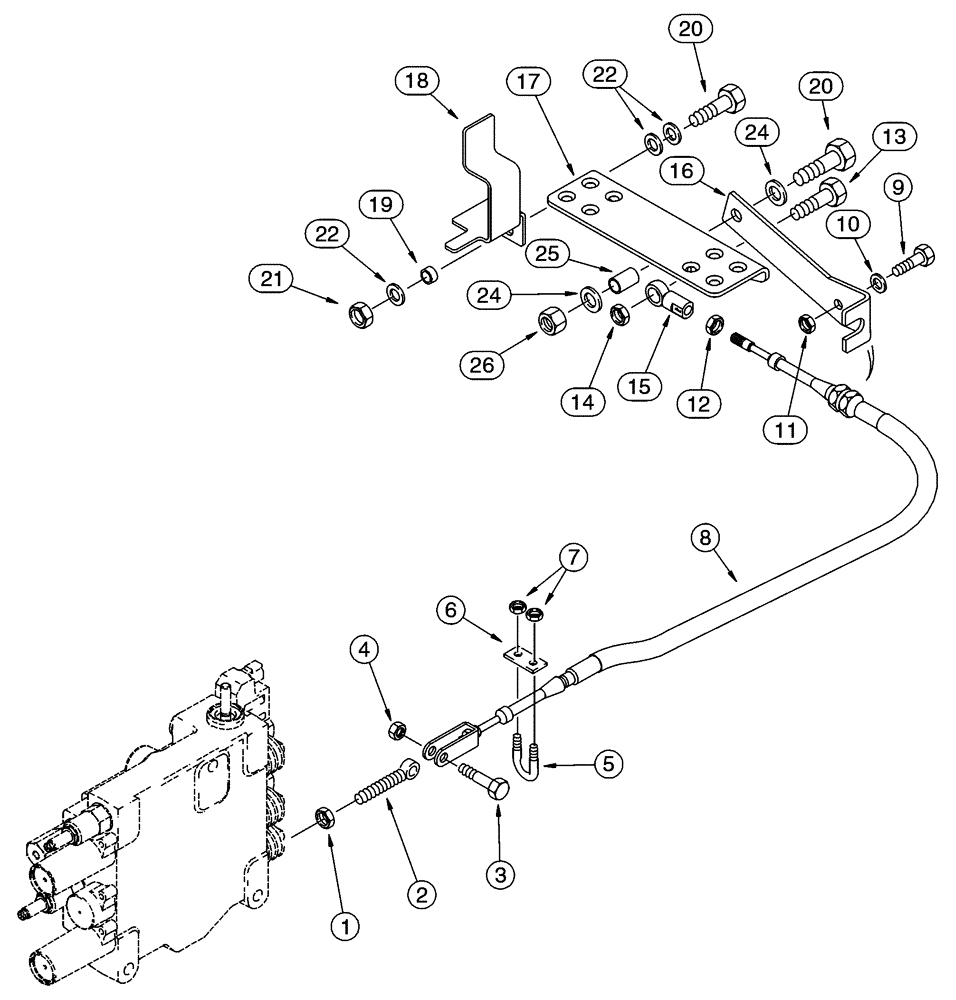

Запчасти Case 95XT (09-20) - LINKAGE, AUXILIARY SYSTEM, MODELS W/PEDAL LOCK ON LEFT HAND SIDE OF PEDAL (09) - CHASSIS/ATTACHMENTS

1

425-116

NUT,3/8" - 24, Gr 5

1шт.

2

D144606

BALL JOINT

1шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

4

231-4146

NUT,3/8"-16, GB

1шт.

5

194281A1

U-BOLT

BOLT "U"

1шт.

6

H373779

LARGE PLATE

PLATE, LARGE

1шт.

7

832-41306

NUT,M6 x 1, Cl 10

2шт.

8

253887A1

CABLE

1шт.

9

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

11

832-41310

NUT,M10 x 1.5, Cl 10

1шт.

12

425-116

NUT,3/8" - 24, Gr 5

1шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

14

232-4116

NUT,3/8"-16, GC

1шт.

15

S108030

JOINT

1шт.

16

253886A1

SUPPORT

1шт.

17

253888A1

PEDAL

1шт.

18

251537A2

SUPPORT

1шт.

19

251658A1

BUSHING

1шт.

20

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

21

832-41310

NUT,M10 x 1.5, Cl 10

1шт.

23

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

24

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

2шт.

25

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

1шт.

26

832-41312

NUT,M12 x 1.75, Cl 10

1шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.
