Запчасти Case 95XT (02-15) - TURBOCHARGER SYSTEM, 4T-390 ENGINE (NORTH AMERICA -JAF0237963 / EUROPE) (02) - ENGINE

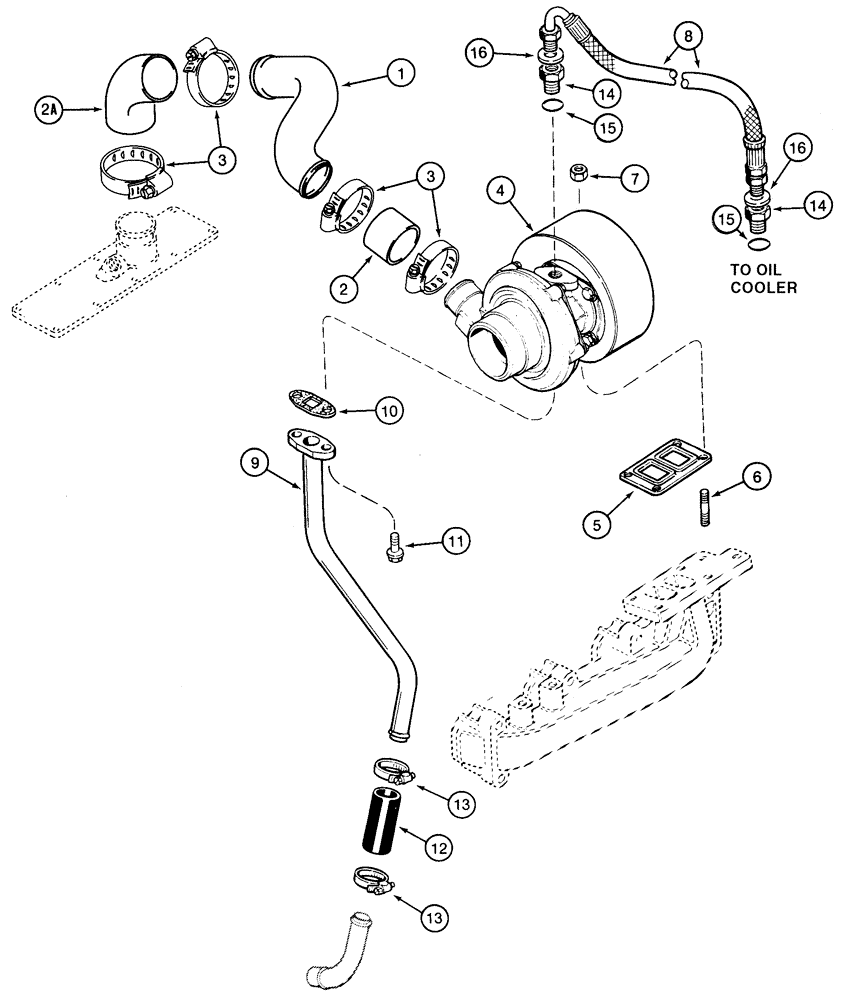

Схема запчастей Case 95XT - (02-15) - TURBOCHARGER SYSTEM, 4T-390 ENGINE (NORTH AMERICA -JAF0237963 / EUROPE) (02) - ENGINE
16
8
7
2
3
15
14
5
12
13
3
16
6
4
14
11
15
1
13
10
9
2a

Артикул

Название

Примечание

Количество

1

J931784

TUBE,50.8 mm OD x 255.98 mm L

1шт.

2

J916166

INTAKE AIR HOSE

71 mm (2-7/8 in)

1шт.

2a

J933026

LARGE HOSE

HOSE, 76 mm (3 inch) long, air intake

1шт.

3

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

4

REF

INSTRUCTION

Turbocharger Assy, See Figure 2-17

1шт.

5

J901356

GASKET,0.5mm Thk

1шт.

6

J818823

STUD

4шт.

7

J818824

FLANGE NUT

M10

4шт.

8

J913759

HOSE

1шт.

9

J934064

TUBE,22.22 mm OD x 393, 131 mm L

Replaces J903740

1шт.

10

J931350

GASKET

No Longer Available, Order J942725

1шт.

10

J942725

GASKET

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

12

J903745

LARGE HOSE

HOSE,LARGE 76 mm (3 in)

1шт.

13

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

14

J919687

HYD CONNECTOR

Includes 15

2шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

16

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

Выбрано товаров: 18
