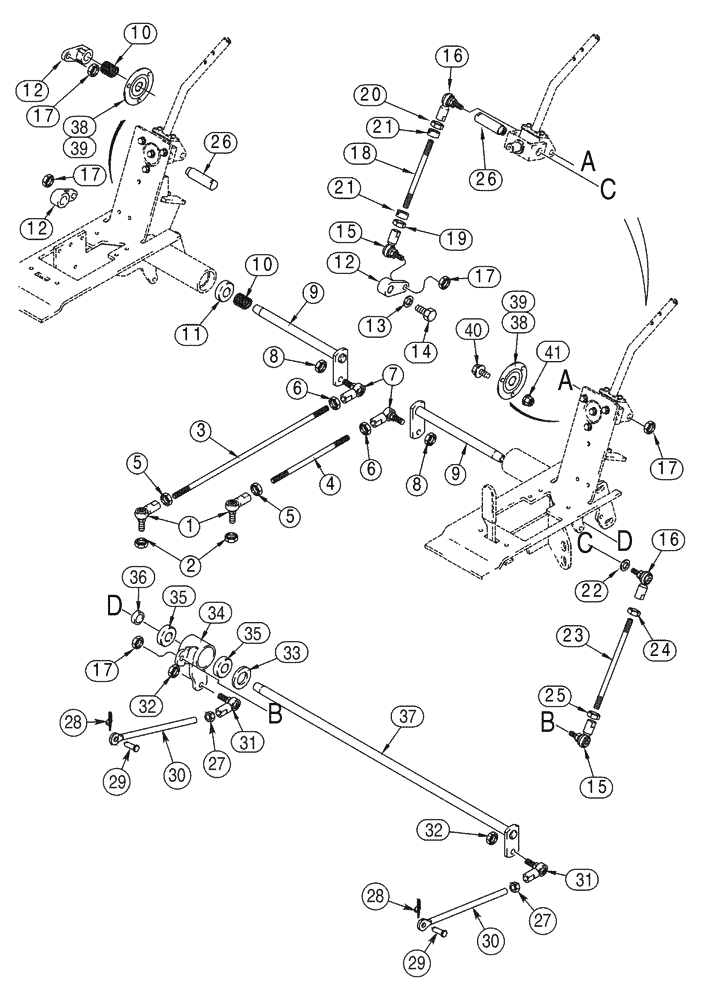

Запчасти Case 95XT (09-17) - LINKAGE, LOADER & GROUND DRIVE, MODELS W/O FOOT CONTROLS (N.A. JAF0311357- / EUROPE JAF0274360-) (09) - CHASSIS/ATTACHMENTS

1

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

3/8 fem

2шт.

2

232-4616

LOCK NUT,3/8"-24, GC

2шт.

3

144470A1

STEM

411 mm

1шт.

4

259880A1

STEM

240 mm

1шт.

5

425-116

NUT,3/8" - 24, Gr 5

2шт.

6

125-11011

NUT,3/8"-24, G5, LH

2шт.

7

230426A1

BALL JOINT,3/8" - 24 x 1-3/5"

2шт.

8

232-4616

LOCK NUT,3/8"-24, GC

2шт.

9

238968A3

SHAFT

2шт.

10

229383A1

SPRING

3шт.

11

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

4шт.

12

237773A1

LEVER ASSY.

3шт.

14

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

15

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

3/8 fem

4шт.

16

230426A1

BALL JOINT,3/8" - 24 x 1-3/5"

4шт.

17

232-4616

LOCK NUT,3/8"-24, GC

6шт.

18

187234A2

ROD

2шт.

19

425-116

NUT,3/8" - 24, Gr 5

2шт.

20

125-11011

NUT,3/8"-24, G5, LH

2шт.

21

255561A1

COLLAR ASSY.

4шт.

23

180682A1

STEM

185,5 mm

2шт.

24

125-11011

NUT,3/8"-24, G5, LH

2шт.

25

425-116

NUT,3/8" - 24, Gr 5

2шт.

26

237774A1

SHAFT

2шт.

27

425-116

NUT,3/8" - 24, Gr 5

2шт.

28

417860A1

COTTER PIN

2шт.

29

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

2шт.

30

417363A1

LINK

2шт.

31

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

3/8 fem

2шт.

32

232-4616

LOCK NUT,3/8"-24, GC

2шт.

33

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

239908A4

CRANK

Assembly, Includes 34, 35

1шт.

34

318531A2

CRANK

1шт.

35

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

2шт.

36

240621A1

SPACER

1шт.

37

275022A1

SHAFT

1шт.

38

112380A1

BEARING ASSY

Incl 39

2шт.

39

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

1шт.

40

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

41

825-5146

SERRATED NUT,M6, Flg Ser

6шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
