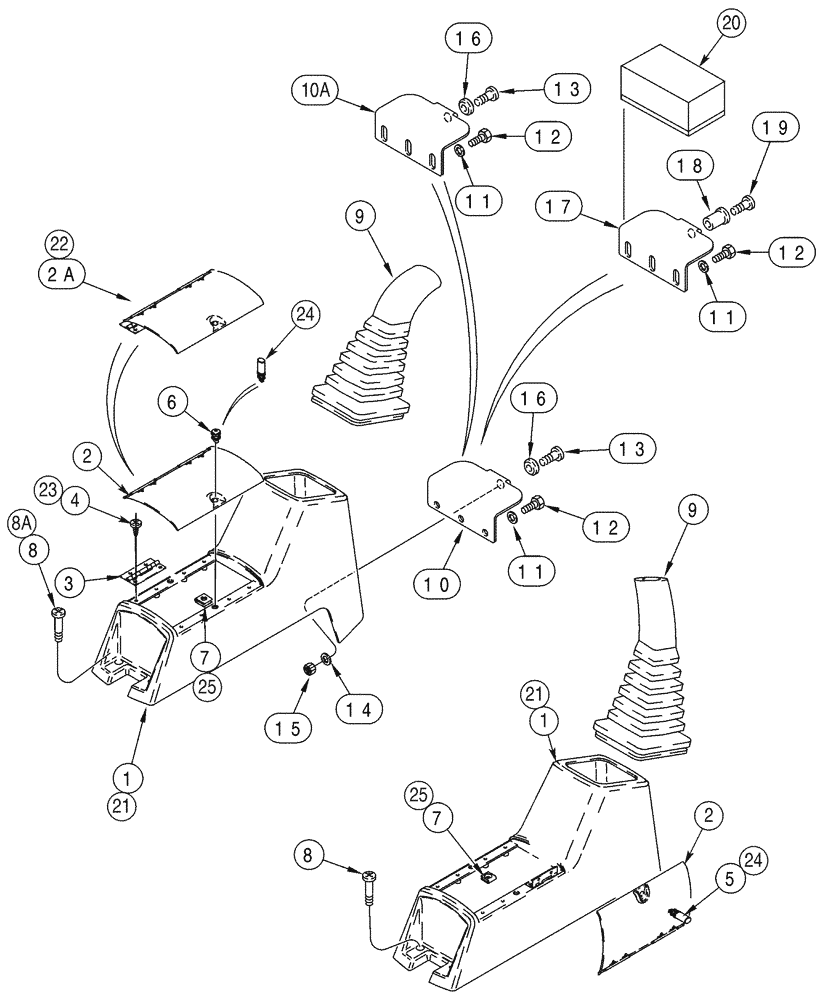

Запчасти Case 95XT (09-12) - CONSOLE, CONTROL (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
236362A2
BRACKET
Left-Hand, Includes 1 - 4, 6, 7, Gray, If Used
1шт.
236363A2
BRACKET
Right-Hand, Includes 1 - 5, 7, Gray, If Used
1шт.
1
192298A1
CONSOLE
Control, Gray
1шт.
2
225636A1
COVER
No Longer Available, Order 2A
1шт.
2a
298049A2
COVER
Replaces 298049A1, Gray
1шт.
3
225621A2
No Longer Available, Order 2A
2шт.
4
260-1338
SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"
No. 6 st x 1/2
4шт.
5
236536A1
ARRESTER
Console, Right Hand
1шт.
6
236537A1
SCREW
Console, Left Hand
1шт.
7
236535A1
CLIP,ELECTRICAL
1шт.
8
840-1516
SCREW,Pan, M5 x 16mm, Cl 4.8
4шт.
8a
840-1525
SCREW,Pan, M5 x 25mm, Cl 4.8
Models with Air Conditioning
4шт.
9
192654A2
BELLOWS
2шт.
10
192476A1
SUPPORT
Front, Console, No Longer Available, Order 192476A2, Ref. 10A
2шт.
10a
192476A2
SUPPORT
11.11 mm hole, Front, Console, No Longer Available, Order 314570A1, Ref. 17
2шт.
11
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
4шт.
12
614-6020
BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd
4шт.
13
840-1520
SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8
If Used
2шт.
14
495-11028
WASHER,1/4", SAE
(9/32 x 5/8 x 1/16"), If used
2шт.
15
832-10405
NUT,M5 x .8, Cl 8
If used
2шт.
16
49561
GROMMET,1/4" ID x 7/16" Groove Dia
If Used
2шт.
17
314570A1
SUPPORT
9.52 mm hole, Front, Console, If Equipped
2шт.
18
D122634
ISOLATOR,12.7mm OD x 14.1mm L
2шт.
19
190-103
SCREW,Cross Pan Hd, #10 - 32 x 1"
2шт.
20
295007A1
SEAL
135 mm (5-3/8 inch), Console, Models With Heaters and Air Conditioning
2шт.
426112A1
CONSOLE
Left-Hand, Includes 21 - 25, Tan, If Used
1шт.
426111A1
CONSOLE
Right-Hand, Includes 21 - 25, Tan, If Used
1шт.
21
426110A1
CONSOLE
Control, Tan
1шт.
22
426109A1
COVER ASSY
Tan; Incl. 22A
1шт.
22a
87396058
Hinge
2шт.
23
260-1338
SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"
No. 6 st x 1/2
4шт.
24
236536A1
ARRESTER
Left Hand and Right Hand
1шт.
25
236535A1
CLIP,ELECTRICAL
1шт.
Выбрано товаров: 33
