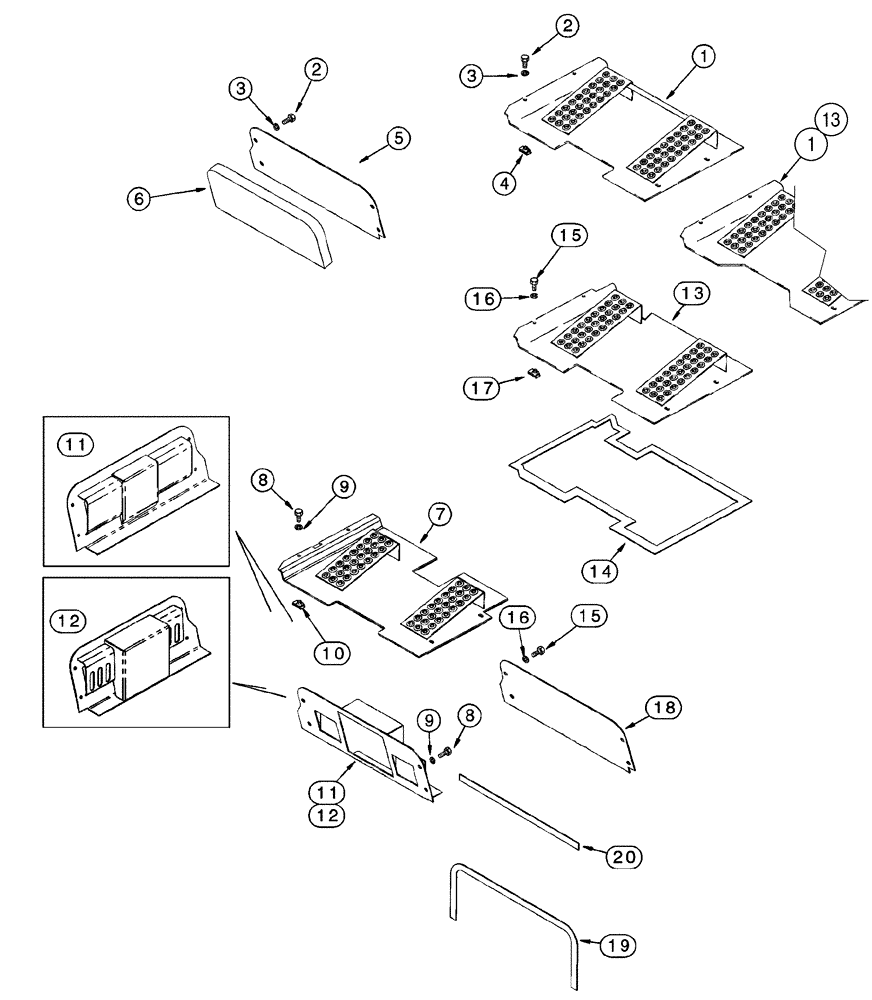

Запчасти Case 95XT (09-10) - PLATES, FLOOR (09) - CHASSIS/ATTACHMENTS

1

280841A1

FLOOR

For Models Without Heater

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

4

122158A1

NUT,M8, U

4шт.

5

246441A2

LARGE PLATE

PLATE, LARGE Heel Plate

1шт.

6

249026A1

INSULATOR

If Equipped, Models Without Heater

1шт.

7

279112A1

FLOOR

For Models With Floor Heater

1шт.

8

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

10

122158A1

NUT,M8, U

4шт.

11

247680A2

LARGE PLATE

PLATE, LARGE Heel Plate, See Page(s) 9-131, Used With REF 1, 232676A3

1шт.

12

304973A2

COVER

Heel Plate, See Page(s) 9-133, Used With REF 21, 303239A1

1шт.

13

294438A1

FLOOR

For Models With Deluxe Heater and Air Conditioning

1шт.

14

313320A1

SEAL

1шт.

15

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

17

122158A1

NUT,M8, U

4шт.

18

246441A2

LARGE PLATE

PLATE, LARGE Heel Plate

1шт.

19

313319A1

SEAL

Heel Plate Cover

1шт.

20

313321A1

SEAL

560 mm (22 in), Heel Plate

1шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.
