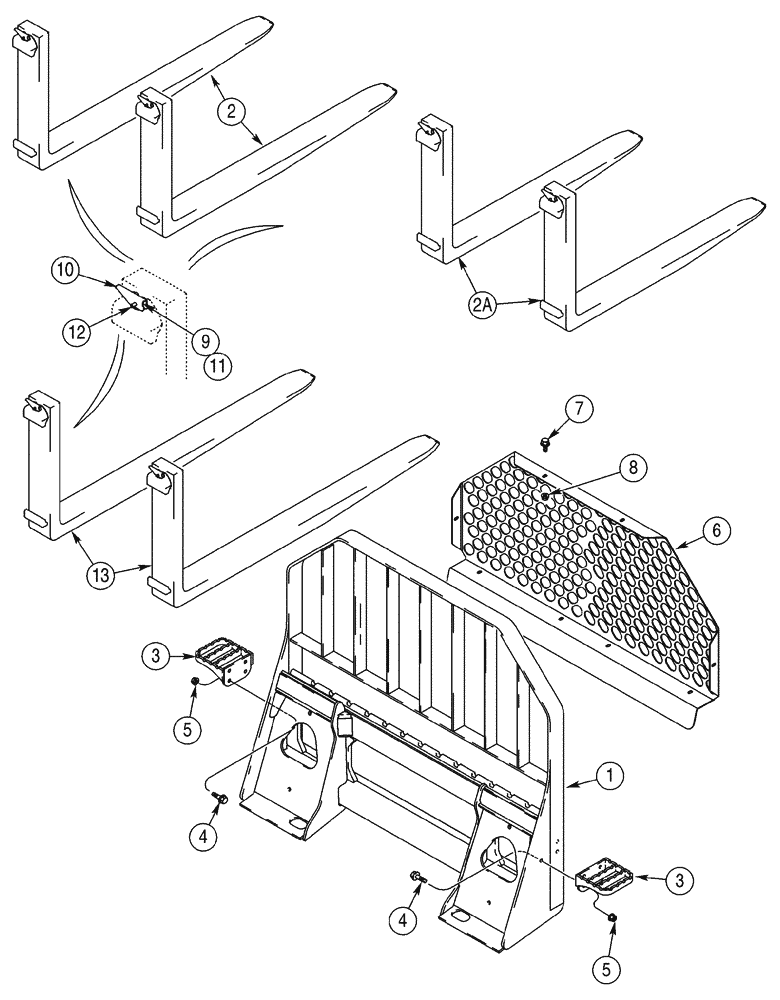

Запчасти Case 95XT (09-08) - PALLET FORK (09) - CHASSIS/ATTACHMENTS

1

239290A1

RACK

1шт.

2

238548A1

ARM

Includes 9 - 12, No Longer Available, Order 351003A1, Ref. 2A

2шт.

2a

351003A1

TINE

1070 mm, 42 Inch, If Used

2шт.

3

259096A1

STEP

2шт.

4

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

5

825-51410

FLANGE NUT,M10, Flg Ser

6шт.

6

283788A1

SCREEN

If Equipped

1шт.

7

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

8шт.

8

825-5148

SERRATED NUT,M8, Flg Ser

8шт.

9

357338A1

PIN,15.5mm OD x 52mm L

Stop

1шт.

10

357339A1

LEVER

1шт.

11

357340A1

COMPRESSION SPRING

1шт.

12

838-3528

PIN,M5 x 28, Coiled

1шт.

13

334857A1

FORK

1220 mm, 48 Inch, If Used

2шт.
