Запчасти Case 95XT (09-07) - LOADER BUCKETS (09) - CHASSIS/ATTACHMENTS

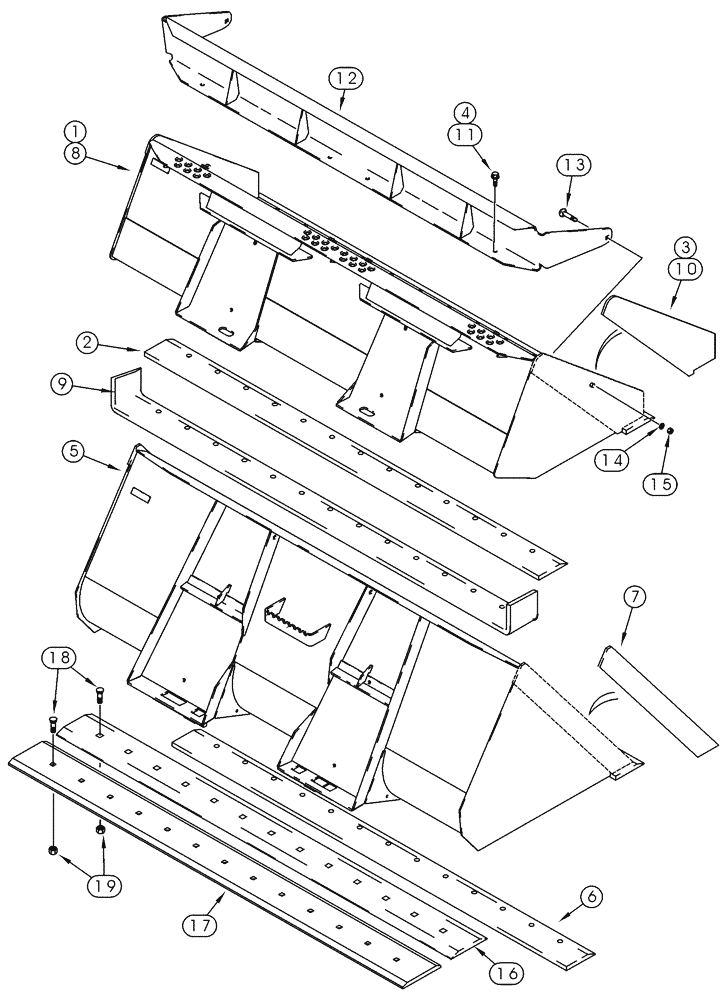

Схема запчастей Case 95XT - (09-07) - LOADER BUCKETS (09) - CHASSIS/ATTACHMENTS
5
18
14
7
16
17
10
9
15
19
2
8
1
13
3
4
12
11
6

Артикул

Название

Примечание

Количество

1

192538A2

BUCKET

2083 mm (82 in) Wide Bucket, Machinery Item, Includes 2, 3

1шт.

2

183948A2

EDGE, CUTTING

Welded On

1шт.

3

245109A2

EDGE, CUTTING

Side, Welded On

2шт.

4

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

4шт.

5

190079A1

BUCKET

Light Material, 2083 mm (82 in), Machinery Item, Includes 6, 7

1шт.

6

183948A2

EDGE, CUTTING

Welded On

1шт.

7

H438935

EDGE, CUTTING

Side, Welded On

2шт.

8

245077A2

BUCKET

Heavy Duty, 2083 mm (82 in), Machinery Item, Includes 9 - 11

1шт.

9

245107A2

EDGE, CUTTING

Welded On

1шт.

10

245109A2

EDGE, CUTTING

Side, Welded On

2шт.

11

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

4шт.

12

192972A2

RISER

Extension, 2083 mm (82 in) Wide Bucket, Used With 192538A2, 245077A2

1шт.

13

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

12 x 35 mm

2шт.

14

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

15

829-1412

NUT,M12, Cl 10.9

2шт.

16

299336A1

EDGE, CUTTING

Bolt-On, 2083 mm (82 in), Ten Hole Pattern

1шт.

17

248932A1

EDGE, CUTTING

Bolt-On, 2083 mm (82 in), Thirteen Hole Pattern

1шт.

18

20-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

Used with 16

10шт.

18

420-21036

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

Used with 17

13шт.

19

329-1012

NUT,3/4"-10, G8

Used with 16

10шт.

19

329-1010

NUT,5/8"-11, G8

Used with 17

13шт.

Выбрано товаров: 21
