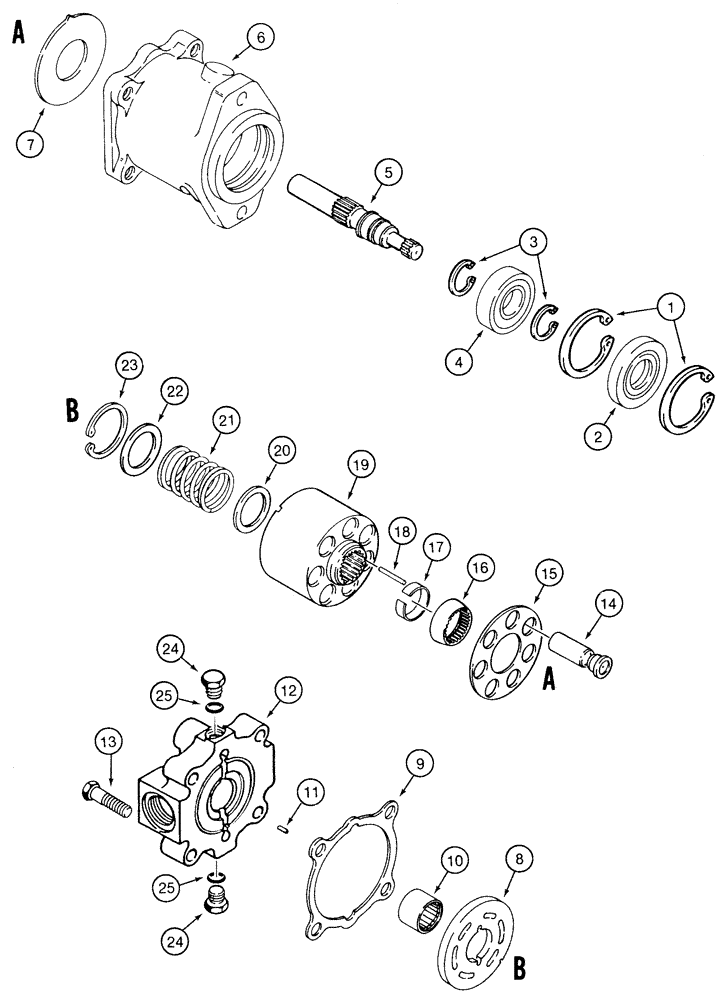

Запчасти Case 95XT (08-74) - TRENCHER MOTOR, DRIVE (NORTH AMERICA) (08) - HYDRAULICS

H673186

HYDRAULIC MOTOR

Consists Of 1 - 25

1шт.

1

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

2

N14103

SEAL

1шт.

3

100-11137

SNAP RING,#137, Ext

2шт.

4

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

1шт.

5

H437040

SHAFT

1шт.

6

NSS

NOT SOLD SEPARAT

Housing

1шт.

7

N14617

WASHER

1шт.

8

N13197

PLATE

1шт.

9

292233A1

GASKET,0.79mm Thk

1шт.

10

1277297C1

NEEDLE BEARING

1шт.

11

138-217

LOCK PIN,3/16" OD x 7/16" L, Slotted

1шт.

12

NSS

NOT SOLD SEPARAT

Cover

1шт.

13

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

115952A1

SET

Consists Of 14 - 23

1шт.

14

NSS

NOT SOLD SEPARAT

Piston

7шт.

15

NSS

NOT SOLD SEPARAT

Retainer

1шт.

16

115942A1

GUIDE

1шт.

17

115943A1

SNAP RING

1шт.

18

110873A1

PIN,2.38mm OD x 33.53mm L

3шт.

19

115944A1

CYLINDER BLOCK

1шт.

20

115946A1

WASHER

1шт.

21

115948A1

SPRING

1шт.

22

115950A1

WASHER

1шт.

23

NSS

NOT SOLD SEPARAT

Ring

1шт.

24

214389

PLUG,3/4" - 16 ORB

Includes Ref. 25

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
