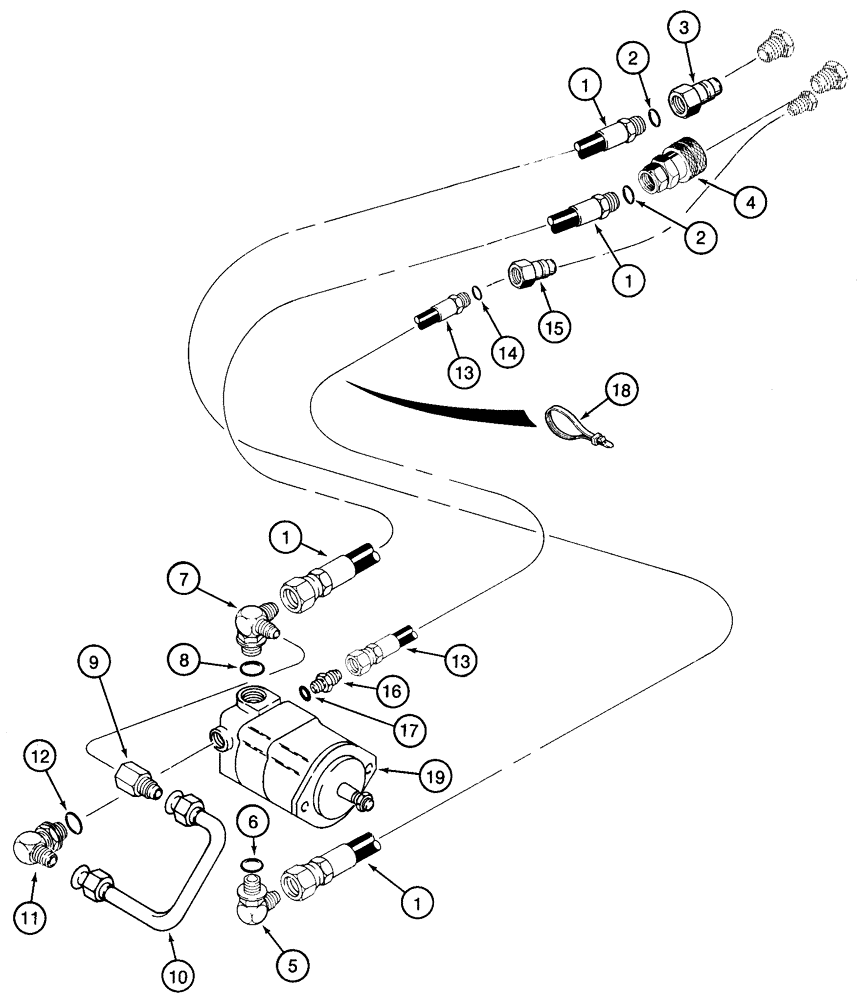

Запчасти Case 95XT (08-71) - HYDRAULIC SYSTEM, TRENCHER DRIVE (NORTH AMERICA) (08) - HYDRAULICS

1

276083A1

HOSE ASSY.

1650 mm (65 in), Includes 2

2шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

254293A1

QUICK MALE COUPLING

Male

1шт.

4

198474A1

COUPLING

Female, For Repair Order 4A

1шт.

4a

255855A1

GASKET KIT

Not Illustrated

1шт.

5

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Includes 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

129037A1

FITTING,1-5/16" - 12 ORB x 1-5/16" - 12 JIC x 1-1/16" - 12 JIC

Includes 8

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

9

111975A1

FITTING

1шт.

10

122267A1

TUBE,12.7 mm OD, 143.9, 88.9 mm Length

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

276084A2

HOSE ASSY.

1650 mm (65 in), Drain, Includes 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

143431A1

COUPLING, QUICK, FEM

Female

1шт.

16

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

19

H673186

HYDRAULIC MOTOR

See Page(s) 8-253

1шт.
