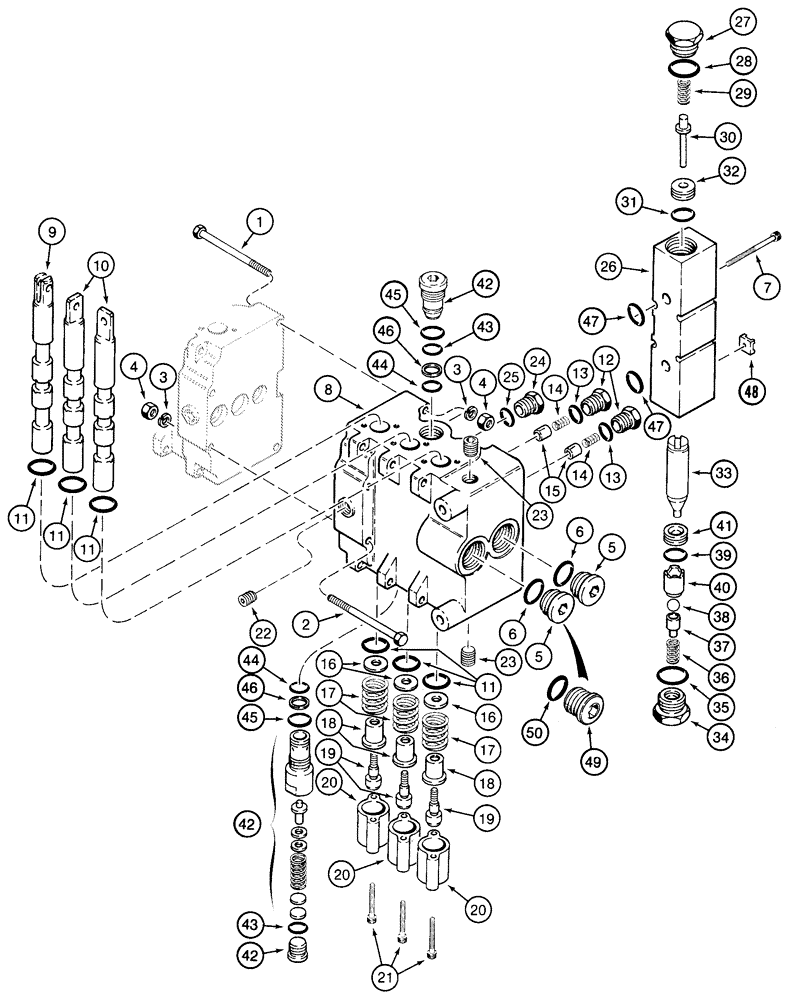

Запчасти Case 95XT (08-64) - VALVE, CONTROL - BACKHOE (NORTH AMERICA), D125 BACKHOE, OUTLET SECTION (08) - HYDRAULICS

H674500

VALVE

Backhoe, Consists Of 8-217 - 8-227

1шт.

1

414-448

BOLT,Hex, 1/4" - 28 x 3", Gr 5

2шт.

2

414-436

BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5

2шт.

3

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

4

425-114

NUT,1/4"-28, G5

4шт.

5

86625138

PLUG,7/18" - 14

Includes Ref. 6

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

62-31040

HEX SOC SCREW,#10 - 32 x 2 1/2"

4шт.

H674528

HYD VALVE SECTION

Consists Of 8 - 25

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

NSS

NOT SOLD SEPARAT

Spool

1шт.

10

NSS

NOT SOLD SEPARAT

Spool

2шт.

11

H438030

O-RING

5/8 x 13/16

6шт.

H438024

SET

Consists Of 12 - 15

2шт.

12

H438231

PLUG

1шт.

14

NSS

NOT SOLD SEPARAT

Spring

1шт.

15

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

H438021

SET

Consists Of 16 - 21

3шт.

16

NSS

NOT SOLD SEPARAT

Washer

1шт.

17

N9539

TENSION SPRING

1шт.

18

NSS

NOT SOLD SEPARAT

Spacer

1шт.

19

NSS

NOT SOLD SEPARAT

Bolt

1шт.

20

NSS

NOT SOLD SEPARAT

Cap

1шт.

21

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

2шт.

22

H438960

PLUG

1шт.

23

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

2шт.

24

H438231

PLUG

Includes 25

1шт.

100405A2

BLOCK ASSY.

Consists Of 26 - 41

1шт.

26

NSS

NOT SOLD SEPARAT

Body

1шт.

111935A1

SET OF PARTS

Consists Of 27 - 33

1шт.

27

113751A1

PLUG

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

113747A1

SPRING

1шт.

30

H438334

VALVE

1шт.

31

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

32

113750A1

SEAT

1шт.

33

113749A1

PLUNGER

1шт.

34

H438031

PLUG

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

36

102712A1

SPRING

1шт.

37

H438032

SLEEVE VALVE

1шт.

38

113748A1

BALL

1шт.

39

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

40

H438033

CUP

1шт.

41

113746A1

SEAT

1шт.

H438945

VALVE, PRESSURE RELI

EF Consists Of 42 - 46

2шт.

42

NSS

NOT SOLD SEPARAT

Valve, Relief

1шт.

H674536

O-RING

Consists Of 43 - 46

1шт.

44

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

45

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

46

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

47

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

48

H438941

ORIFICE

1шт.

49

H438953

PLUG

If Equipped, Includes 50

1шт.

50

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

43

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
