Запчасти Case 95XT (08-60) - HYDRAULIC SYSTEM - BACKHOE BUCKET CYLINDER (NORTH AMERICA), D125 BACKHOE, W/HOSES AT CONTROL VALVE (08) - HYDRAULICS

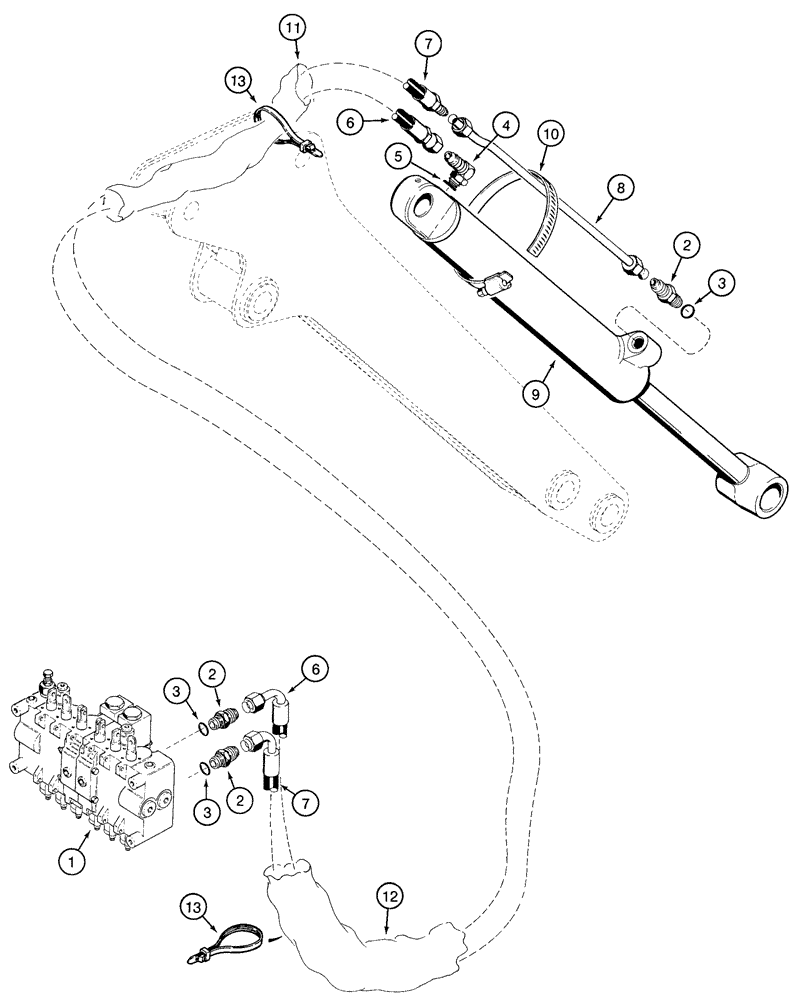

Схема запчастей Case 95XT - (08-60) - HYDRAULIC SYSTEM - BACKHOE BUCKET CYLINDER (NORTH AMERICA), D125 BACKHOE, W/HOSES AT CONTROL VALVE (08) - HYDRAULICS
6
12
13
7
8
3
5
10
1
7
2
3
2
13
3
2
6
9
11
4

Артикул

Название

Примечание

Количество

1

H674500

VALVE

Backhoe, See Page(s) 8-217 - 8-227

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H439269

ELBOW

Includes 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

H438685

HOSE

3600 mm (141-7/8 in)

1шт.

7

H438227

HOSE

3700 mm (145-3/4 in)

1шт.

8

H674567

PIPE,12.7 mm OD x 597 mm L

1шт.

9

1346397C2

CYLINDER ASSY.

70 ID x 559 mm strk, Bucket, See Page(s) 8-241

1шт.

10

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in dia

1шт.

11

D132054

SLEEVE

1шт.

12

H439063

SLEEVE

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

3шт.

Выбрано товаров: 13
