Запчасти Case 95XT (08-51) - HYDRAULIC SYSTEM - BACKHOE SUPPLY & RETURN (NORTH AMERICA), D125 BACKHOE, IF USED (08) - HYDRAULICS

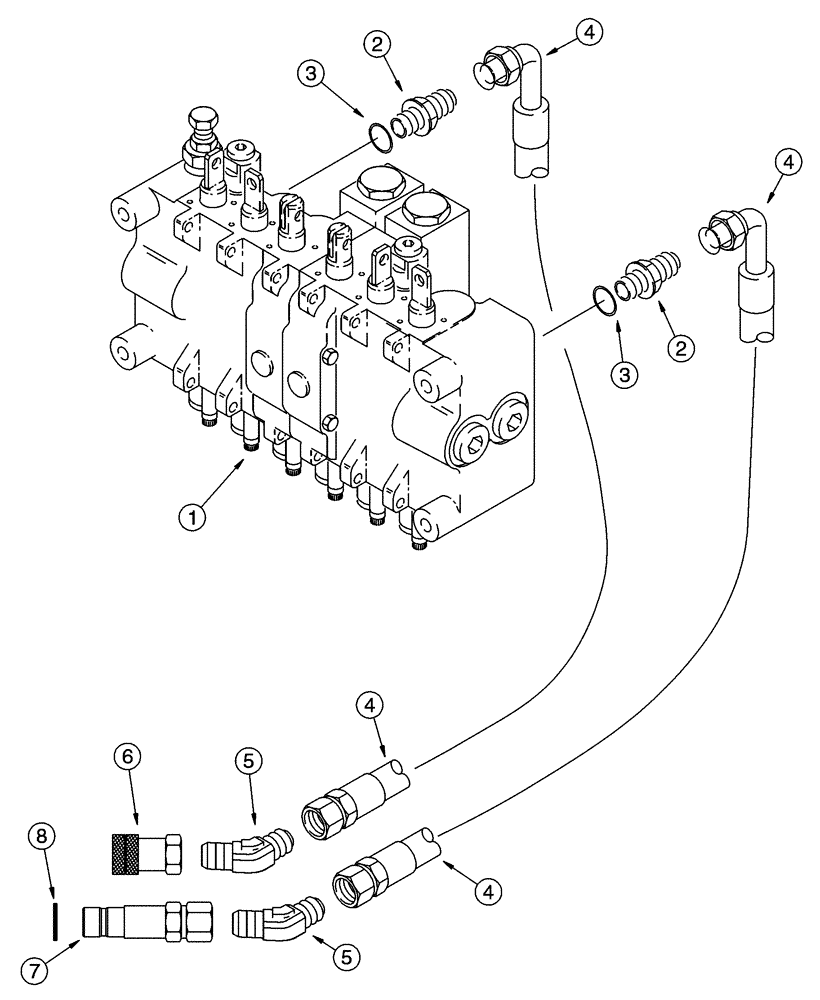

Схема запчастей Case 95XT - (08-51) - HYDRAULIC SYSTEM - BACKHOE SUPPLY & RETURN (NORTH AMERICA), D125 BACKHOE, IF USED (08) - HYDRAULICS
7
8
3
4
2
5
5
2
1
4
4
6
4
3

Артикул

Название

Примечание

Количество

1

H674500

VALVE

Backhoe, See Page(s) 8-217 - 8-227

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

254511A1

HOSE

2000 mm (78-3/4 in)

2шт.

5

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

2шт.

6

143431A1

COUPLING, QUICK, FEM

Female, See Page(s) 8-95

1шт.

7

238243A1

COUPLING, BREAK AWAY

Male, See Page(s) 8-95, Includes 8

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Order 185786A1

1шт.

185786A1

SET OF PARTS

Consists Of 8

1шт.

Выбрано товаров: 9
