Запчасти Case 95XT (08-49) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR, DRAIN LINES TO COUPLING (08) - HYDRAULICS

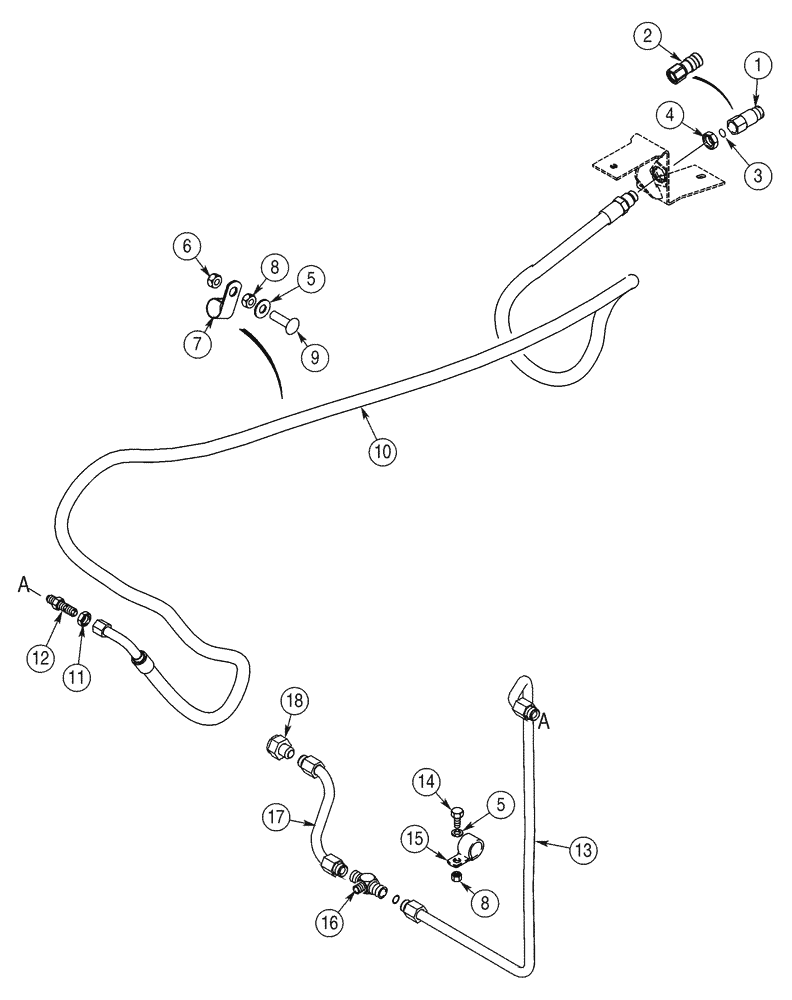

Схема запчастей Case 95XT - (08-49) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR, DRAIN LINES TO COUPLING (08) - HYDRAULICS
7
8
4
5
11
3
15
1
10
12
9
14
18
13
6
8
2
5
16
17

Артикул

Название

Примечание

Количество

1

393397A1

COUPLING

Male, Component Parts Not Serviced Separately, If Used

1шт.

2

436434A1

COUPLING, QUICK, FEM

Female, Component Parts Not Serviced Separately, If Used

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

7

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

8

832-41408

NUT,M8 x 1.25, Cl 10

M8

2шт.

9

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

1шт.

10

294187A1

HOSE

3250 mm (128 in), See Note

1шт.

11

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

12

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

1шт.

13

419408A1

TUBE

High Flow, Case Drain, Upper

1шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

15

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

16

218-1581

TEE,37º, 3/4"-16 x 7/16"-20, Br

For Attaching Parts, See Page 8-175, Ref. 23

1шт.

17

419406A1

TUBE

High Flow, Case Drain, Lower

1шт.

18

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

3/4 x 5/8

1шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.
