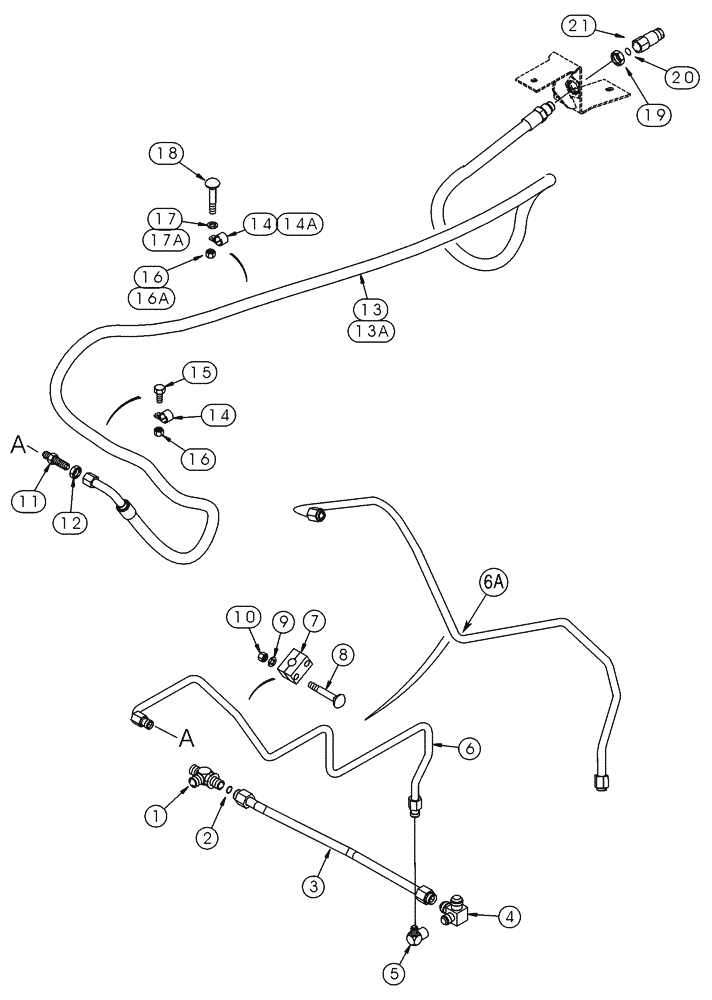

Запчасти Case 95XT (08-44) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR, DRAIN LINES TO COUPLING (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
218-5239
TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
1-1/16 fl x fl x Or, Includes 2, See Page(s) 6-17, Replaces REF 2
1шт.
2
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
3
254845A3
TUBE,526 mm Length
To Manifold, Replaces 254845A2
1шт.
4
252946A1
TEE
1шт.
5
218-5232
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw
1шт.
6
254430A4
TUBE
Replaces 254430A2, 254430A3, No Longer Available, Order 254430A5, REF 6A
1шт.
6a
254430A5
TUBE,15.88 mm OD, 899.87, 730.81 mm Length
1шт.
7
254830A1
CLAMP BRACKET
2 piece
1шт.
8
811-6060
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 60mm, Cl 8.8
6 x 60 mm
2шт.
9
895-15006
WASHER,6.6mm ID x 25mm OD x 1.6mm Thk
2шт.
10
832-41306
NUT,M6 x 1, Cl 10
2шт.
11
218-675
FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree
FIT STL BULKHD .625MJ .625MJ
1шт.
12
218-1251
BHD LOCK NUT,Blkhd, 7/8"-14
1шт.
13
226882A2
HOSE
3250 mm (128 in), 5/8 Inch ID, If Equipped, See Note
1шт.
13a
294187A1
HOSE
3250 mm (128 in), 1/2 Inch ID, If Equipped, See Note
1шт.
14
515-22254
CLAMP,1", Insul, 5/16" Bolt
Used with Ref 13, 226882A2
2шт.
14a
515-23190
CLAMP,3/4", Insul, 3/8" Bolt
Used with Ref. 13A, 294187A1
1шт.
15
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
Used with Ref 14, 515-22254
1шт.
16
832-41308
NUT,M8 x 1.25, Cl 10
Used with Ref 14, 515-22254
2шт.
16a
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
Used with Ref. 14A, 515-23190
1шт.
19
218-1256
BHD LOCK NUT,Blkhd, 1 1/16"-12
1шт.
20
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
21
122180A1
COUPLING, BREAK AWAY
Male, See Page(s) 8-95
1шт.
17a
895-15008
WASHER,9mm ID x 20mm OD x 1.6mm Thk
Used with Ref. 14A, 515-23190
1шт.
17
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
Used with Ref. 14, 515-22254
2шт.
Выбрано товаров: 26
